Toyota Hilux N80 (AN120/AN130) 2020 Full Vehicle 3D Scan
Full vehicle 3D scan of the 2020 Toyota Hilux N80 (AN120/AN130) (Double Cab), captured from a real vehicle. 39,157,546 measured triangles, STL format, a 1,958 MB download. Sold on Etsy for $80; the shop sends a download link after purchase.
Notes
- Dimensions in millimeters, measured from the file: its overall extent, length × width × height. The file is at 1:1 scale; units verified.
- Height 1,918 mm (75.5 in) includes the roof antenna; width 1,904 mm (74.9 in) is with the mirrors folded.

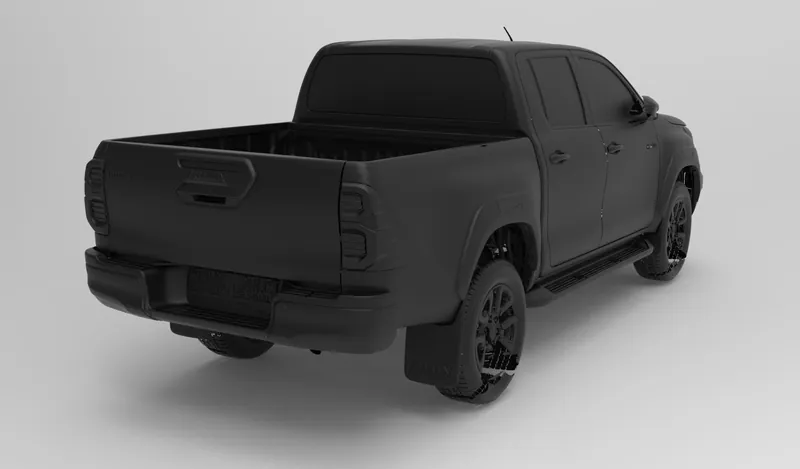

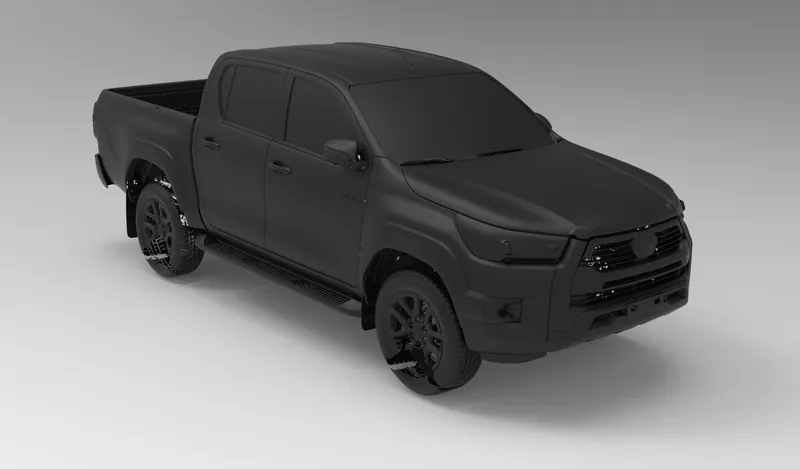

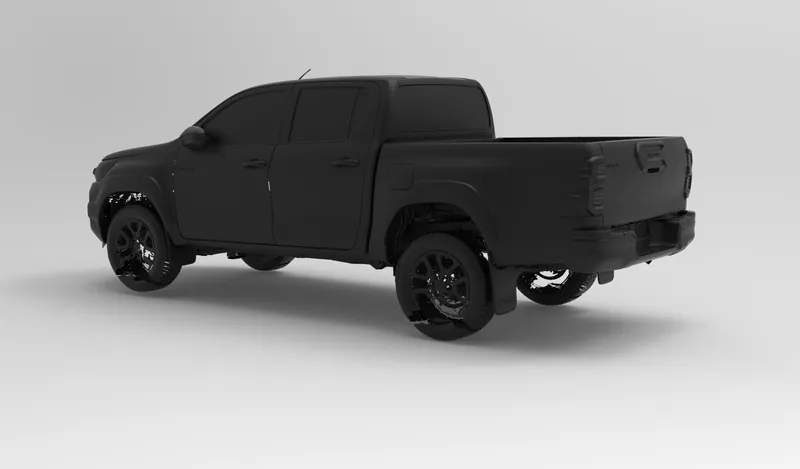

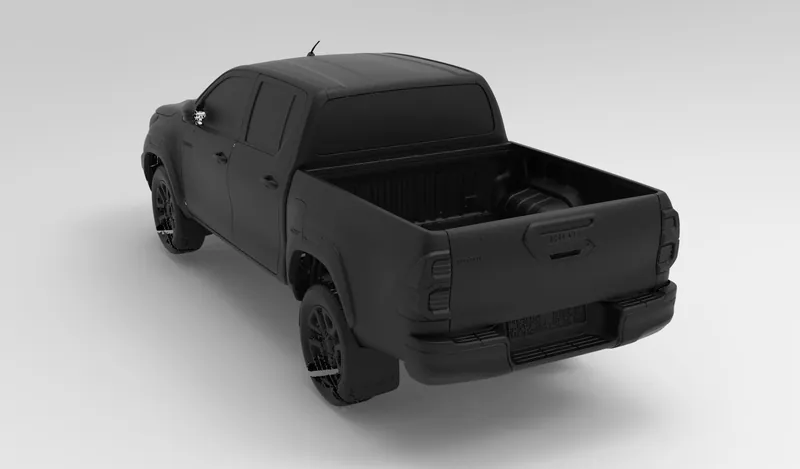

- View A and the other views are renders of the included file, not photos of a finished build. Not to scale.
- Delivered as STL, 1,958 MB: the shop sends a download link after purchase.
Specifications measured from the scan file
| Vehicle | Toyota Hilux N80 (AN120/AN130) |
|---|---|
| Scanned vehicle | Double Cab |
| Scanned model year | 2020 |
| What it is | Full vehicle 3D scan |
| Formats | STL |
| Triangles | 39,157,546 |
| Overall size (L × W × H) | 5,321 × 1,904 × 1,918 mm 209.5 × 74.9 × 75.5 in |
| Download size | 1,958 MB |
What the scan covers
In this file
- Exterior
- Underbody
- Wheels
- Spare wheel
- Bed
- Tailgate
- Mirrors
Not in this file
- The cabin interior is NOT scanned (no seats or dashboard; window openings are empty).
- The engine bay is not in this file: see the separate front and engine-compartment files of the same vehicle.
Complete exterior of a 2020 facelift Toyota Hilux double cab with wheels and the full underbody (frame, suspension, driveshafts, exhaust, fuel tank, spare wheel under the bed), tailgate closed, hood closed. The cabin interior is NOT scanned (no seats or dashboard; window openings are empty). The engine bay is not in this file: see the separate front and engine-compartment files of the same vehicle.
Files in the download
| File | Size | Measured extent, L × W × H, mm (in) | Triangles |
|---|---|---|---|
| Exterior, underbody, wheels, spare wheel (STL) | 1,958 MB | 5,321 × 1,904 × 1,918209.5 × 74.9 × 75.5 in | 39,157,546 |
Extents are length × width × height of each file as measured, in millimeters at 1:1 scale, with inches below.
Also sold as
The same body is sold under these names in other markets: Toyota Hilux Revo (Southeast Asia); Hilux AN120 / AN130.
What it is for
- Bumpers, racks and canopies
- Fitment checks before you cut metal
- Reverse engineering in CAD
Questions buyers ask
Is this a real 3D scan or a model made from photos?
It is a 3D scan of a real Toyota Hilux, so the surfaces are at true scale and can be measured. The images on this page are renders of the included file, not photos of a finished build. How to tell a real scan from a model made from photos.
Which file formats are included?
STL. STL opens in every major CAD and mesh tool. Which format your workflow needs: STL, STEP or OBJ.
What units is the file in?
Millimeters, at 1:1 scale. The overall size above was measured from the file itself.
Which model year was scanned?
A 2020 Toyota Hilux N80 (AN120/AN130). Check the body against your vehicle's generation code before you design to it. Toyota Hilux Generations by Market: Vigo, Revo and Which One You Have.
How do I get the files?
Buy it on Etsy. The files are larger than Etsy's 20 MB download limit, so the shop sends a download link after purchase; it is a straight browser download with no account needed.
More for the Toyota Hilux N80 (AN120/AN130)
2020 Tailgate 3D Scan
2020 Engine Bay and Front Structure 3D Scan
2020 Front End 3D Scan
2020 Bed and Rear End 3D Scan
Sizes and triangle counts are measured from the files (catalog of 2026-10-05). The images on this page are renders of the included file, not photos of a finished build. Questions: info@cadgaragepro.com.
