Toyota Hilux N80 (AN120/AN130) 2020 Engine Bay and Front Structure 3D Scan
Engine bay and front structure 3D scan of the 2020 Toyota Hilux N80 (AN120/AN130) (Double Cab), captured from a real vehicle. 8,035,626 measured triangles, STL format, a 402 MB download. Sold on Etsy for $45; the shop sends a download link after purchase.
Notes
- Dimensions in millimeters, measured from the file: its overall extent, length × width × height. The file is at 1:1 scale; units verified.

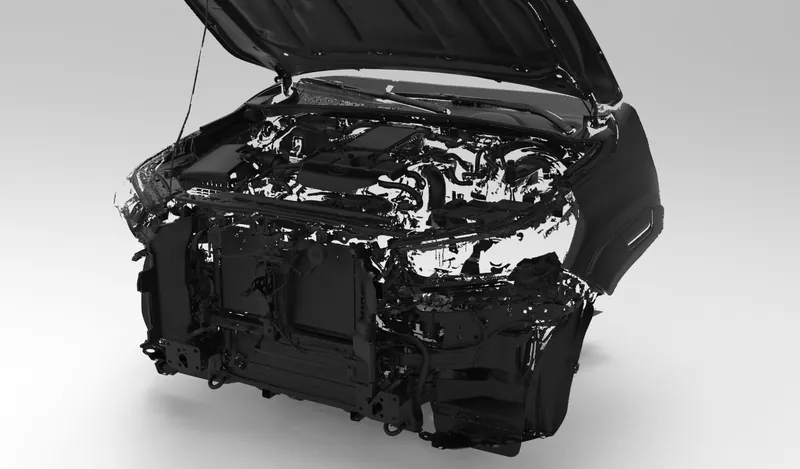

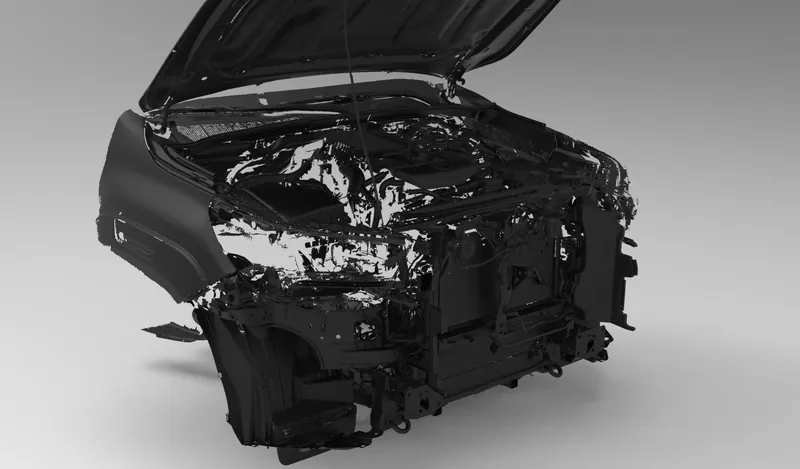

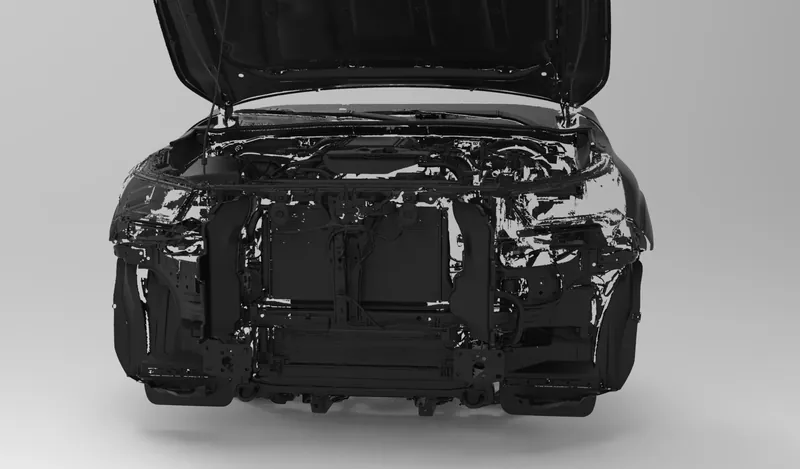

- View A and the other views are renders of the included file, not photos of a finished build. Not to scale.
- Delivered as STL, 402 MB: the shop sends a download link after purchase.
Specifications measured from the scan file
| Vehicle | Toyota Hilux N80 (AN120/AN130) |
|---|---|
| Scanned vehicle | Double Cab |
| Scanned model year | 2020 |
| What it is | Engine bay and front structure 3D scan |
| Formats | STL |
| Triangles | 8,035,626 |
| Overall size (L × W × H) | 1,894 × 1,816 × 1,650 mm 74.6 × 71.5 × 64.9 in |
| Download size | 402 MB |
What the scan covers
In this file
- Engine bay
- Front end
- Underbody
Not in this file
- Wheels and tires
- Bumper
- Crash carrier
- Cabin
Engine compartment of a 2020 facelift Toyota Hilux double cab with the hood open and the front bumper and crash carrier (bumper reinforcement bar) removed: engine with covers, radiator and cooling pack, inner fenders and shock towers, radiator support, front frame section, front suspension, front differential and CV axles, open hood (inner and outer face). NOT included: wheels and tires, bumper, crash carrier, cabin. 'Front interior' in the listing title means the engine compartment, not the cabin.
Files in the download
| File | Size | Measured extent, L × W × H, mm (in) | Triangles |
|---|---|---|---|
| Engine bay, front end, underbody (STL) | 402 MB | 1,894 × 1,816 × 1,65074.6 × 71.5 × 64.9 in | 8,035,626 |
Extents are length × width × height of each file as measured, in millimeters at 1:1 scale, with inches below.
Also sold as
The same body is sold under these names in other markets: Toyota Hilux Revo (Southeast Asia); Hilux AN120 / AN130.
What it is for
- Intake, battery and accessory mounts
- Front structure and crash-bar clearances
- Fitment checks before you cut metal
Questions buyers ask
Is this a real 3D scan or a model made from photos?
It is a 3D scan of a real Toyota Hilux, so the surfaces are at true scale and can be measured. The images on this page are renders of the included file, not photos of a finished build. How to tell a real scan from a model made from photos.
Which file formats are included?
STL. STL opens in every major CAD and mesh tool. Which format your workflow needs: STL, STEP or OBJ.
What units is the file in?
Millimeters, at 1:1 scale. The overall size above was measured from the file itself.
Which model year was scanned?
A 2020 Toyota Hilux N80 (AN120/AN130). Check the body against your vehicle's generation code before you design to it. Toyota Hilux Generations by Market: Vigo, Revo and Which One You Have.
How do I get the files?
Buy it on Etsy. The files are larger than Etsy's 20 MB download limit, so the shop sends a download link after purchase; it is a straight browser download with no account needed.
