Toyota Hilux N80 (AN120/AN130) 2020 Tailgate 3D Scan
Tailgate 3D scan of the 2020 Toyota Hilux N80 (AN120/AN130) (Double Cab), captured from a real vehicle. 1,521,721 measured triangles, STL format, a 76.1 MB download. Sold on Etsy for $30; the shop sends a download link after purchase.
Notes
- Dimensions in millimeters, measured from the file: its overall extent, length × width × height. The file is at 1:1 scale; units verified.
- View A and the other views are renders of the included file, not photos of a finished build. Not to scale.
- Delivered as STL, 76.1 MB: the shop sends a download link after purchase.
Specifications measured from the scan file
| Vehicle | Toyota Hilux N80 (AN120/AN130) |
|---|---|
| Scanned vehicle | Double Cab |
| Scanned model year | 2020 |
| What it is | Tailgate 3D scan |
| Formats | STL |
| Triangles | 1,521,721 |
| Overall size (L × W × H) | 1,697 × 805 × 558 mm 66.8 × 31.7 × 22.0 in |
| Download size | 76.1 MB |
What the scan covers
In this file
- Tailgate

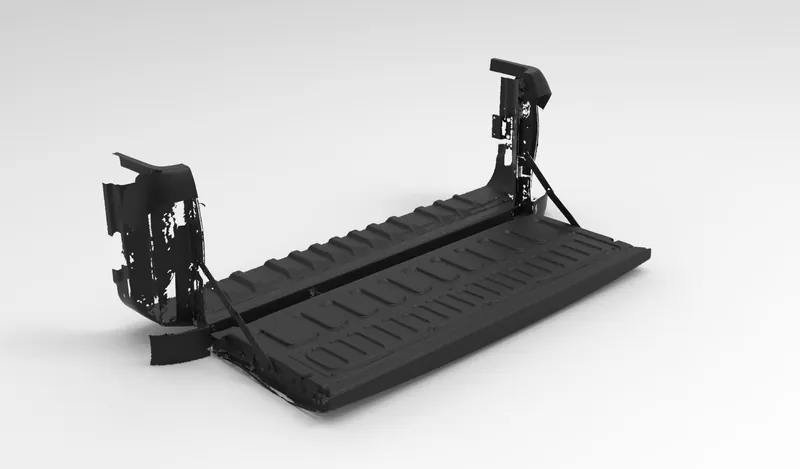

Tailgate of a 2020 facelift Toyota Hilux in the OPEN (folded-down) position: inner ribbed face and edges, hinges and support cables, plus the rear ends of both bed side walls with the tail-lamp housings and the rear edge of the bed floor. Nothing else of the vehicle.
Files in the download
| File | Size | Measured extent, L × W × H, mm (in) | Triangles |
|---|---|---|---|
| Tailgate (STL) | 76.1 MB | 1,697 × 805 × 55866.8 × 31.7 × 22.0 in | 1,521,721 |
Extents are length × width × height of each file as measured, in millimeters at 1:1 scale, with inches below.
Also sold as
The same body is sold under these names in other markets: Toyota Hilux Revo (Southeast Asia); Hilux AN120 / AN130.
What it is for
- Tailgate organizers, tables and liners
- Hinge and handle accessories
- Fitment checks before you cut metal
Questions buyers ask
Is this a real 3D scan or a model made from photos?
It is a 3D scan of a real Toyota Hilux, so the surfaces are at true scale and can be measured. The images on this page are renders of the included file, not photos of a finished build. How to tell a real scan from a model made from photos.
Which file formats are included?
STL. STL opens in every major CAD and mesh tool. Which format your workflow needs: STL, STEP or OBJ.
What units is the file in?
Millimeters, at 1:1 scale. The overall size above was measured from the file itself.
Which model year was scanned?
A 2020 Toyota Hilux N80 (AN120/AN130). Check the body against your vehicle's generation code before you design to it. Toyota Hilux Generations by Market: Vigo, Revo and Which One You Have.
How do I get the files?
Buy it on Etsy. The files are larger than Etsy's 20 MB download limit, so the shop sends a download link after purchase; it is a straight browser download with no account needed.
More for the Toyota Hilux N80 (AN120/AN130)
2020 Engine Bay and Front Structure 3D Scan
2020 Front End 3D Scan
2020 Bed and Rear End 3D Scan
2020 Full Vehicle 3D Scan
Sizes and triangle counts are measured from the files (catalog of 2026-10-05). The images on this page are renders of the included file, not photos of a finished build. Questions: info@cadgaragepro.com.
