Toyota Tacoma 3rd gen (N300) 2016-2023 Full Vehicle 3D Scan
Full vehicle 3D scan of the 2016-2023 Toyota Tacoma 3rd gen (N300) (TRD 2016), captured from a real vehicle. 38,354,051 measured triangles, OBJ, STL formats, a 1,898 MB download. Sold on Etsy for $95; the shop sends a download link after purchase.
Notes
- File 2: Width 2,157 mm (84.9 in) includes the mirrors.
- View A and the other views are renders of the included file, not photos of a finished build. Not to scale.
- 2 files in the download; each file's measured extent is in the files table.
- Delivered as OBJ, STL, 1,898 MB: the shop sends a download link after purchase.
Specifications measured from the scan file
| Vehicle | Toyota Tacoma 3rd gen (N300) |
|---|---|
| Scanned vehicle | TRD 2016 |
| Model years | 2016-2023 |
| What it is | Full vehicle 3D scan |
| Formats | OBJ, STL |
| Triangles (all files) | 38,354,051 |
| Overall size | per file, in the files table |
| Download size | 1,898 MB |
What the scan covers
In these files
- Frame
- Exterior
- Underbody
- Wheels
- Spare wheel
- Bed
- Tailgate
- Mirrors
Not in file 1
- Body
- Axles
- Suspension arms
- Drivetrain

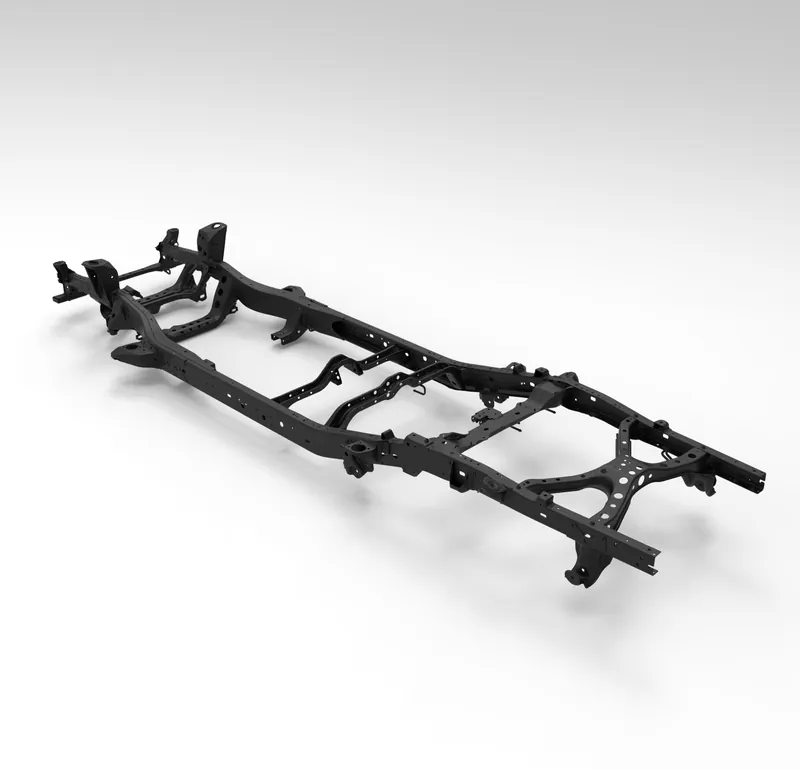

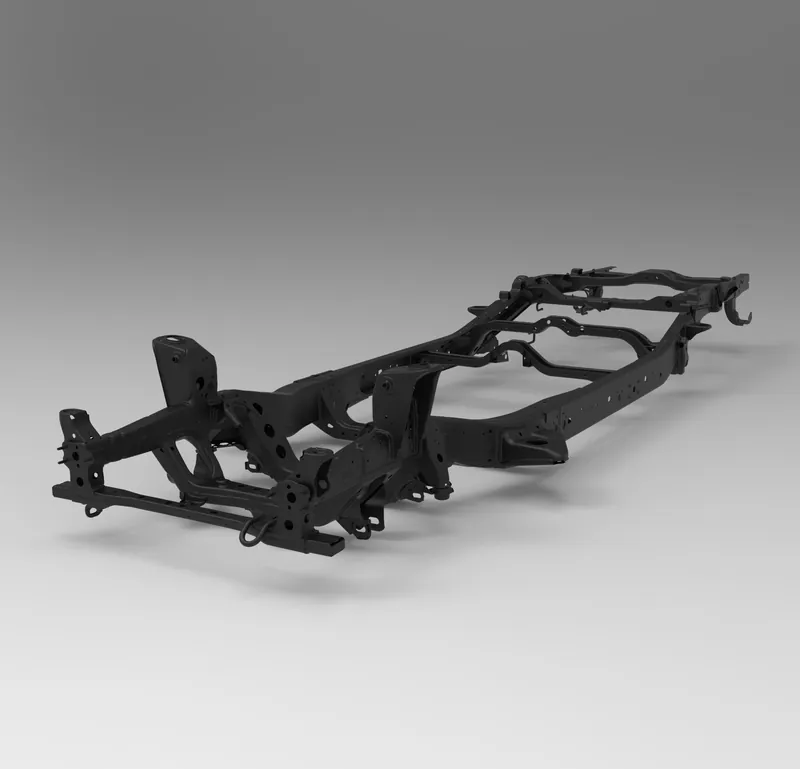

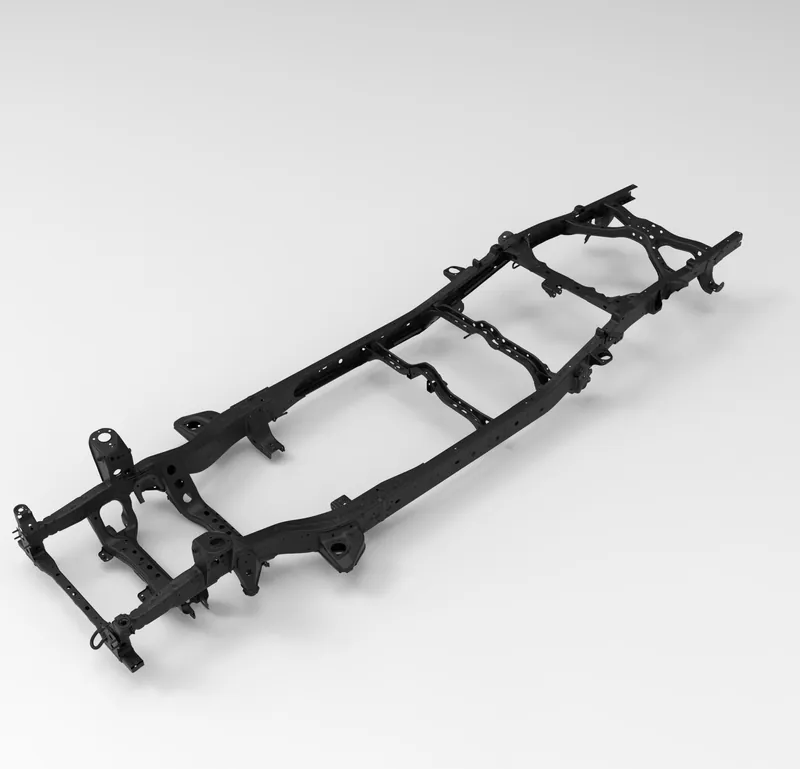

File 1: Bare ladder frame of a 2016 Toyota Tacoma (OBJ): full-length frame rails with all crossmembers, front suspension crossmember with upper and lower control-arm and coil-spring mounts, rear X-shaped crossmember, leaf-spring hangers, body-mount brackets, hitch and bumper brackets. NOT included: body, axles, suspension arms, drivetrain. 4,937 × 1,534 × 585 mm (194.4 × 60.4 × 23.0 in).

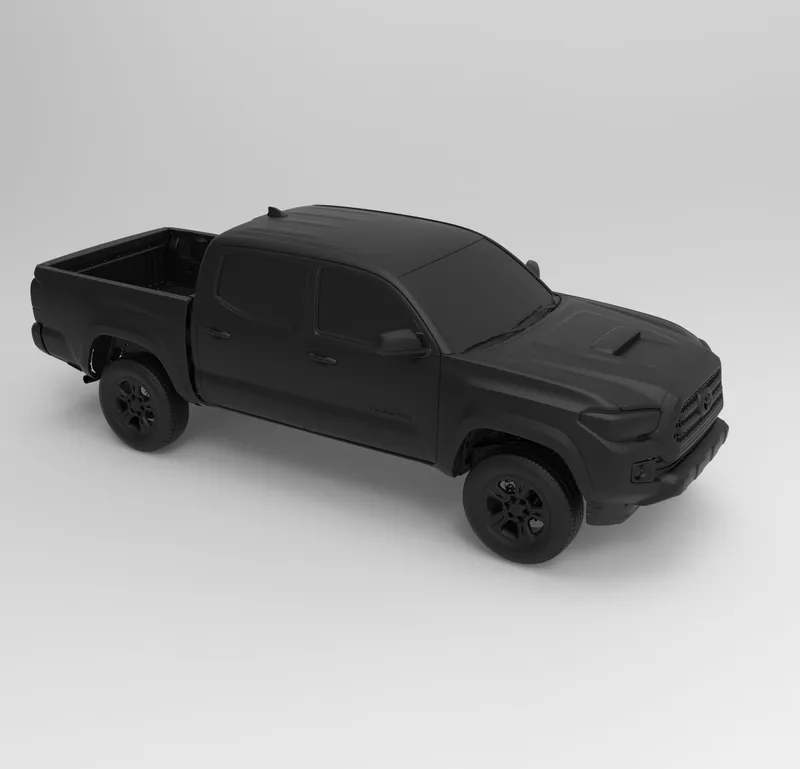

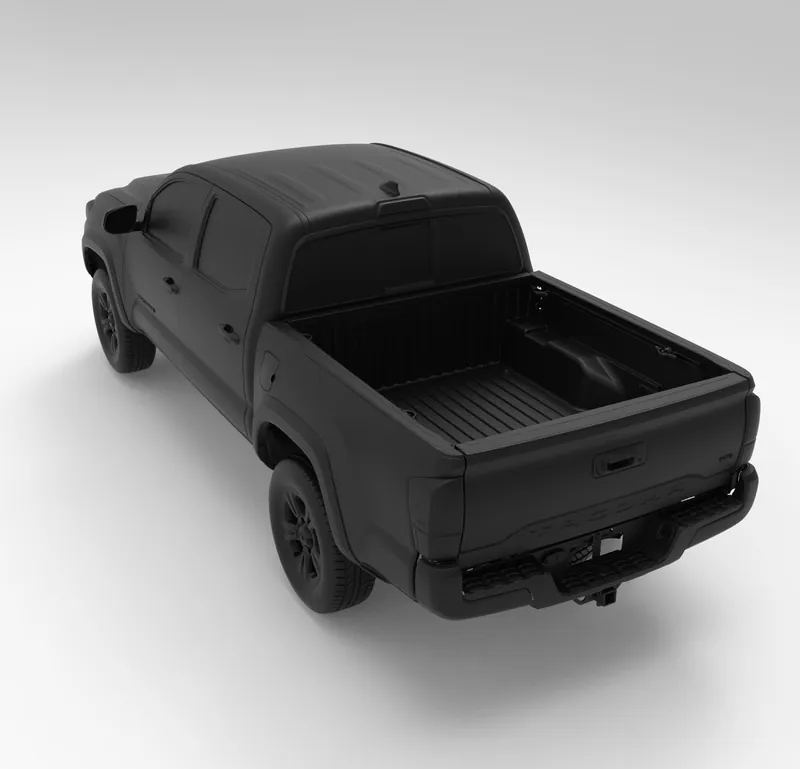

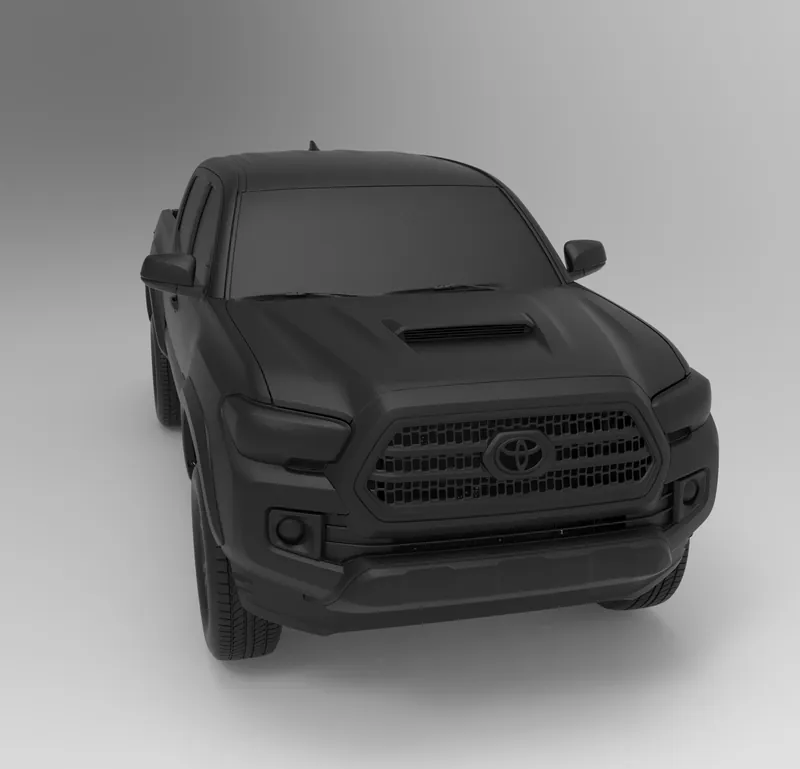

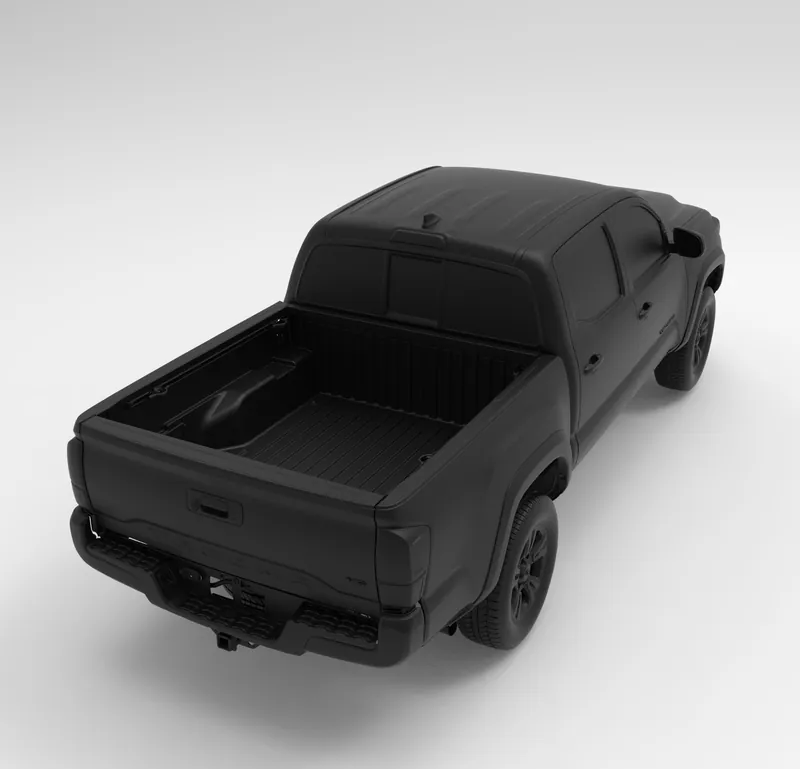

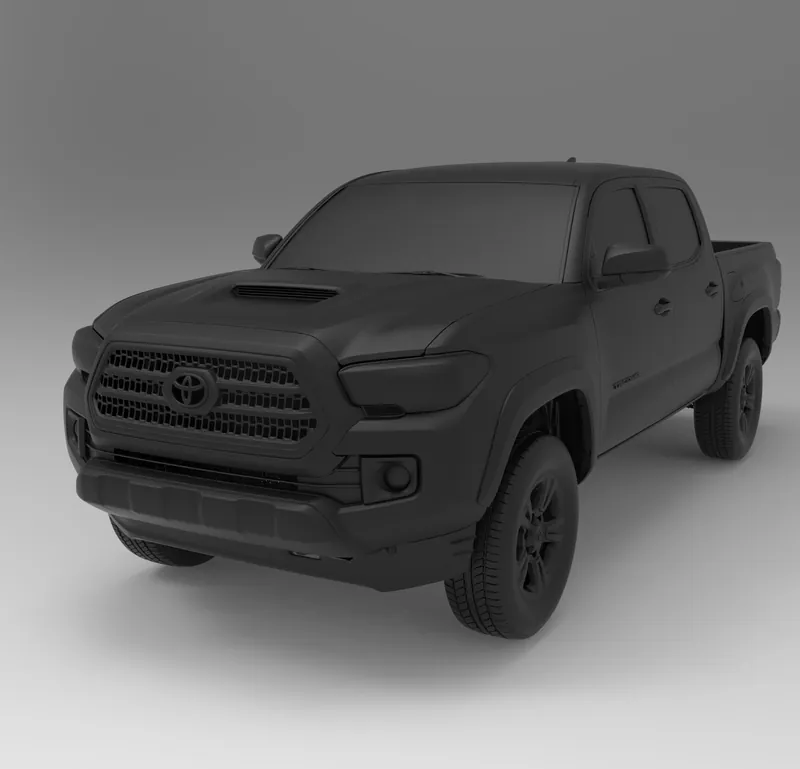

File 2: Complete 2016 Toyota Tacoma TRD double cab with wheels: exterior, bed with tailgate closed, underbody (frame, axles, driveshaft, exhaust, spare wheel under the bed), front end with radiator and engine bay partly captured through the grille. The cabin interior is only sparsely captured through the windows (door inner panels and a rough rear-seat block); seats and dashboard have no usable detail.
Files in the download
| File | Size | Measured extent, L × W × H, mm (in) | Triangles |
|---|---|---|---|
| File 1: Frame (OBJ) | 143 MB | 4,937 × 1,534 × 585194.4 × 60.4 × 23.0 in | 3,254,395 |
| File 2: Exterior, underbody, wheels, spare wheel (STL) | 1,755 MB | 5,391 × 2,157 × 1,849212.2 × 84.9 × 72.8 in | 35,099,656 |
Extents are length × width × height of each file as measured, in millimeters at 1:1 scale, with inches below.
What it is for
- Bumpers, racks and canopies
- Fitment checks before you cut metal
- Reverse engineering in CAD
Questions buyers ask
Is this a real 3D scan or a model made from photos?
It is a 3D scan of a real Toyota Tacoma, so the surfaces are at true scale and can be measured. The images on this page are renders of the included file, not photos of a finished build. How to tell a real scan from a model made from photos.
Which file formats are included?
OBJ, STL. STL opens in every major CAD and mesh tool. Which format your workflow needs: STL, STEP or OBJ.
Which model years does it fit?
The Toyota Tacoma 3rd gen (N300) for model years 2016-2023. Model years differ between markets for some vehicles; check the generation code if you are outside the market the vehicle was scanned in.
How do I get the files?
Buy it on Etsy. The files are larger than Etsy's 20 MB download limit, so the shop sends a download link after purchase; it is a straight browser download with no account needed.
Sizes and triangle counts are measured from the files (catalog of 2026-10-05). The images on this page are renders of the included file, not photos of a finished build. Questions: info@cadgaragepro.com.
