Toyota Hilux N80 (AN120/AN130) 2020 Bed and Rear End 3D Scan
Bed and rear end 3D scan of the 2020 Toyota Hilux N80 (AN120/AN130) (Double Cab), captured from a real vehicle. 18,118,289 measured triangles, OBJ, STL formats, a 1,758 MB download. Sold on Etsy for $45; the shop sends a download link after purchase.
Notes

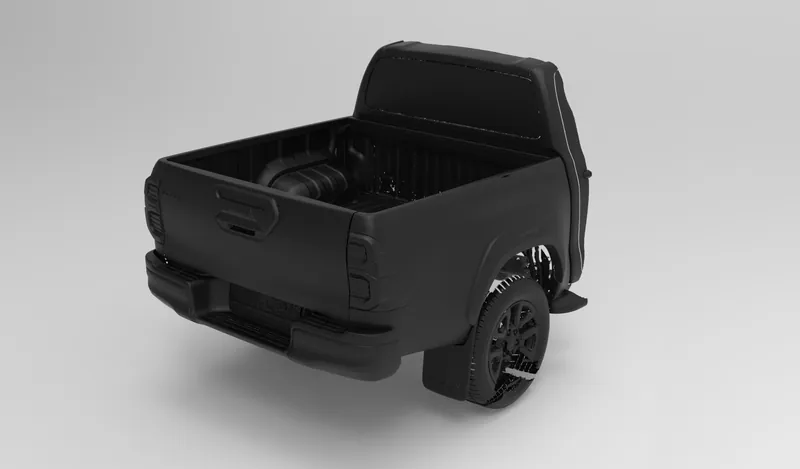

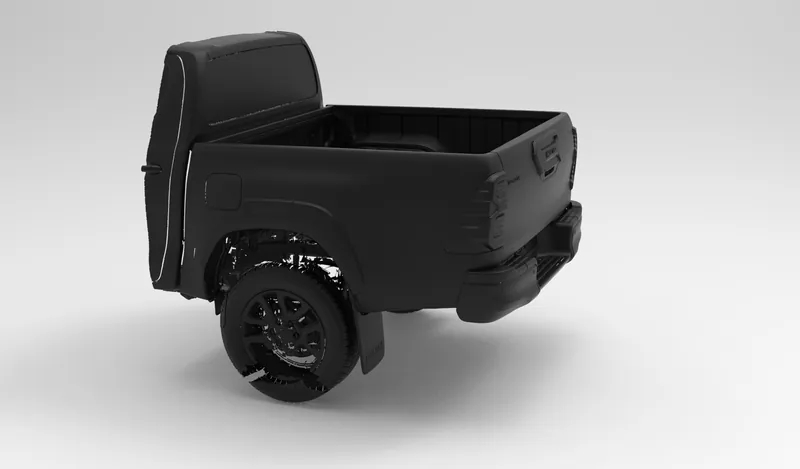

- View A and the other views are renders of the included file, not photos of a finished build. Not to scale.
- Delivered as OBJ, STL, 1,758 MB: the shop sends a download link after purchase.
Specifications measured from the scan file
| Vehicle | Toyota Hilux N80 (AN120/AN130) |
|---|---|
| Scanned vehicle | Double Cab |
| Scanned model year | 2020 |
| What it is | Bed and rear end 3D scan |
| Formats | OBJ, STL |
| Triangles | 18,118,289 |
| Overall size | per file, in the files table |
| Download size | 1,758 MB |
What the scan covers
In these files
- Rear end
- Bed
- Tailgate
- Wheels
- Spare wheel
- Underbody
Not in file 2
- Cabin interior
- Anything forward of the rear doors
File 2: Rear section of a 2020 facelift Toyota Hilux double cab: complete bed inside and out (ribbed floor, inner wheel arches), tailgate CLOSED, rear bumper, tail lamps, rear wheels and tires, rear axle with leaf springs, spare wheel under the bed, rear frame section and exhaust tail, plus the cab back panel with the rear window and the roof's rear edge. NOT included: cabin interior, anything forward of the rear doors.
Files in the download
| File | Size | Measured extent, L × W × H, mm (in) | Triangles |
|---|---|---|---|
| File 1: Bed and rear end 3D scan (OBJ) | 852 MB | not measured yet | not measured yet |
| File 2: Rear end, bed, tailgate, wheels (STL) | 906 MB | 2,052 × 1,904 × 1,84880.8 × 74.9 × 72.8 in | 18,118,289 |
Extents are length × width × height of each file as measured, in millimeters at 1:1 scale, with inches below.
Also sold as
The same body is sold under these names in other markets: Toyota Hilux Revo (Southeast Asia); Hilux AN120 / AN130.
What it is for
- Rear bumpers and tow mounts
- Tailgate and bed accessories
- Fitment checks before you cut metal
Questions buyers ask
Is this a real 3D scan or a model made from photos?
It is a 3D scan of a real Toyota Hilux, so the surfaces are at true scale and can be measured. The images on this page are renders of the included file, not photos of a finished build. How to tell a real scan from a model made from photos.
Which file formats are included?
OBJ, STL. STL opens in every major CAD and mesh tool. Which format your workflow needs: STL, STEP or OBJ.
Which model year was scanned?
A 2020 Toyota Hilux N80 (AN120/AN130). Check the body against your vehicle's generation code before you design to it. Toyota Hilux Generations by Market: Vigo, Revo and Which One You Have.
How do I get the files?
Buy it on Etsy. The files are larger than Etsy's 20 MB download limit, so the shop sends a download link after purchase; it is a straight browser download with no account needed.
