Toyota Hilux N80 (AN120/AN130) 2020 Front End 3D Scan
Front end 3D scan of the 2020 Toyota Hilux N80 (AN120/AN130) (Double Cab), captured from a real vehicle. 16,060,104 measured triangles, STL format, an 803 MB download. Sold on Etsy for $40; the shop sends a download link after purchase.
Notes
- Dimensions in millimeters, measured from the file: its overall extent, length × width × height. The file is at 1:1 scale; units verified.

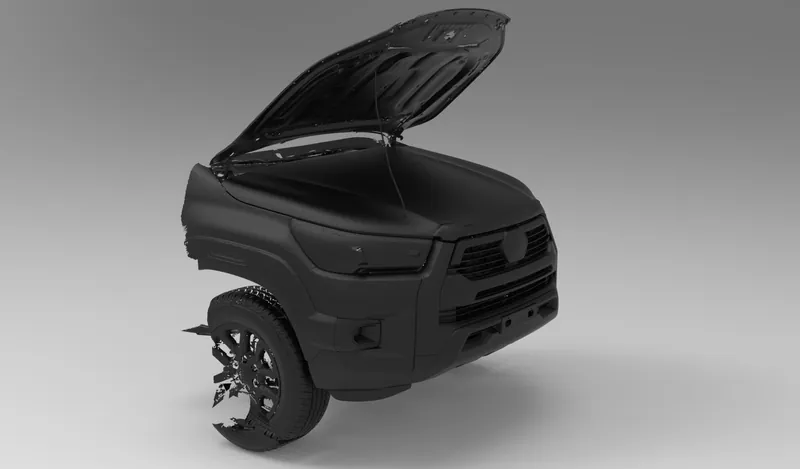

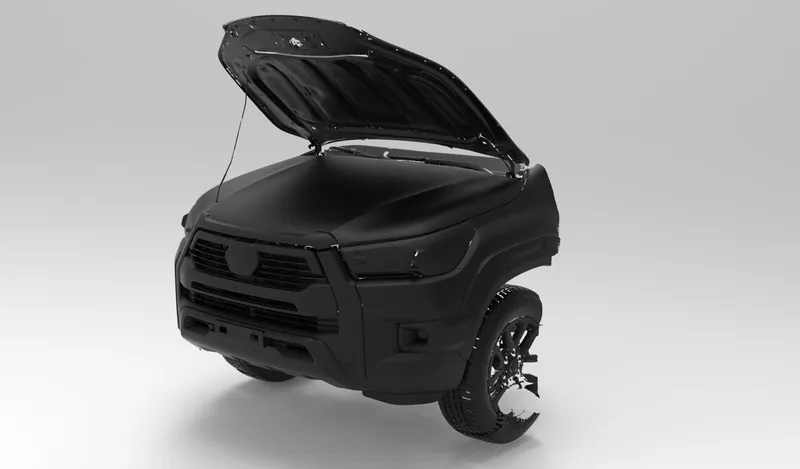

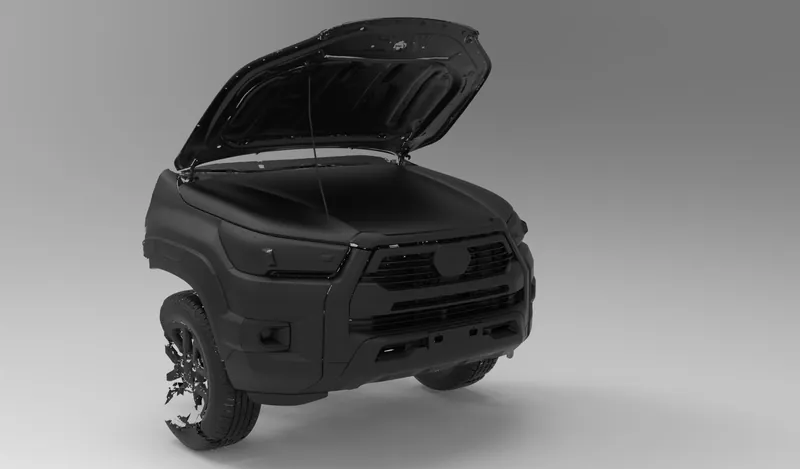

- View A and the other views are renders of the included file, not photos of a finished build. Not to scale.
- Delivered as STL, 803 MB: the shop sends a download link after purchase.
Specifications measured from the scan file
| Vehicle | Toyota Hilux N80 (AN120/AN130) |
|---|---|
| Scanned vehicle | Double Cab |
| Scanned model year | 2020 |
| What it is | Front end 3D scan |
| Formats | STL |
| Triangles | 16,060,104 |
| Overall size (L × W × H) | 2,062 × 1,895 × 1,718 mm 81.2 × 74.6 × 67.7 in |
| Download size | 803 MB |
What the scan covers
In this file
- Front end
- Engine bay
- Wheels
- Underbody
Not in this file
- Cabin
- Interior
- Anything behind the front doors' leading edge
Front section of a 2020 facelift Toyota Hilux double cab from the front bumper back to the firewall and A-pillar base: bumper, grille, headlights, front fenders, hood OPEN (inner and outer face), complete engine bay with engine, radiator and ancillaries, front wheels and tires, front suspension, front part of the frame and the front driveshafts. NOT included: cabin, interior, anything behind the front doors' leading edge.
Files in the download
| File | Size | Measured extent, L × W × H, mm (in) | Triangles |
|---|---|---|---|
| Front end, engine bay, wheels, underbody (STL) | 803 MB | 2,062 × 1,895 × 1,71881.2 × 74.6 × 67.7 in | 16,060,104 |
Extents are length × width × height of each file as measured, in millimeters at 1:1 scale, with inches below.
Also sold as
The same body is sold under these names in other markets: Toyota Hilux Revo (Southeast Asia); Hilux AN120 / AN130.
What it is for
- Front bumpers and bull bars
- Winch mounts and skid plates
- Fitment checks before you cut metal
Questions buyers ask
Is this a real 3D scan or a model made from photos?
It is a 3D scan of a real Toyota Hilux, so the surfaces are at true scale and can be measured. The images on this page are renders of the included file, not photos of a finished build. How to tell a real scan from a model made from photos.
Which file formats are included?
STL. STL opens in every major CAD and mesh tool. Which format your workflow needs: STL, STEP or OBJ.
What units is the file in?
Millimeters, at 1:1 scale. The overall size above was measured from the file itself.
Which model year was scanned?
A 2020 Toyota Hilux N80 (AN120/AN130). Check the body against your vehicle's generation code before you design to it. Toyota Hilux Generations by Market: Vigo, Revo and Which One You Have.
How do I get the files?
Buy it on Etsy. The files are larger than Etsy's 20 MB download limit, so the shop sends a download link after purchase; it is a straight browser download with no account needed.
