Jeep Gladiator JT Full Vehicle 3D Scan
Full vehicle 3D scan of the Jeep Gladiator JT (Rubicon), captured from a real vehicle. 21,880,619 measured triangles, STL format, a 1,094 MB download. Sold on Etsy for $90; the shop sends a download link after purchase.
Notes
- Dimensions in millimeters, measured from the file: its overall extent, length × width × height. The file is at 1:1 scale; units verified.
- Height 2,039 mm (80.3 in) and width 2,033 mm (80.0 in) as scanned (mirrors folded in the width).

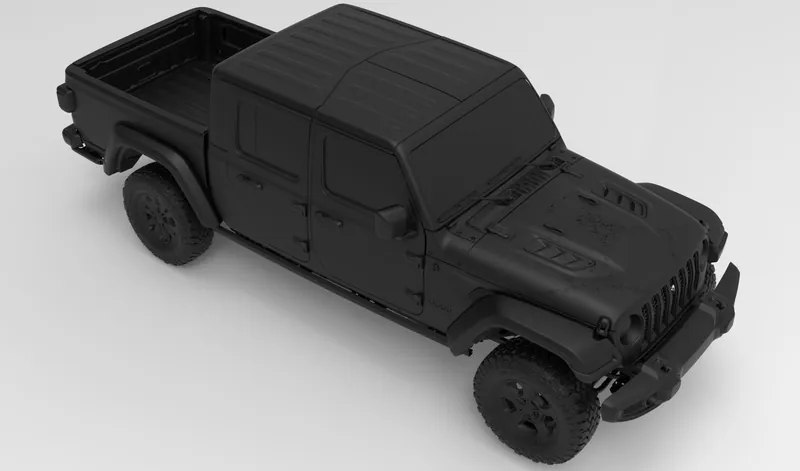

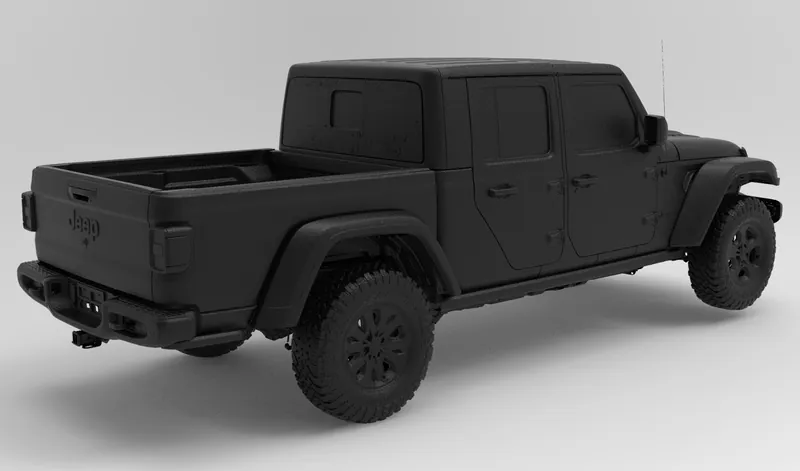

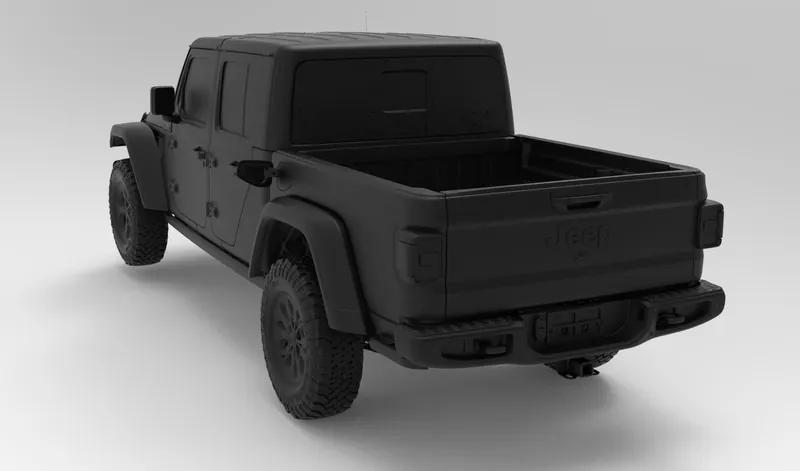

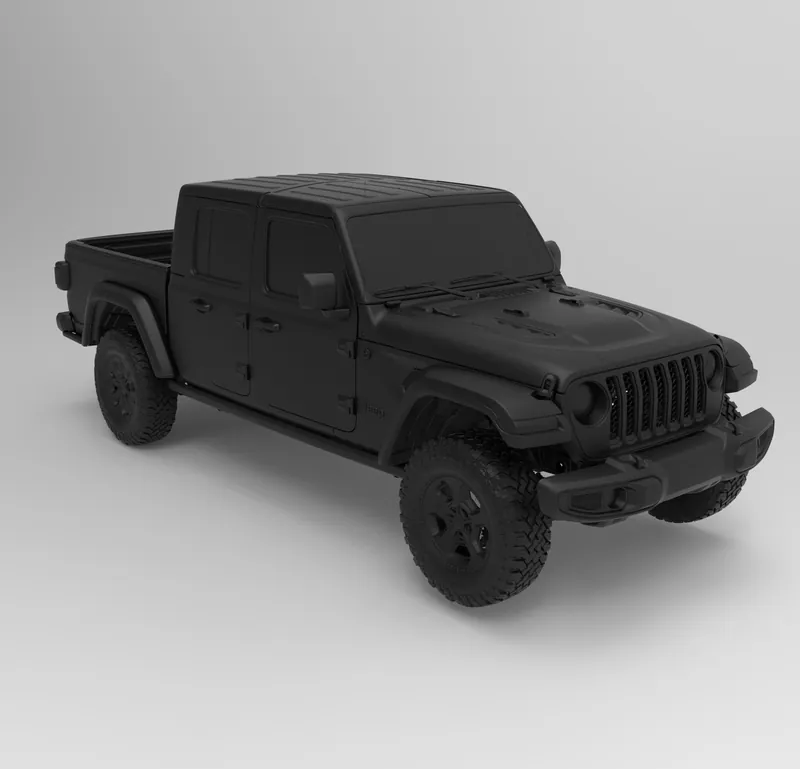

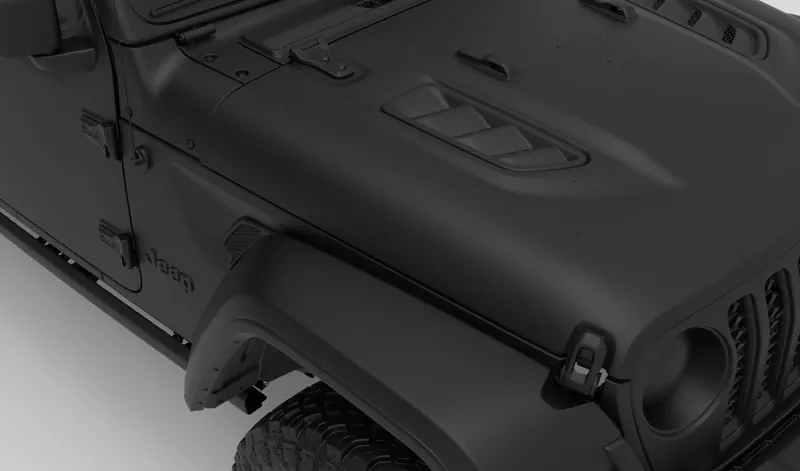

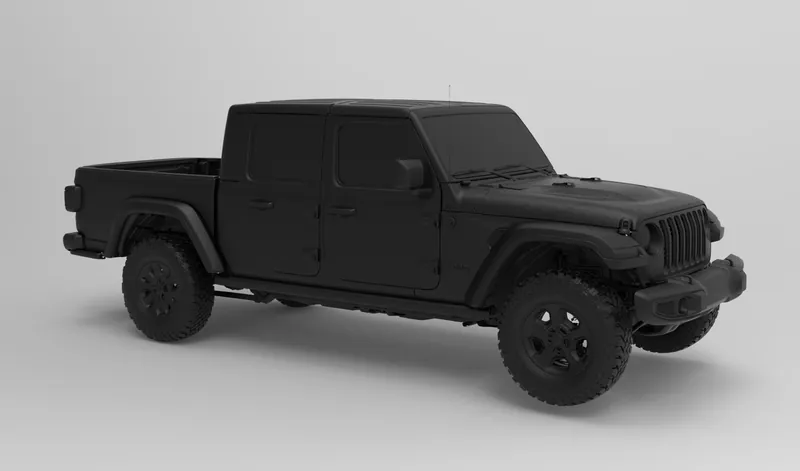

- View A and the other views are renders of the included file, not photos of a finished build. Not to scale.
- Delivered as STL, 1,094 MB: the shop sends a download link after purchase.
Specifications measured from the scan file
| Vehicle | Jeep Gladiator JT |
|---|---|
| Scanned vehicle | Rubicon |
| What it is | Full vehicle 3D scan |
| Formats | STL |
| Triangles | 21,880,619 |
| Overall size (L × W × H) | 5,529 × 2,033 × 2,039 mm 217.7 × 80.0 × 80.3 in |
| Download size | 1,094 MB |
What the scan covers
In this file
- Exterior
- Cabin interior
- Underbody
- Wheels
- Spare wheel
- Bed
- Tailgate
- Hardtop
- Doors
- Mirrors

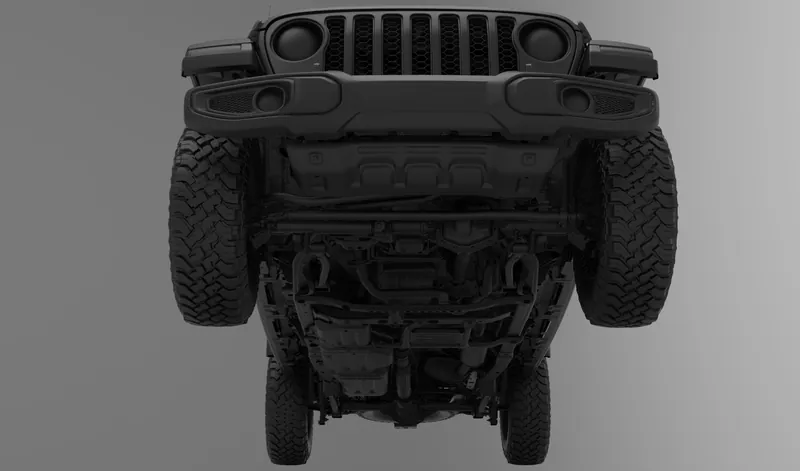

Complete 2020 Jeep Gladiator Rubicon JT with wheels, doors and hardtop: exterior, full cabin interior (dashboard, front seats, rear bench, center console), bed with tailgate, underbody (frame, front and rear axles, driveshafts, exhaust, spare wheel under the bed). Hood closed: engine bay only partly visible through the grille.
Files in the download
| File | Size | Measured extent, L × W × H, mm (in) | Triangles |
|---|---|---|---|
| Exterior, cabin interior, underbody, wheels (STL) | 1,094 MB | 5,529 × 2,033 × 2,039217.7 × 80.0 × 80.3 in | 21,880,619 |
Extents are length × width × height of each file as measured, in millimeters at 1:1 scale, with inches below.
What it is for
- Bumpers, racks and canopies
- Fitment checks before you cut metal
- Reverse engineering in CAD
Questions buyers ask
Is this a real 3D scan or a model made from photos?
It is a 3D scan of a real Jeep Gladiator, so the surfaces are at true scale and can be measured. The images on this page are renders of the included file, not photos of a finished build. How to tell a real scan from a model made from photos.
Which file formats are included?
STL. STL opens in every major CAD and mesh tool. Which format your workflow needs: STL, STEP or OBJ.
What units is the file in?
Millimeters, at 1:1 scale. The overall size above was measured from the file itself.
How do I get the files?
Buy it on Etsy. The files are larger than Etsy's 20 MB download limit, so the shop sends a download link after purchase; it is a straight browser download with no account needed.
Sizes and triangle counts are measured from the files (catalog of 2026-10-05). The images on this page are renders of the included file, not photos of a finished build. Questions: info@cadgaragepro.com.
