Ford Ranger T6 PX MkII Full Vehicle 3D Scan (STL)
Full vehicle 3D scan of the Ford Ranger T6 PX MkII (Wildtrak Double Cab, left-hand drive), captured from a real vehicle. 23,717,530 measured triangles, STL format, a 1,186 MB download. Sold on Etsy for $80; the shop sends a download link after purchase.
Notes
- Dimensions in millimeters, measured from the file: its overall extent, length × width × height. The file is at 1:1 scale.
- Width 2,187 mm (86.1 in) includes both mirrors.

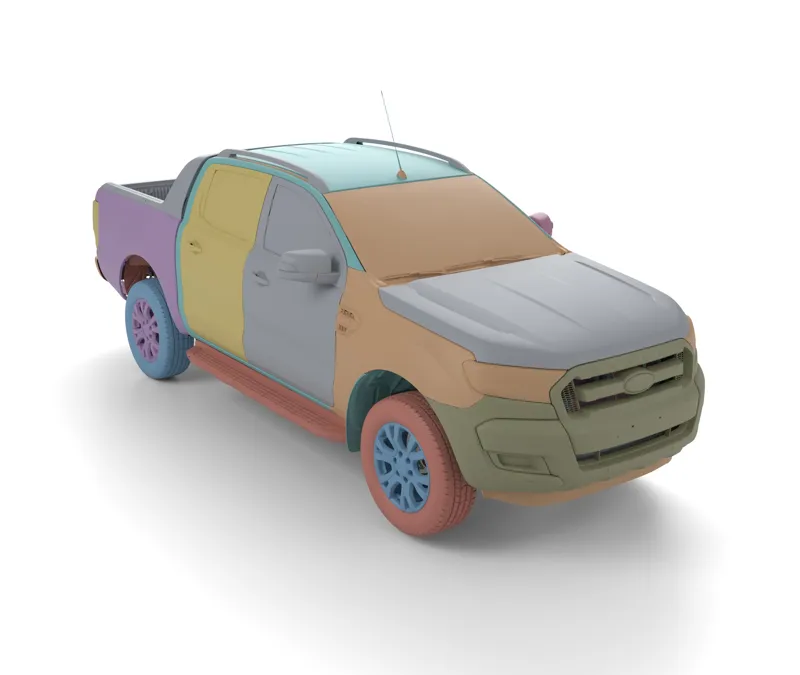

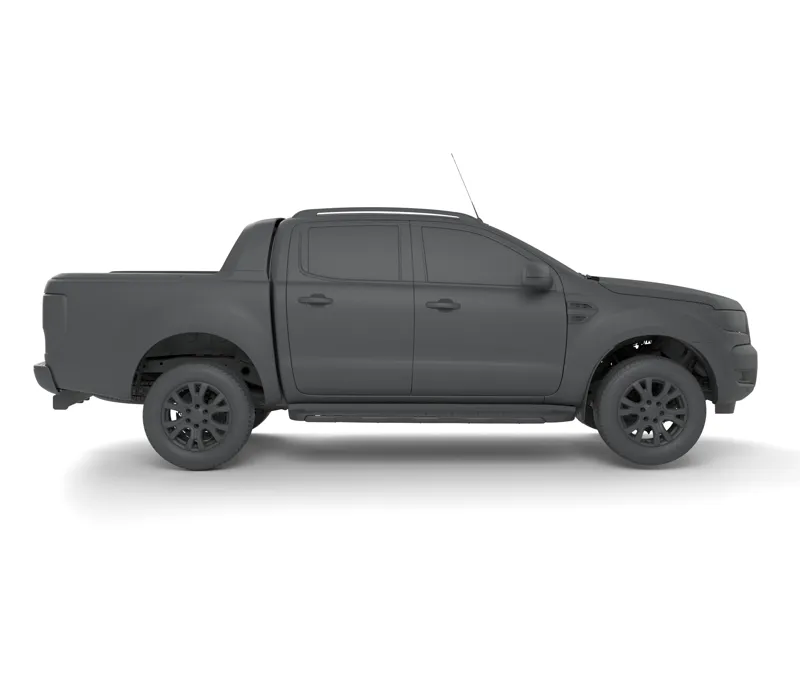

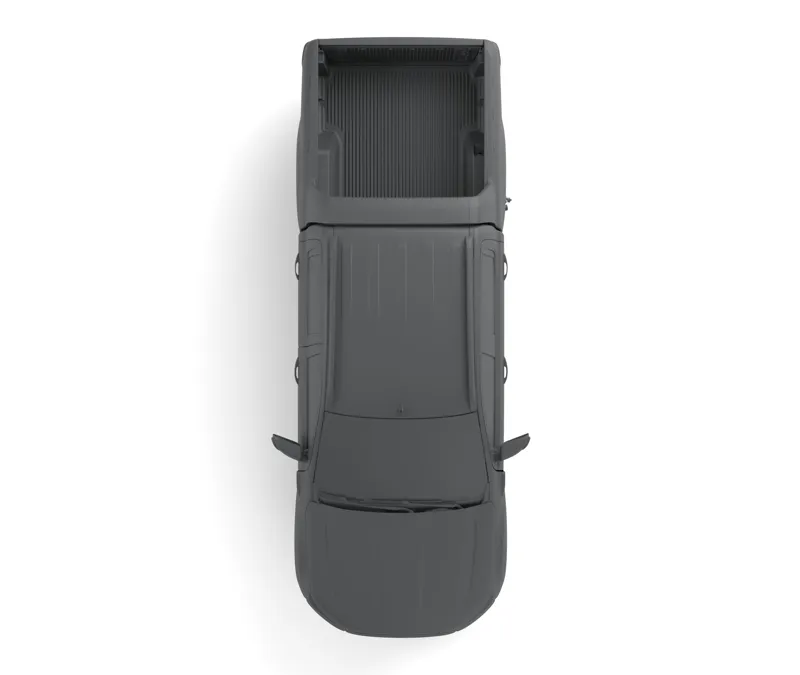

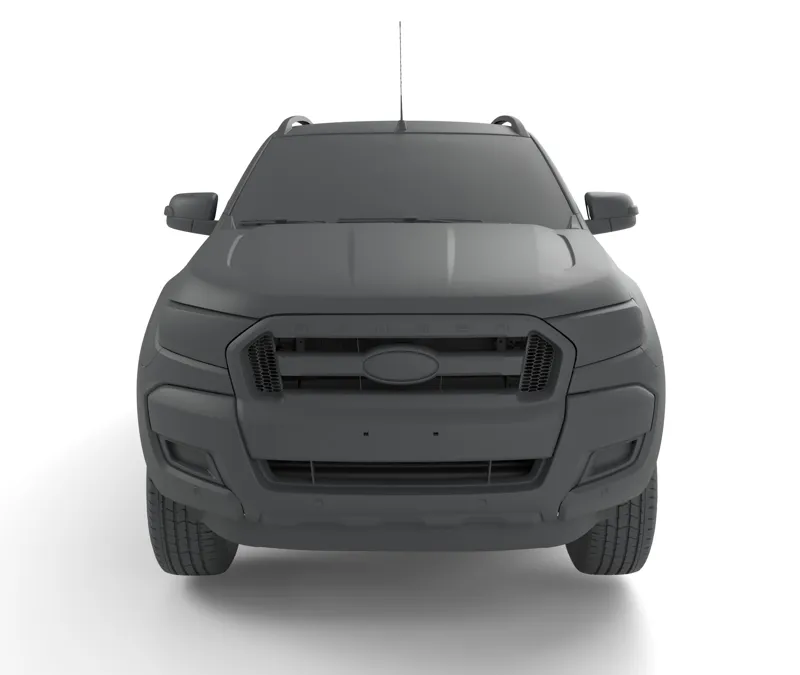

- View A and the other views are renders of the included file, not photos of a finished build. Not to scale.
- Delivered as STL, 1,186 MB: the shop sends a download link after purchase.
Specifications measured from the scan file
| Vehicle | Ford Ranger T6 PX MkII |
|---|---|
| Scanned vehicle | Wildtrak Double Cab, left-hand drive |
| What it is | Full vehicle 3D scan |
| Formats | STL |
| Triangles | 23,717,530 |
| Overall size (L × W × H) | 5,432 × 2,187 × 2,320 mm 213.9 × 86.1 × 91.3 in |
| Frame included | Yes |
| Download size | 1,186 MB |
What the scan covers
In this file
- Exterior

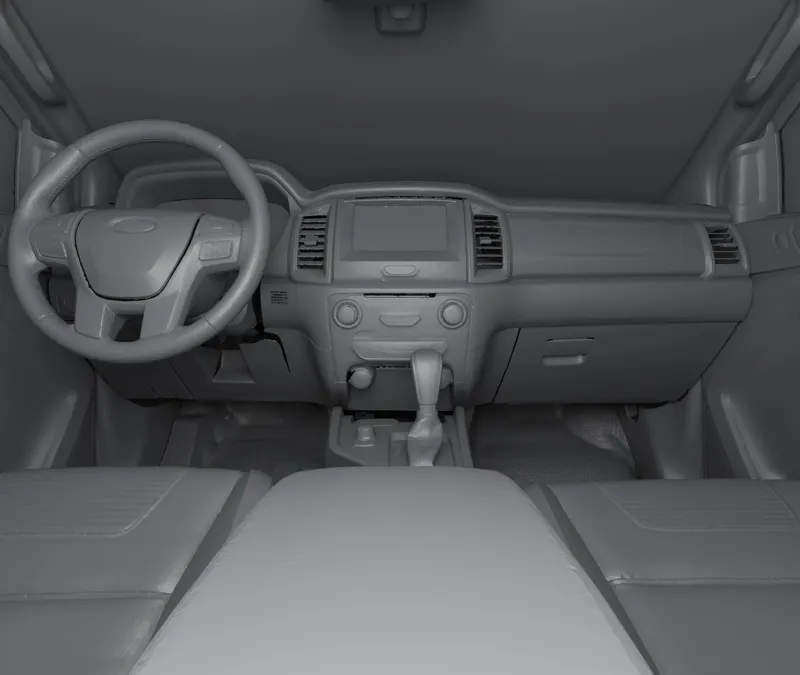

- Cabin interior

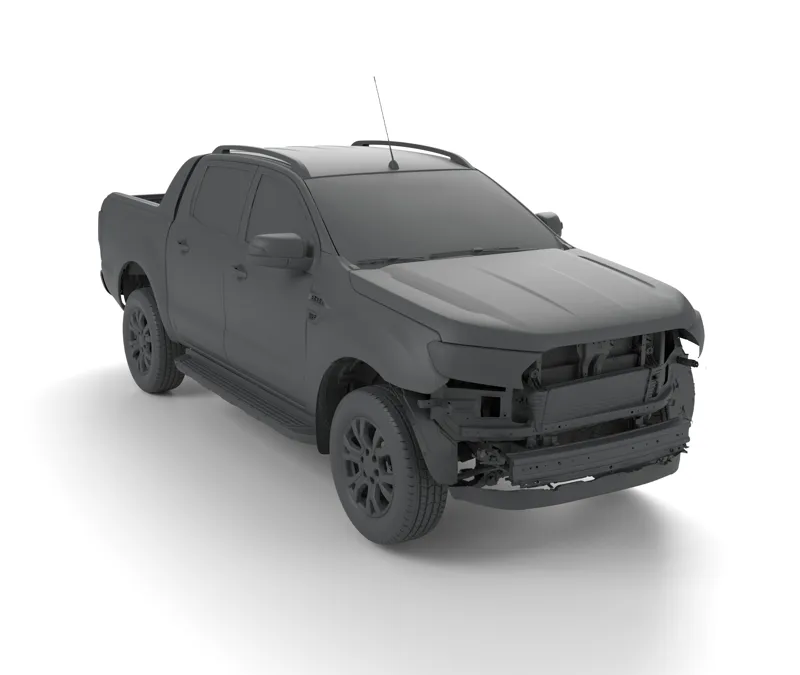

- Engine bay

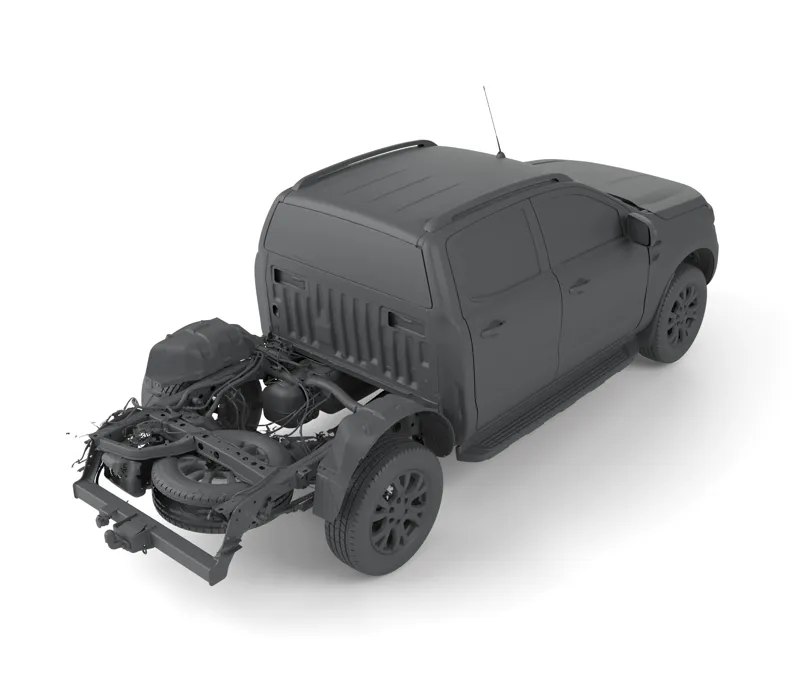

- Underbody
- Wheels

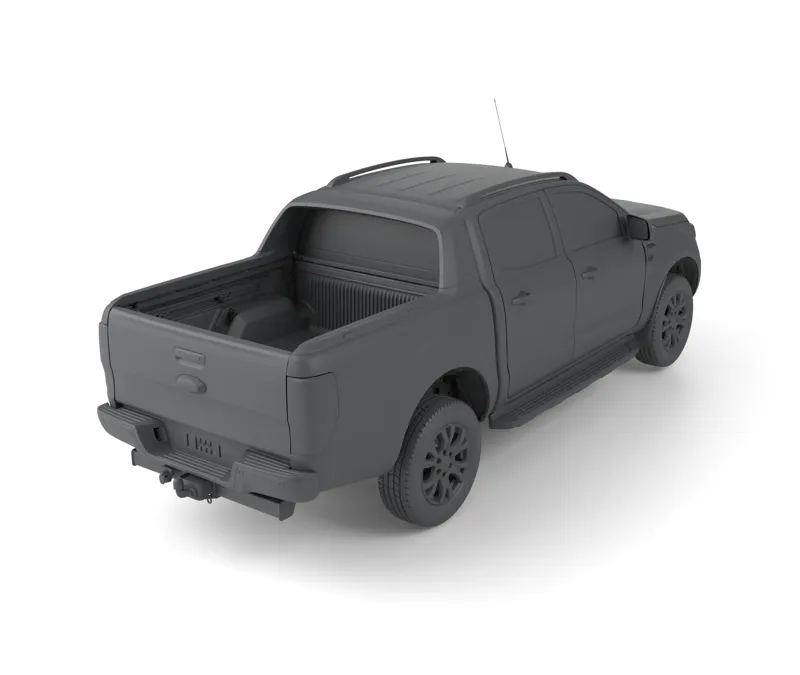

- Bed
Complete Ford Ranger PX MkII Wildtrak double cab, left-hand drive, automatic, with roof rails and sports bar: exterior, full cabin interior with dashboard, engine bay, underbody and tub.
Files in the download
| File | Size | Measured extent, L × W × H, mm (in) | Triangles |
|---|---|---|---|
| Exterior, cabin interior, engine bay, underbody (STL) | 1,186 MB | 5,432 × 2,187 × 2,320213.9 × 86.1 × 91.3 in | 23,717,530 |
Extents are length × width × height of each file as measured, in millimeters at 1:1 scale, with inches below.
What it is for
- Bumpers, with the frame and suspension in the file
- Trays, canopies and bed racks
- Rock sliders, skid plates and underbody armour
- Consoles, panels and mounts inside the cabin
- Fitment checks before you cut metal
Guide: Ford Ranger Generations by Year: PX, PX2, PX3, Next-Gen
Guide: Designing a DIY Bumper from a 3D Scan: Scan to Cut List
Questions buyers ask
Is this a real 3D scan or a model made from photos?
It is a 3D scan of a real Ford Ranger, so the surfaces are at true scale and can be measured. The images on this page are renders of the included file, not photos of a finished build. How to tell a real scan from a model made from photos.
Which file formats are included?
STL. STL opens in every major CAD and mesh tool. Which format your workflow needs: STL, STEP or OBJ.
What units is the file in?
Millimeters, at 1:1 scale. The overall size above was measured from the file itself.
Is the frame included?
Yes, the frame is part of the scan.
How do I get the files?
Buy it on Etsy. The files are larger than Etsy's 20 MB download limit, so the shop sends a download link after purchase; it is a straight browser download with no account needed.
