Jeep Wrangler JK 2007-2018 Full Vehicle 3D Scan
Full vehicle 3D scan of the 2007-2018 Jeep Wrangler JK (Unlimited 4-Door, JKU), captured from a real vehicle. 27,921,242 measured triangles, STL format, a 1,396 MB download. Sold on Etsy for $80; the shop sends a download link after purchase.
Notes
- Dimensions in millimeters, measured from the file: its overall extent, length × width × height. The file is at 1:1 scale; units verified.

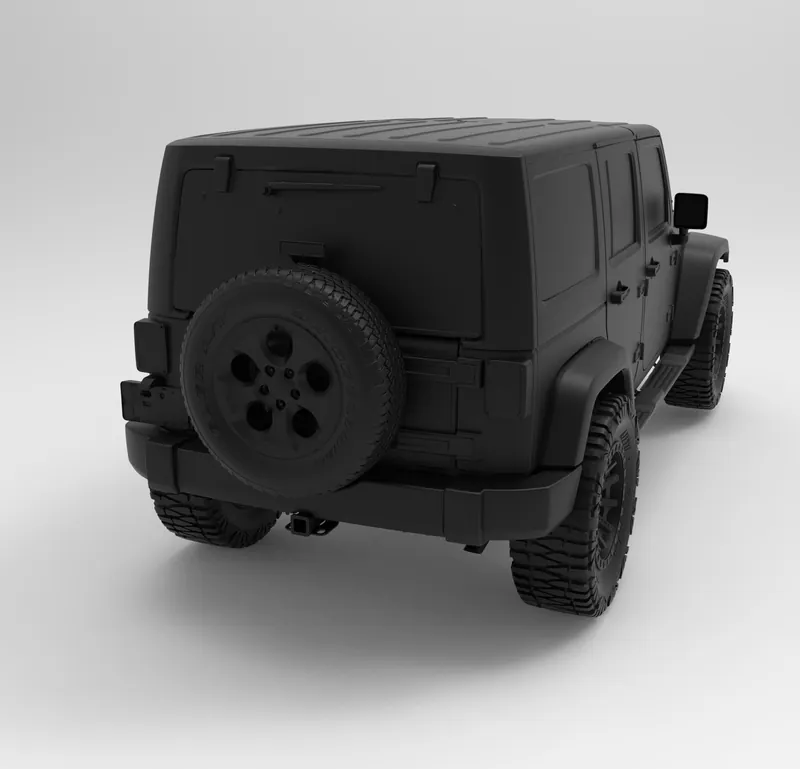

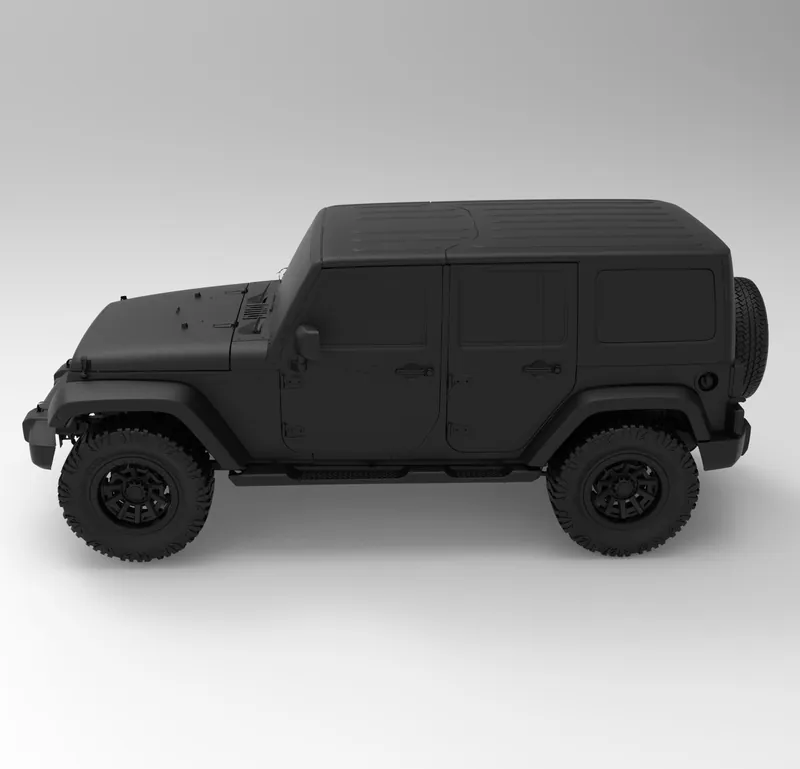

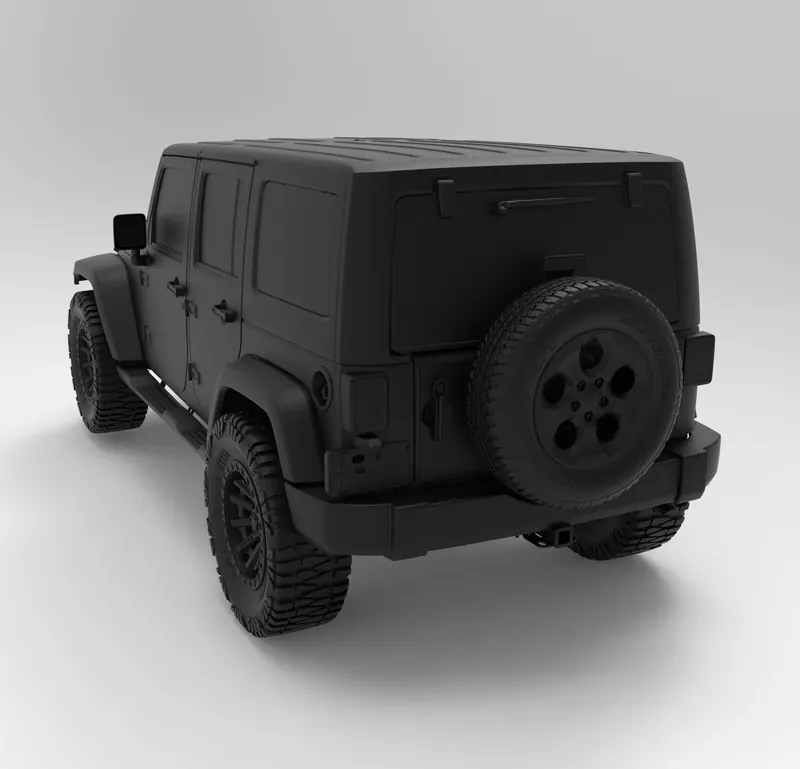

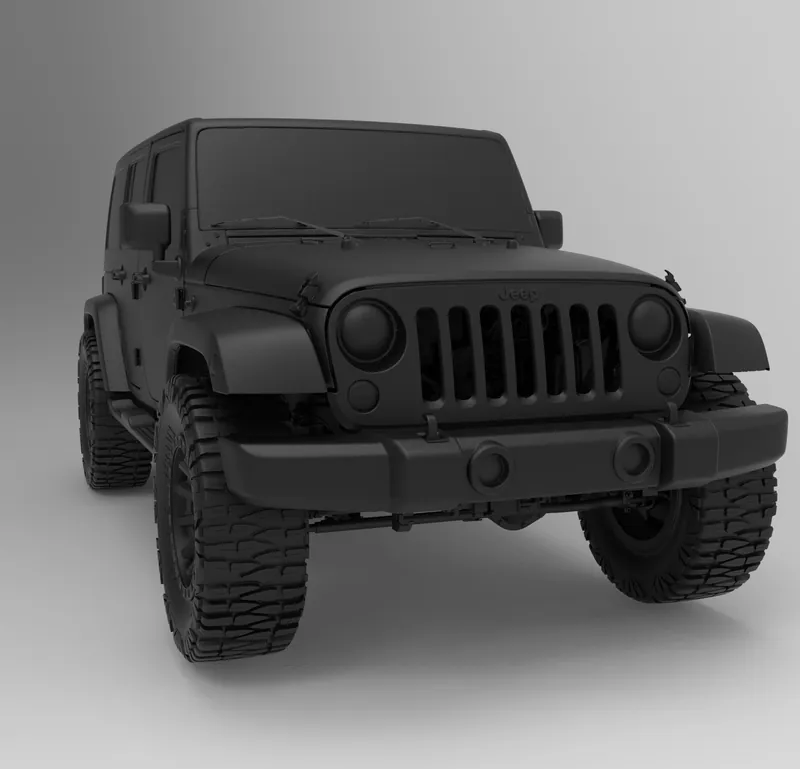

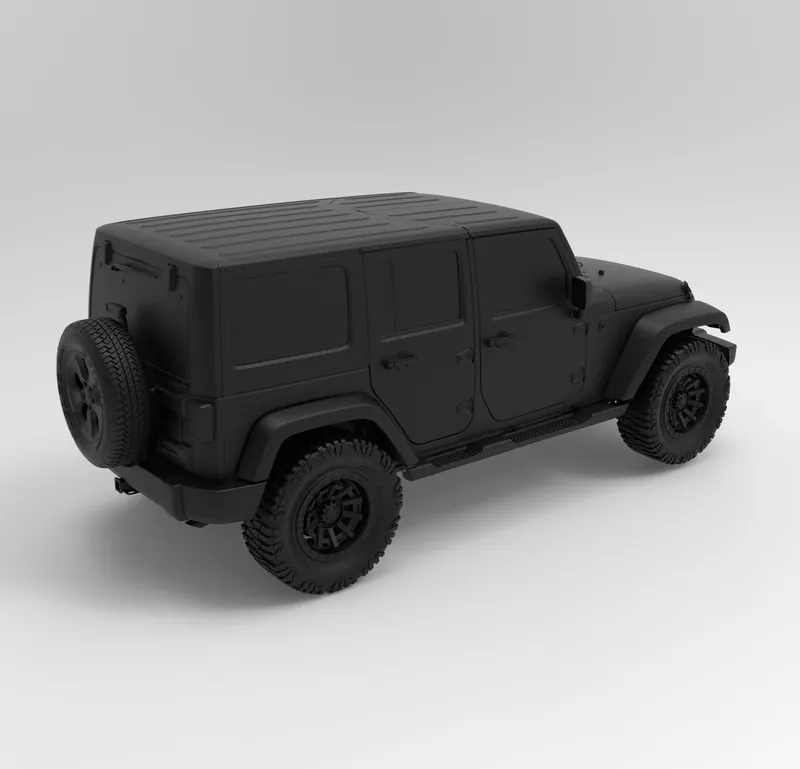

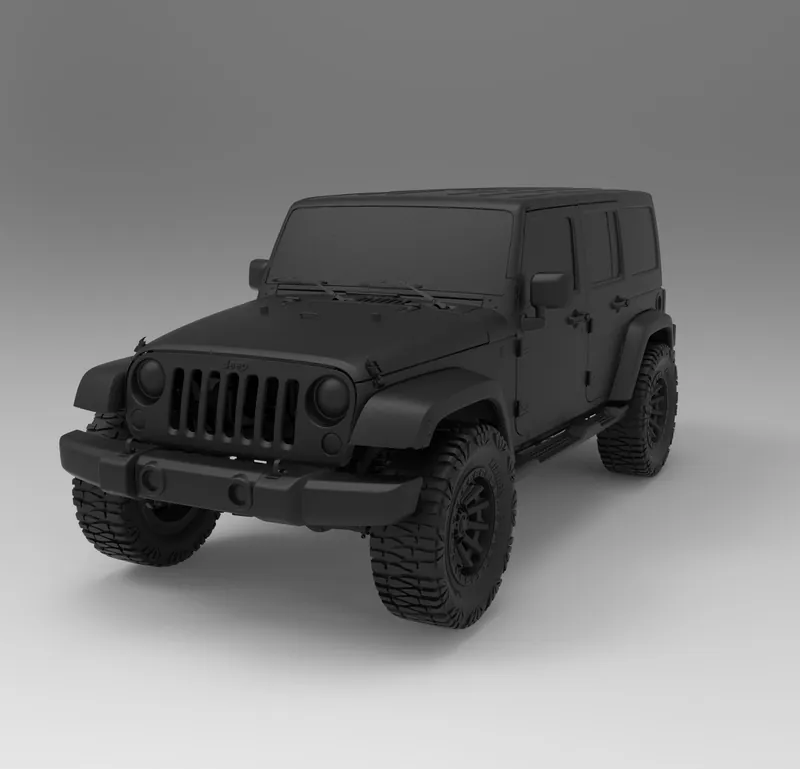

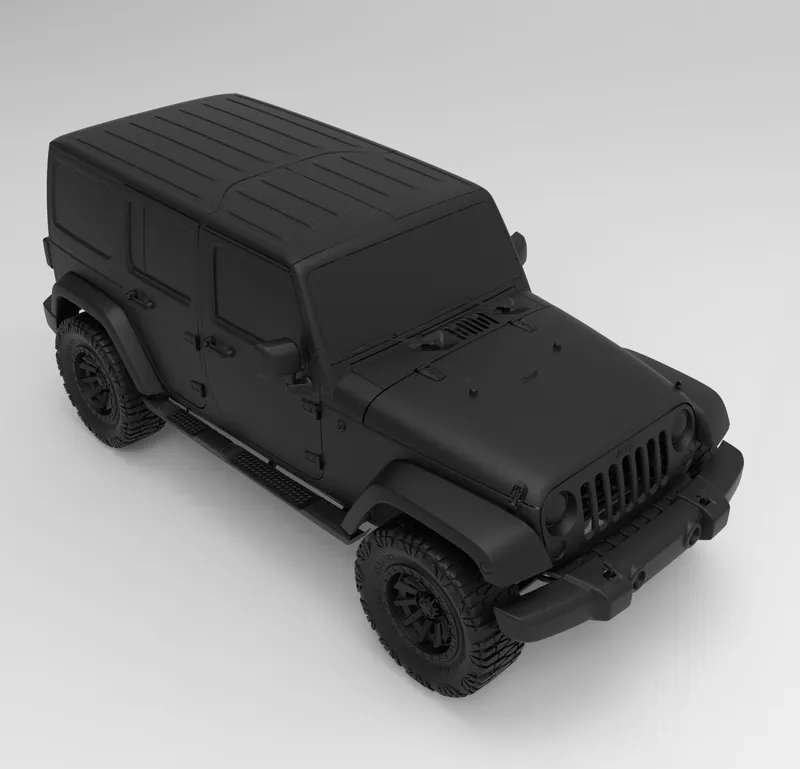

- View A and the other views are renders of the included file, not photos of a finished build. Not to scale.
- Delivered as STL, 1,396 MB: the shop sends a download link after purchase.
Specifications measured from the scan file
| Vehicle | Jeep Wrangler JK |
|---|---|
| Scanned vehicle | Unlimited 4-Door (JKU) |
| Model years | 2007-2018 |
| What it is | Full vehicle 3D scan |
| Formats | STL |
| Triangles | 27,921,242 |
| Overall size (L × W × H) | 4,708 × 1,969 × 1,904 mm 185.3 × 77.5 × 75.0 in |
| Download size | 1,396 MB |
What the scan covers
In this file
- Exterior
- Cabin interior
- Underbody
- Wheels
- Spare wheel
- Hardtop
- Doors
- Tailgate
- Mirrors

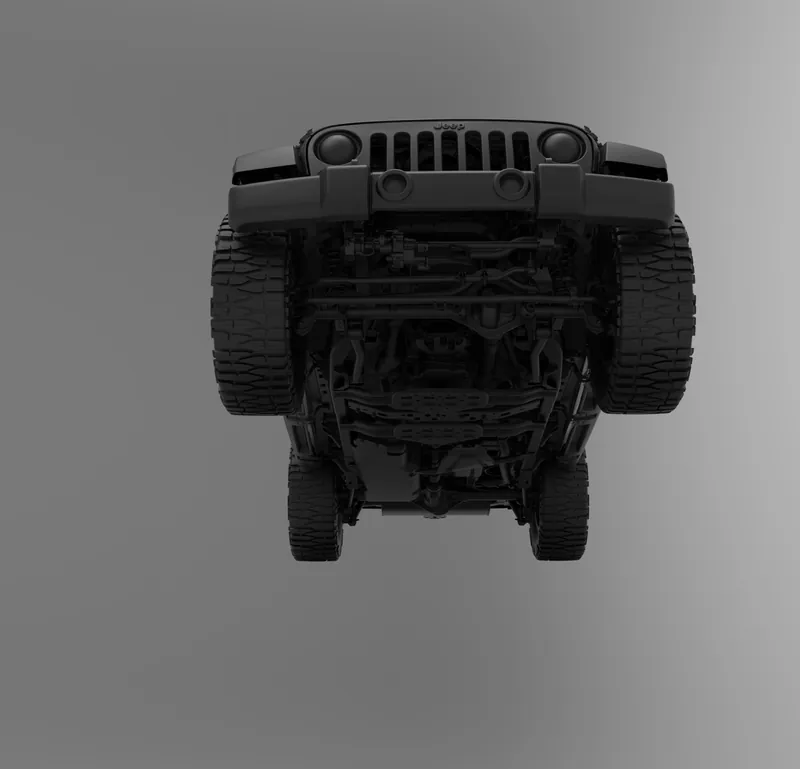

Complete Jeep Wrangler JKU 4-door Unlimited with hardtop, doors, wheels and the tailgate-mounted spare: exterior, full cabin interior (dashboard, center console, front seats, rear bench, cargo floor), underbody (frame, front and rear axles, driveshafts, transfer case, exhaust, skid plates). Hood closed: engine bay only partly captured through the grille.
Files in the download
| File | Size | Measured extent, L × W × H, mm (in) | Triangles |
|---|---|---|---|
| Exterior, cabin interior, underbody, wheels (STL) | 1,396 MB | 4,708 × 1,969 × 1,904185.3 × 77.5 × 75.0 in | 27,921,242 |
Extents are length × width × height of each file as measured, in millimeters at 1:1 scale, with inches below.
What it is for
- Bumpers, racks and canopies
- Fitment checks before you cut metal
- Reverse engineering in CAD
Questions buyers ask
Is this a real 3D scan or a model made from photos?
It is a 3D scan of a real Jeep Wrangler, so the surfaces are at true scale and can be measured. The images on this page are renders of the included file, not photos of a finished build. How to tell a real scan from a model made from photos.
Which file formats are included?
STL. STL opens in every major CAD and mesh tool. Which format your workflow needs: STL, STEP or OBJ.
What units is the file in?
Millimeters, at 1:1 scale. The overall size above was measured from the file itself.
Which model years does it fit?
The Jeep Wrangler JK for model years 2007-2018. Model years differ between markets for some vehicles; check the generation code if you are outside the market the vehicle was scanned in. Jeep Wrangler JK vs JL vs Gladiator JT: Picking the Right 3D Scan.
How do I get the files?
Buy it on Etsy. The files are larger than Etsy's 20 MB download limit, so the shop sends a download link after purchase; it is a straight browser download with no account needed.
More for the Jeep Wrangler JK
Sizes and triangle counts are measured from the files (catalog of 2026-10-05). The images on this page are renders of the included file, not photos of a finished build. Questions: info@cadgaragepro.com.
