Ford Ranger 2022+ Next-Gen Full Vehicle 3D Model (STL)
Full vehicle 3D model of the 2022+ Ford Ranger Next Gen (T6.2 / P703) (Wildtrak / XLT / Lariat). STL format, a 1,859 MB download. The file covers the outside of the vehicle and the underbody, frame, bed and tailgate. Sold on Etsy for $90; the shop sends a download link in Etsy messages, usually the same day.
Notes

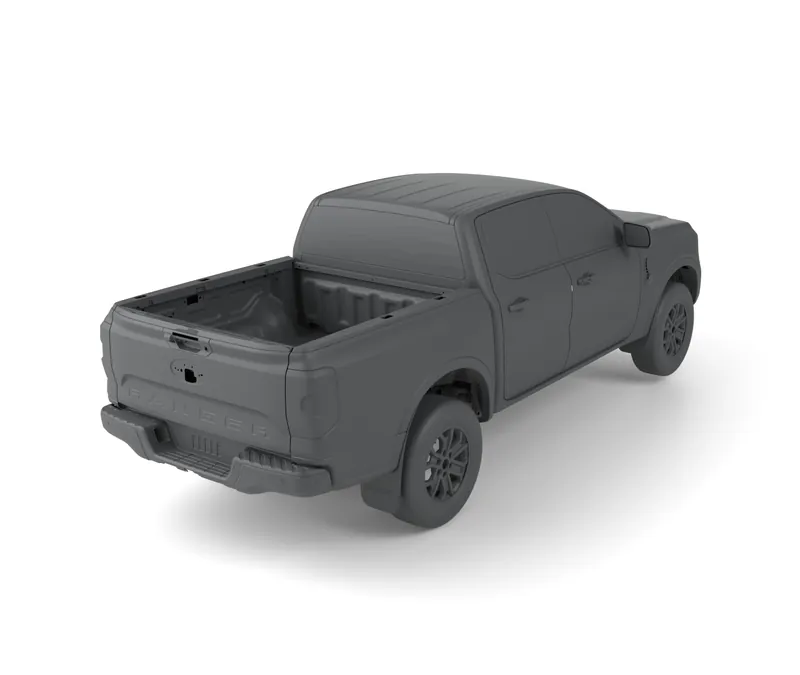

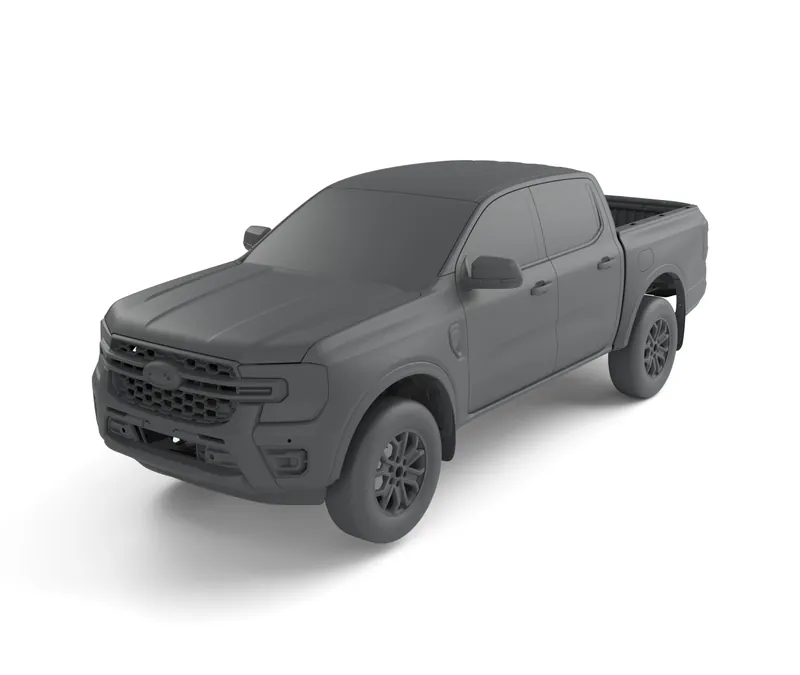

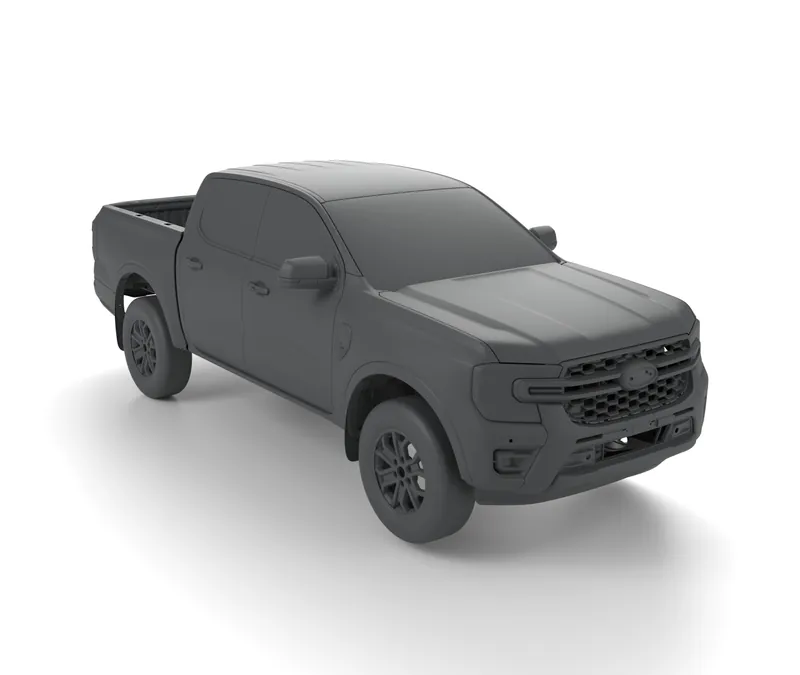

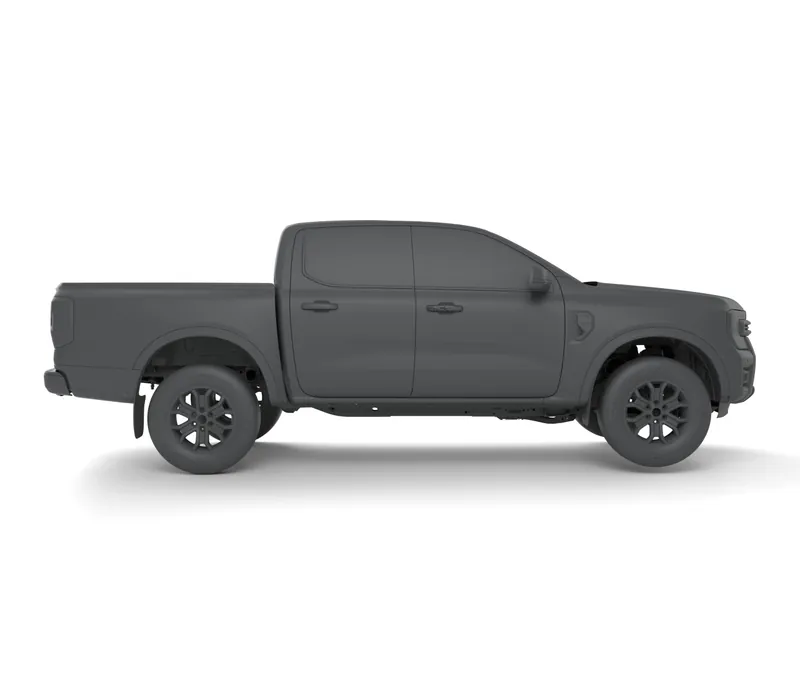

- View A and the other views are renders of the included file, not photos of a finished build. Not to scale.
- This file is not measured yet, so no size is shown for it.
- Delivered as STL, 1,859 MB: the shop sends a download link in Etsy messages, usually the same day.
Specifications
| Vehicle | Ford Ranger Next Gen (T6.2 / P703) |
|---|---|
| Fits | Wildtrak / XLT / Lariat |
| Model years | 2022+ |
| What it is | Full vehicle 3D model |
| Formats | STL |
| Files in the download | 2 files: STL (1,425 MB), STL (434 MB) |
| Overall size | not measured yet |
| Download size | 1,859 MB |
What the file covers
In these files
- Exterior
- Underbody
- Frame
- Wheels
- Spare wheel
- Bed
- Tailgate
- Mirrors
File 2: Light copy of the same truck for SolidWorks and Fusion 360.
Files in the download
| File | Size |
|---|---|
| File 1: Exterior, underbody, frame, wheels (STL) | 1,425 MB |
| File 2: Exterior, underbody, frame, wheels (STL) | 434 MB |
Measured from our files
From these files we can measure, for example:
- Frame-rail outer width and the spacing of the rails
- Bumper mount points and bolt spacing on the frame ends
- Tray mount spacing on the frame
- Tow-bar and rear frame mount spacing
- Tub inner length and width, and the bed rail height
We do not print every figure here. Ask us for the measurements you need and we take them from the files for you, usually the same day; every one of them is in the files themselves once you have them.
Also sold as
The same body is sold under these names in other markets: Ford Ranger 2022+ (Australia, Europe, Asia, Africa); Ford Ranger 2024+ (USA).
What it is for
- Bumpers, with the frame and suspension in the file
- Trays, canopies and bed racks
- Rock sliders, skid plates and underbody armour
- Fitment checks before you cut metal
Every file for this job: Pickup 3D scans and models for tray and canopy design
Every file for this job: Truck and 4x4 3D scans and models for roof rack design
Answered with pictures
-

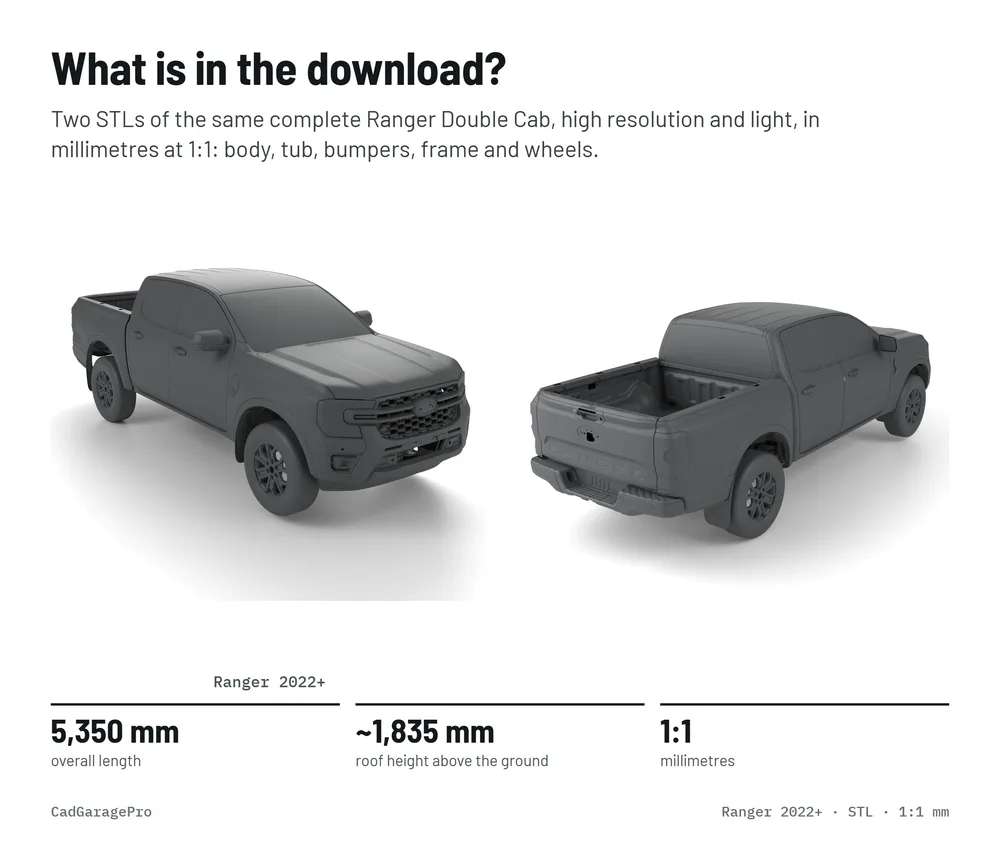

What is in the download?
Two STLs of the same complete Ranger Double Cab, high resolution and light, in millimetres at 1:1: body, tub, bumpers, frame and wheels.
-

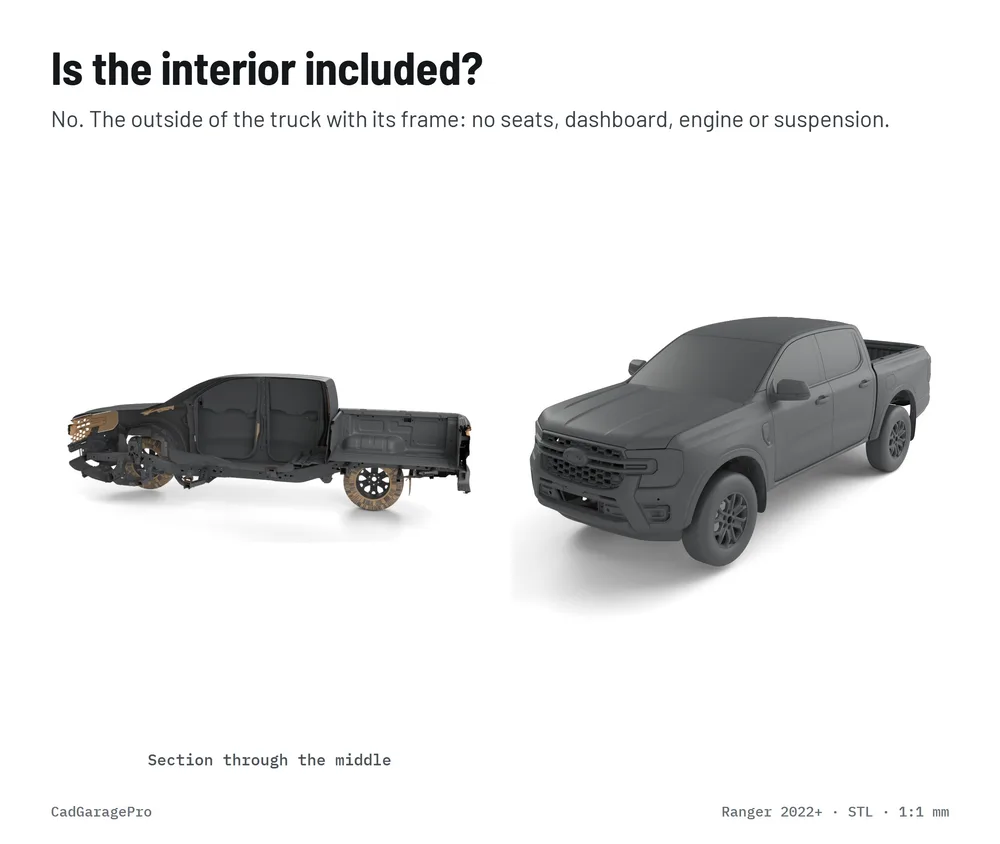

Is the interior included?
No. The outside of the truck with its frame: no seats, dashboard, engine or suspension.
-

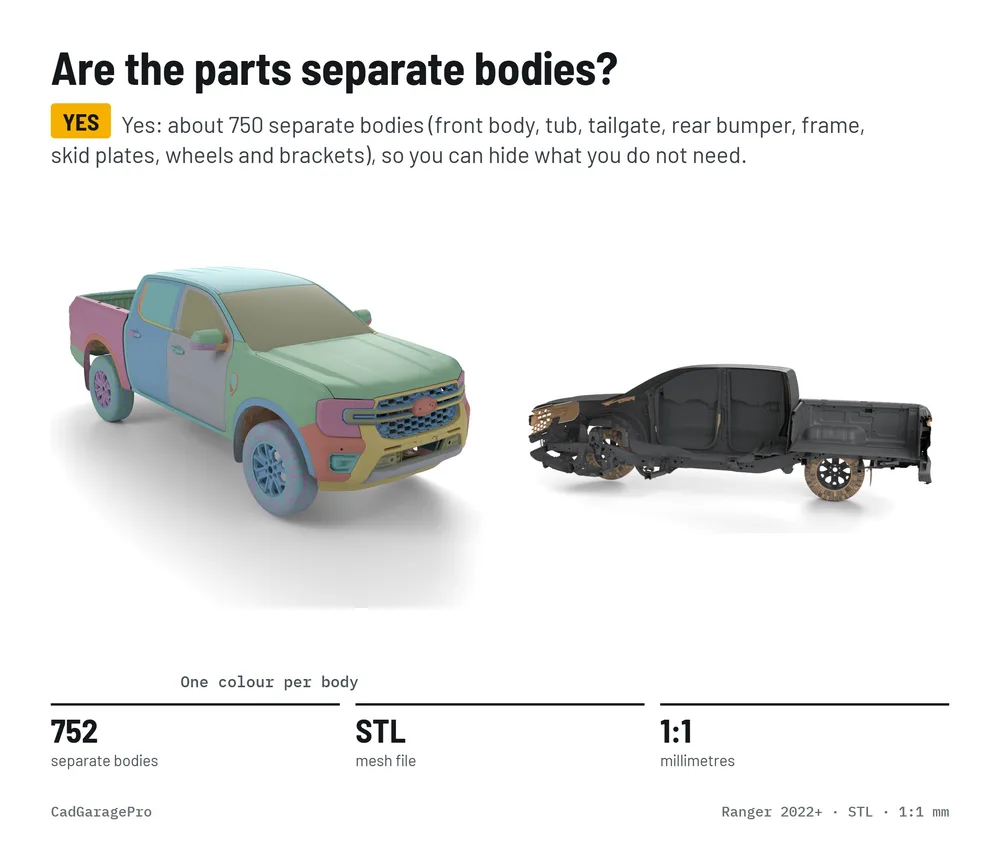

Are the parts separate bodies?

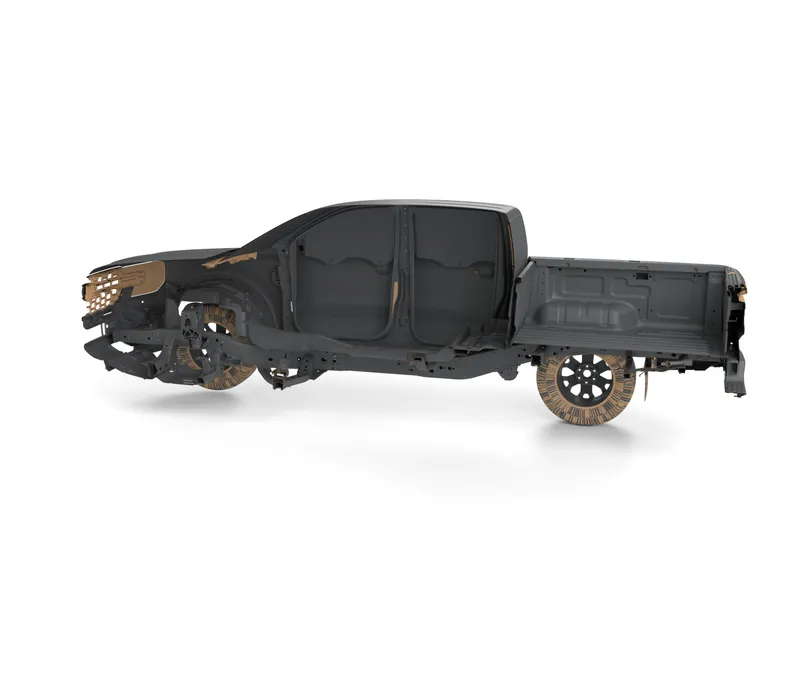

Yes: about 750 separate bodies (front body, tub, tailgate, rear bumper, frame, skid plates, wheels and brackets), so you can hide what you do not need.
-

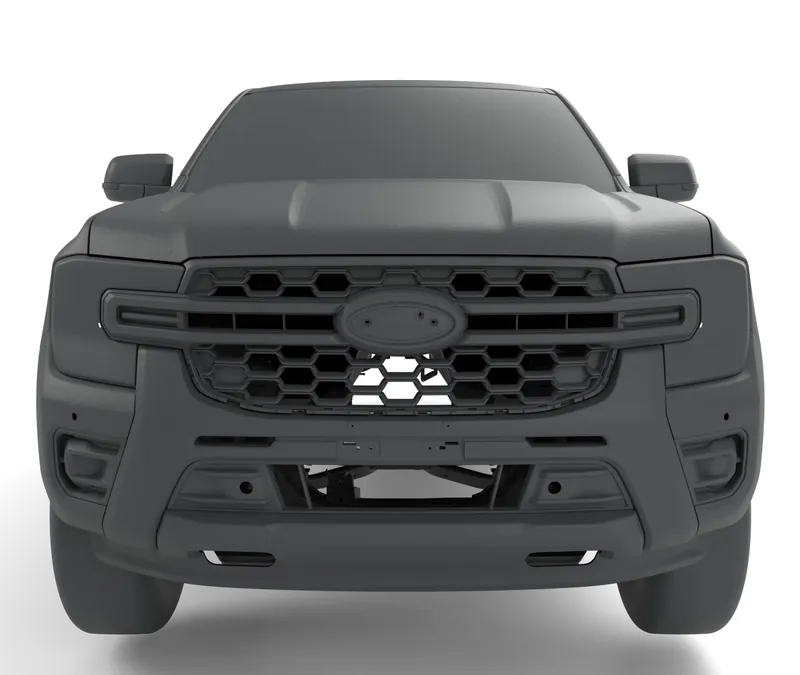

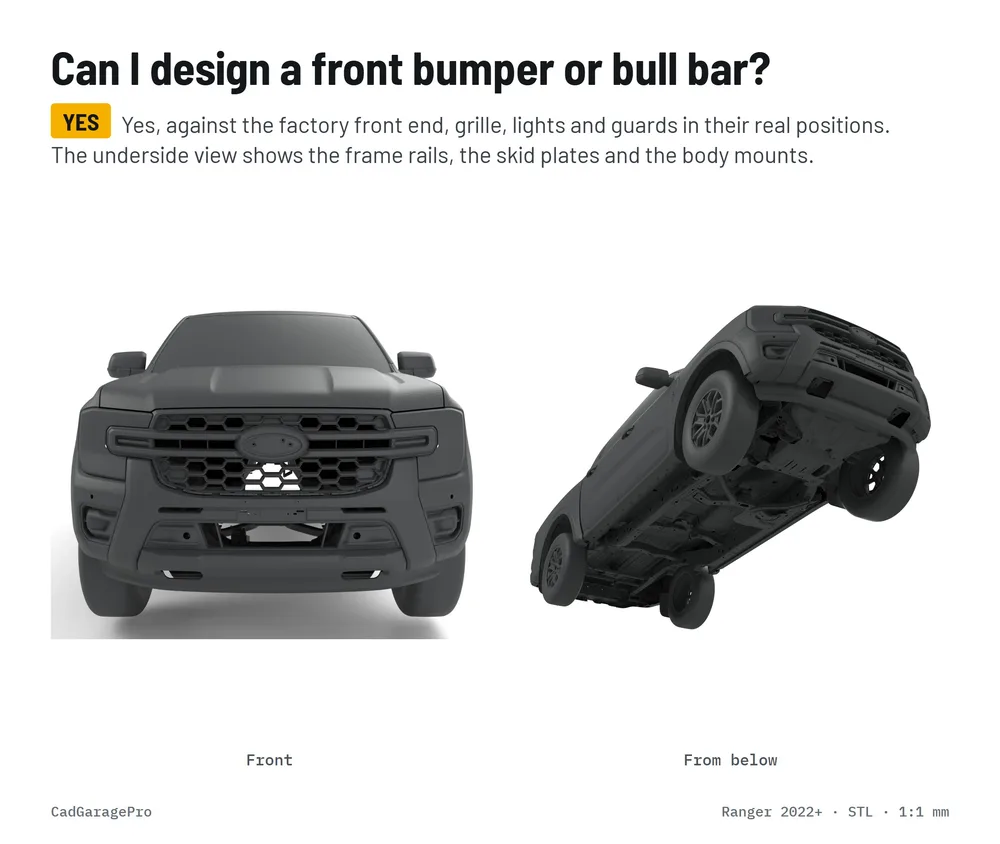

Can I design a front bumper or bull bar?

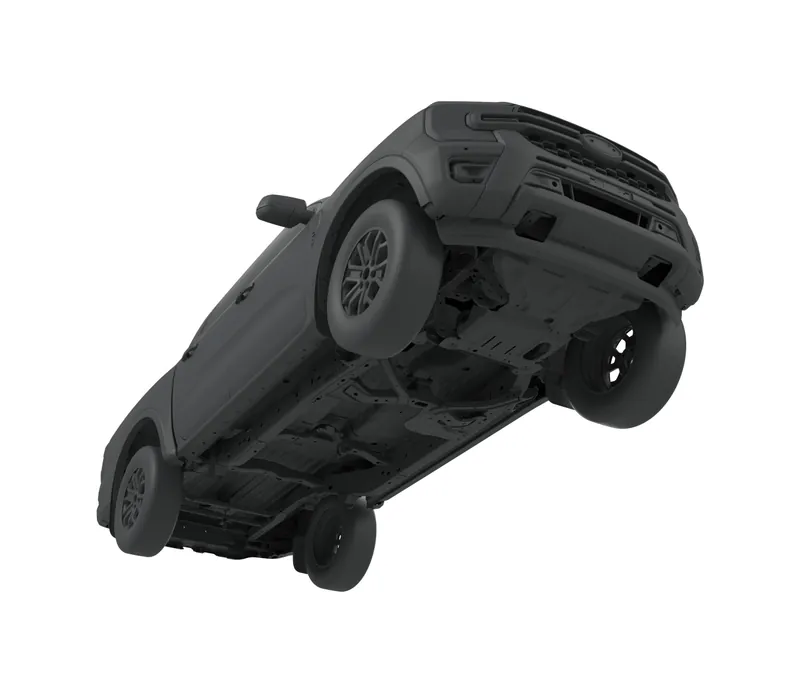

Yes, against the factory front end, grille, lights and guards in their real positions. The underside view shows the frame rails, the skid plates and the body mounts.
-

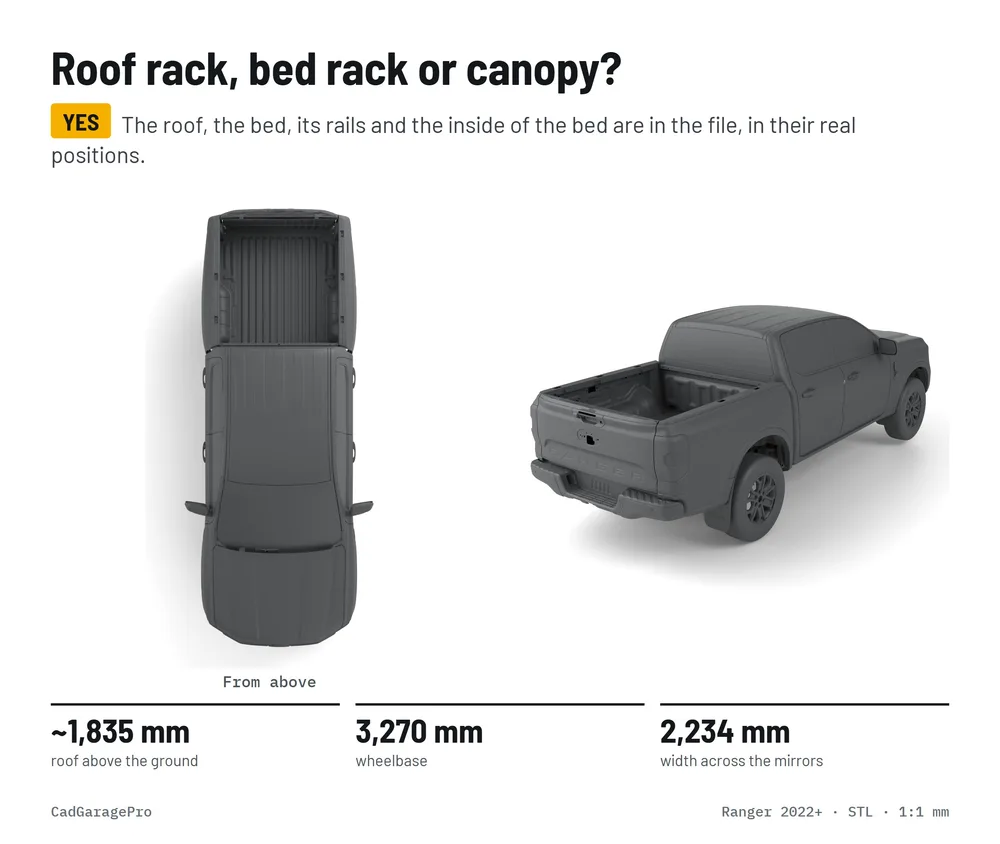

Roof rack, bed rack or canopy?

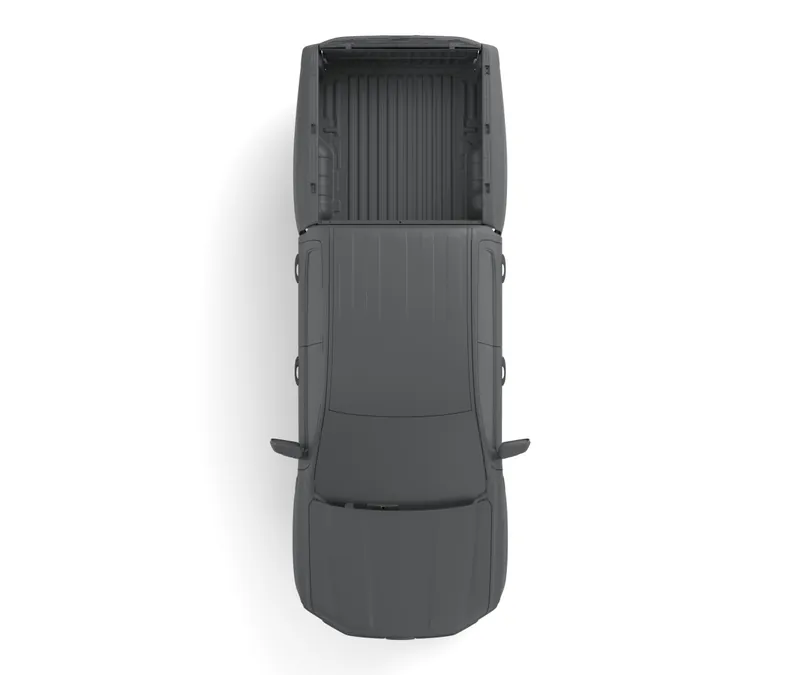

Yes. The roof, the bed, its rails and the inside of the bed are in the file, in their real positions.
-

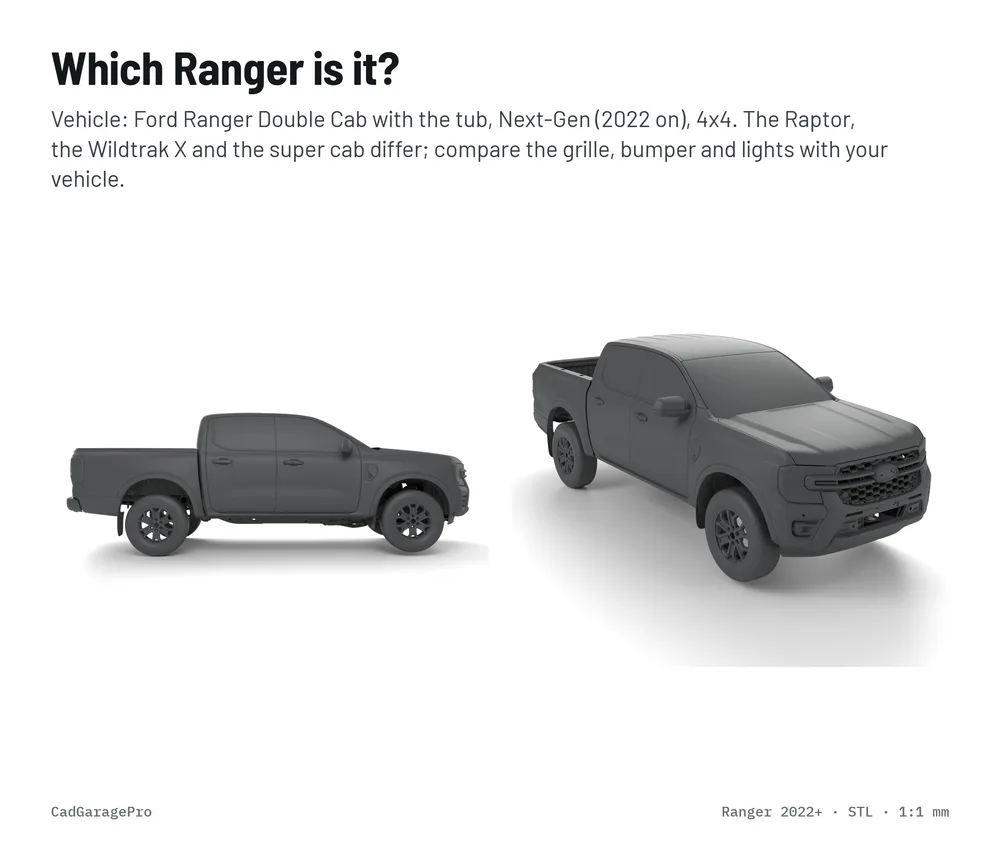

Which Ranger is it?
Vehicle: Ford Ranger Double Cab with the tub, Next-Gen (2022 on), 4x4. The Raptor, the Wildtrak X and the super cab differ; compare the grille, bumper and lights with your vehicle.
-

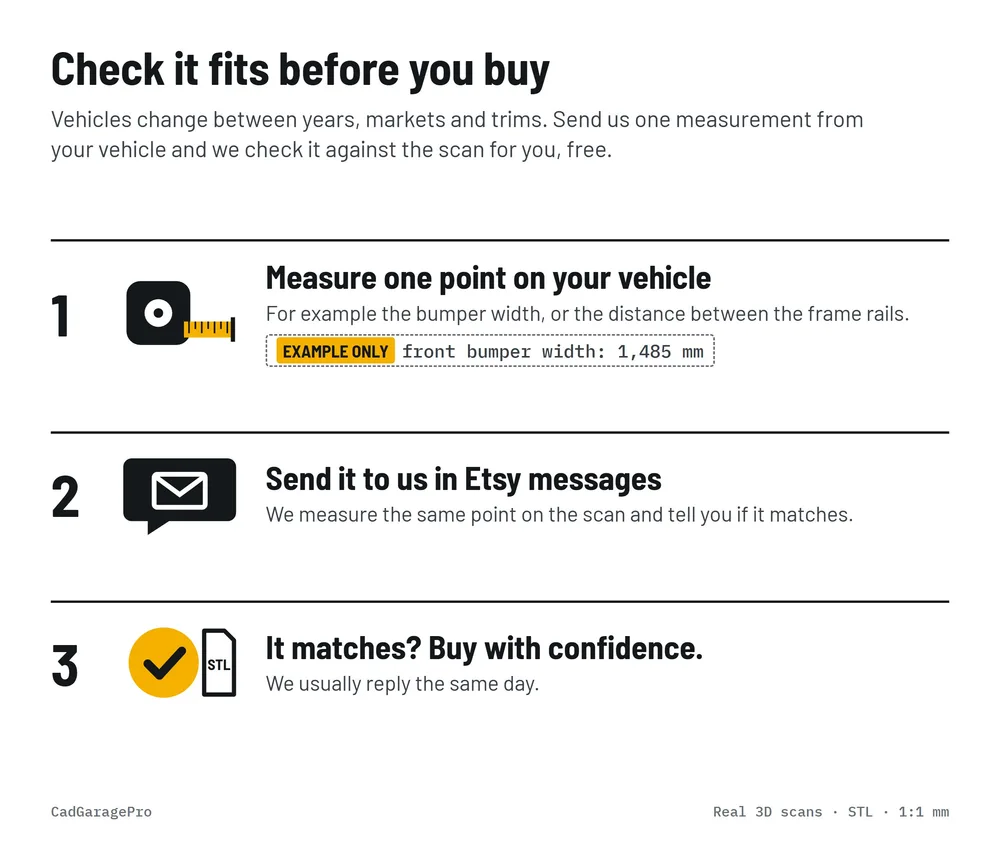

Check it fits before you buy
Questions buyers ask
Which file formats are included?
Which model years does it fit?
The Ford Ranger Next Gen (T6.2 / P703) from model year 2022 on. Model years differ between markets for some vehicles; check the generation code if you are outside the market these files were made for. Ford Ranger Years: PX 2011-2015, PX2 2015-2018, PX3 2018-2022.
How do I get the files?
On Etsy: the shop sends a download link in Etsy messages after purchase, usually the same day. How delivery works.
What may I do with the files?
You may use the files for your own personal and commercial design and fabrication work, including parts you make and sell. Please do not share, resell or upload the files, or modified copies of them, in whole or in part. The licence of every file.
More for the Ford Ranger Next Gen (T6.2 / P703)
2022-2025 Rear Bumper Fabrication Plans (DXF, STEP, PDF, IGES)

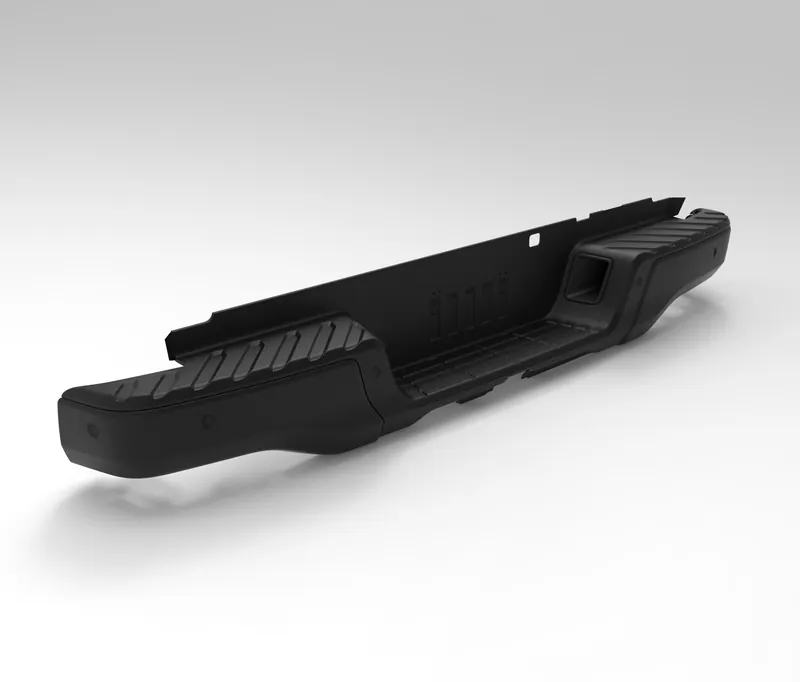

2022+ Rear End CAD Model (STEP)
2022+ Front End CAD Model (STEP)
2022+ Chassis CAD Model (STEP)
Other full-vehicle scans
Ford Ranger T6 PX
2011-2015 Full Vehicle 3D Scan (STL)
Ford F-150 14th gen
2021+ Full Vehicle 3D Scan (STL)
Ford Ranger T6 PX MkII
2015-2018 Full Vehicle 3D Scan (STL)

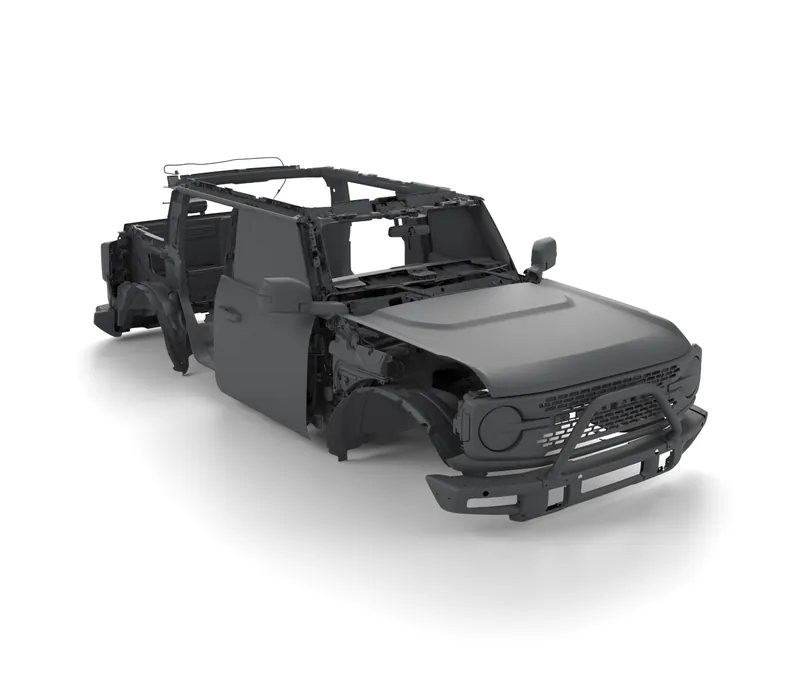

Ford Bronco 6th gen (U725)
