Toyota Hilux 1997-2001 6th Gen Front End 3D Scan (STL)
Front end 3D scan of the 1997-2001 Toyota Hilux 6th gen (N140-N170) (Single Cab), captured from a real vehicle. 17,862,888 measured triangles, STL format, an 893 MB download. Sold on Etsy for $40; the shop sends a download link in Etsy messages, usually the same day.
Notes
- Dimensions in millimeters, measured from the file: its overall extent, along the file's own X, Y and Z axes. The file is at 1:1 scale.
- View A and the other views are renders of the included file, not photos of a finished build. Not to scale.
- Delivered as STL, 893 MB: the shop sends a download link in Etsy messages, usually the same day.
Specifications measured from the scan file
| Vehicle | Toyota Hilux 6th gen (N140-N170) |
|---|---|
| Scanned vehicle | Single Cab |
| Model years | 1997-2001 |
| What it is | Front end 3D scan |
| Formats | STL |
| Triangles | 17,862,888 |
| Overall size (X × Y × Z, file axes) | 1,708 × 1,317 × 876 mm 67.2 × 51.9 × 34.5 in |
| Download size | 893 MB |
What the scan covers
In this file
- Front end
Not in this file
- Bumper
- Grille
- Headlights

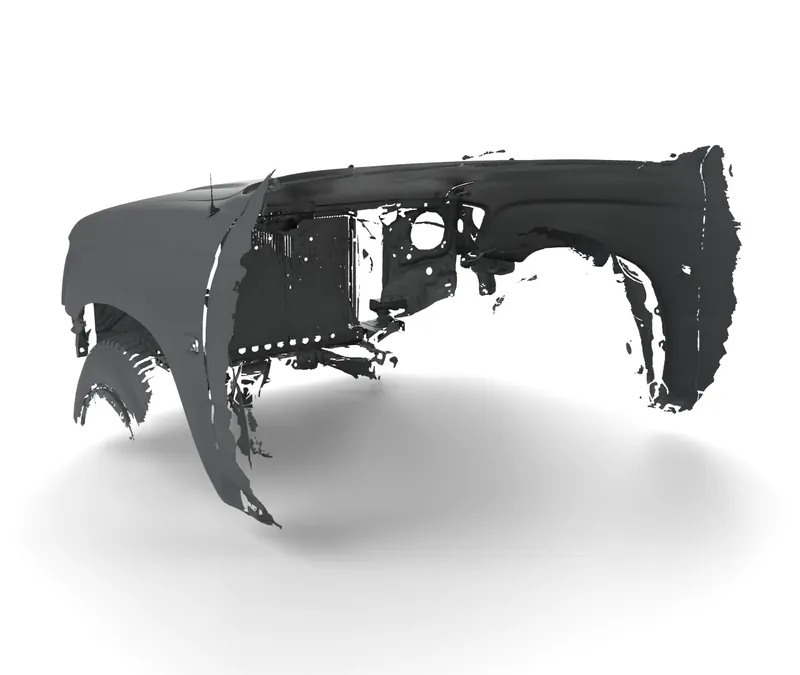

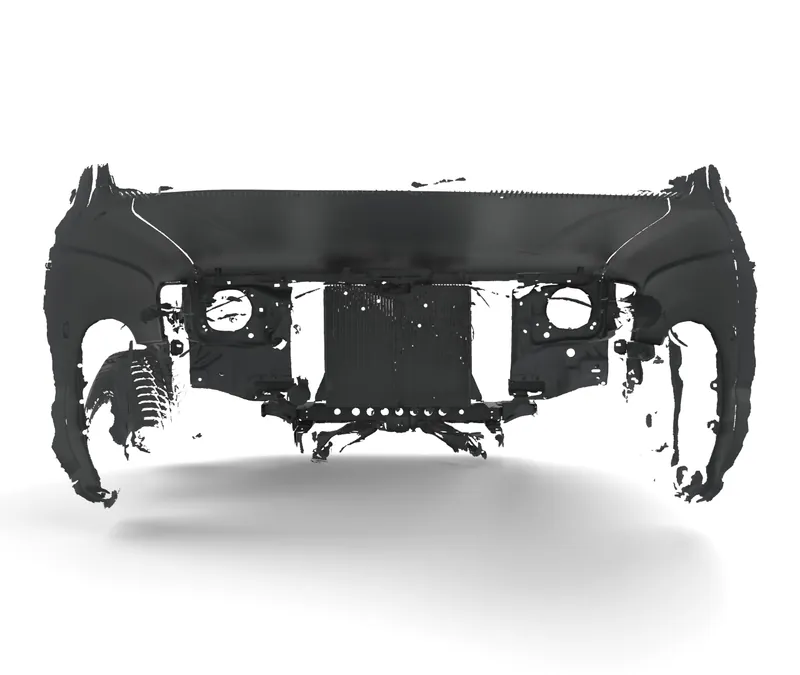

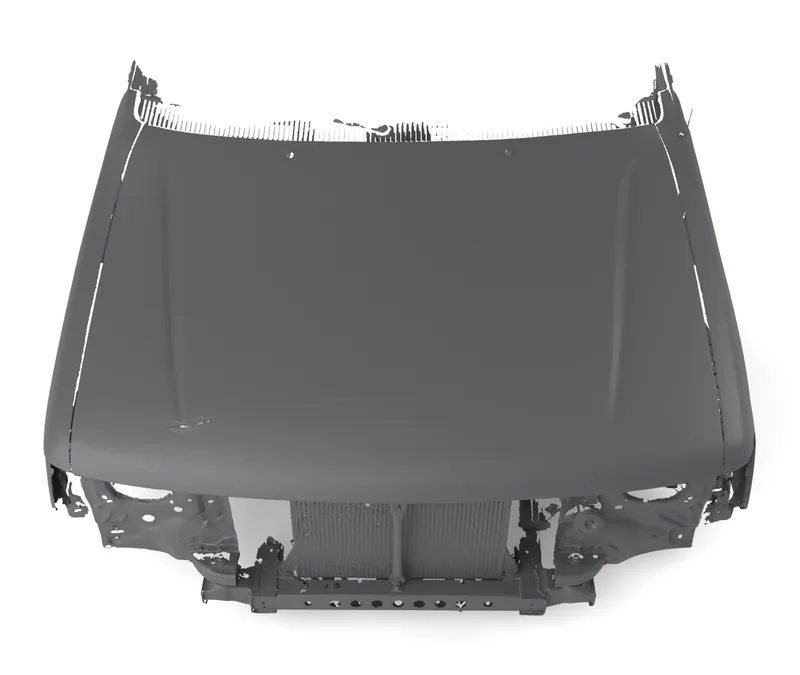

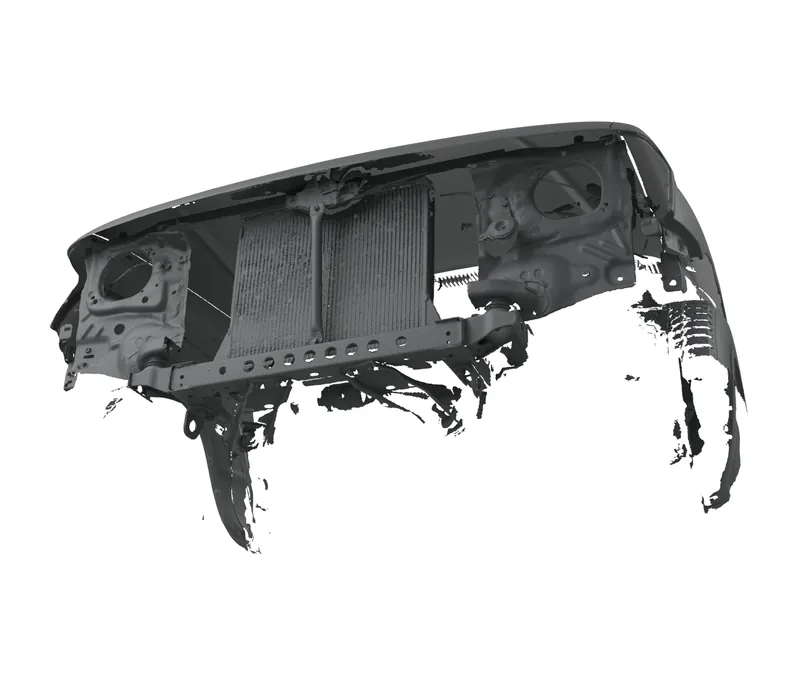

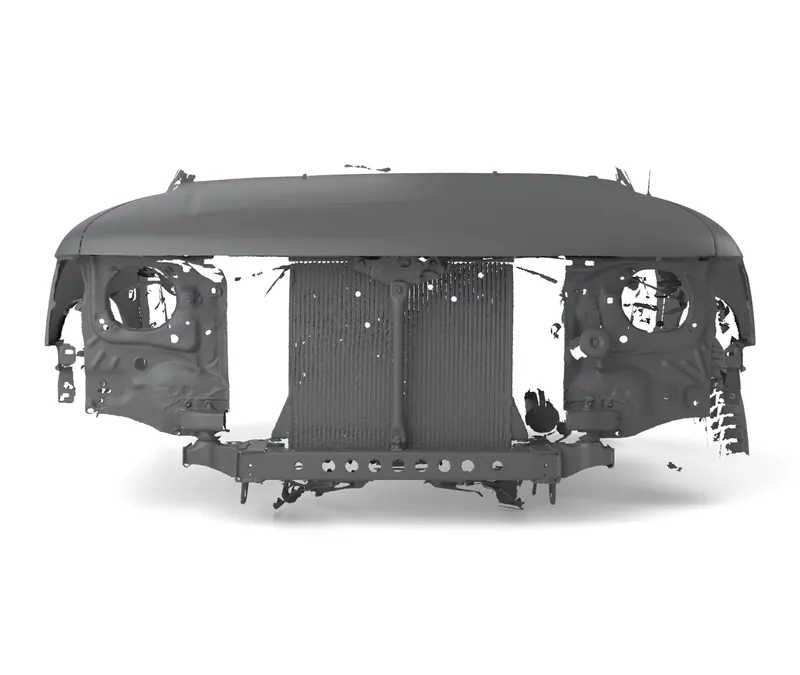

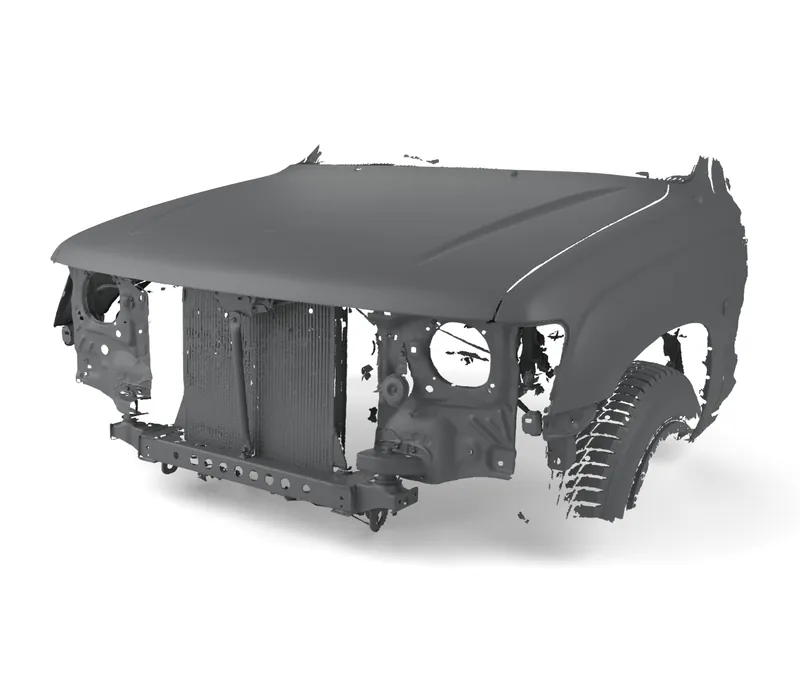

Front of a 1997 Toyota Hilux with the bumper, grille and headlights off: bonnet, front fenders, radiator support, crash beam and frame horns. A dense scan of about 18 million triangles. NOT included: bumper, grille, headlights.
Files in the download
| File | Size | Measured extent, X × Y × Z, file axes, mm (in) | Triangles |
|---|---|---|---|
| Front end (STL) | 893 MB | 1,708 × 1,317 × 87667.2 × 51.9 × 34.5 in | 17,862,888 |
Extents are each file's measured size along the axes named, in millimeters at 1:1 scale, with inches below.
Measured from our scans
Overall size of the file, as measured: 1,708 × 1,317 × 876 mm (67.2 × 51.9 × 34.5 in).
From this scan we can also measure, for example:
- Frame-rail outer width and the spacing of the rails
- Bumper mount points and bolt spacing on the frame ends
- The grille, headlight and bonnet edges a bull bar has to clear
We do not print every figure here. Ask us for the measurements you need and we take them from the scan for you, usually the same day; every one of them is in the file itself once you have it.
What it is for
- Front bumpers and bull bars
- Winch mounts and skid plates
- Fitment checks before you cut metal
Guide: Designing a DIY Bumper from a 3D Scan: Scan to Cut List
Answered with pictures
-
What is in the download?

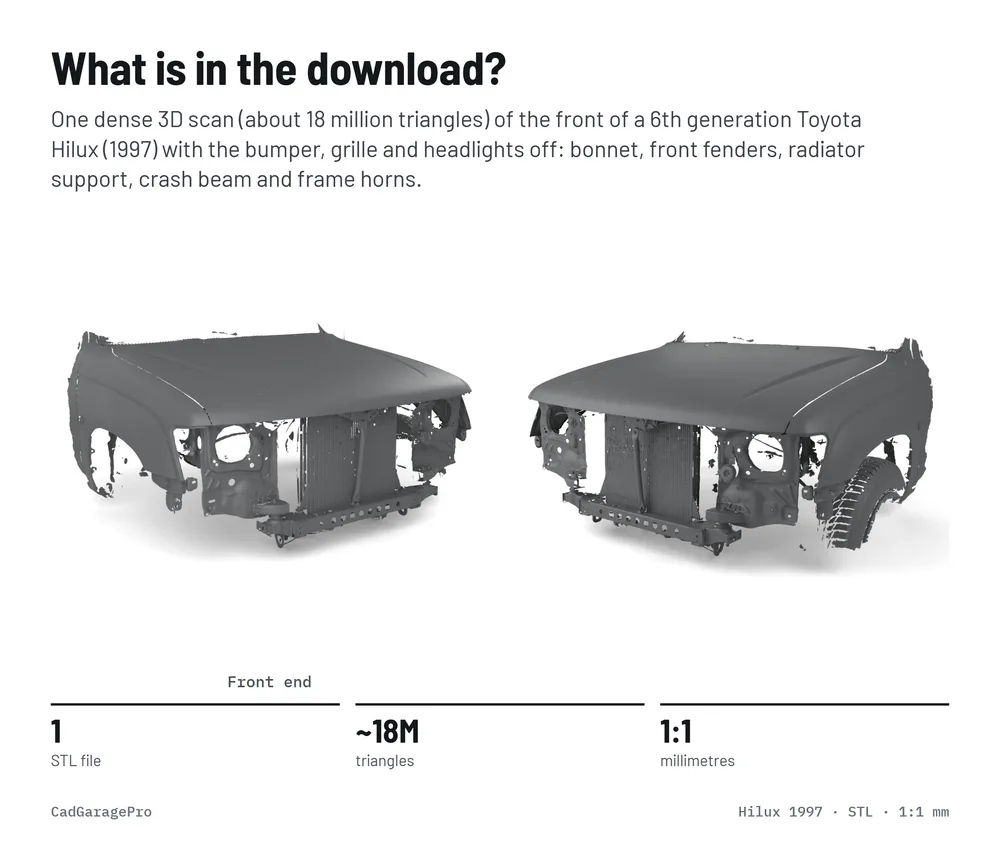

One dense 3D scan (about 18 million triangles) of the front of a 6th generation Toyota Hilux (1997) with the bumper, grille and headlights off: bonnet, front fenders, radiator support, crash beam and frame horns.
-

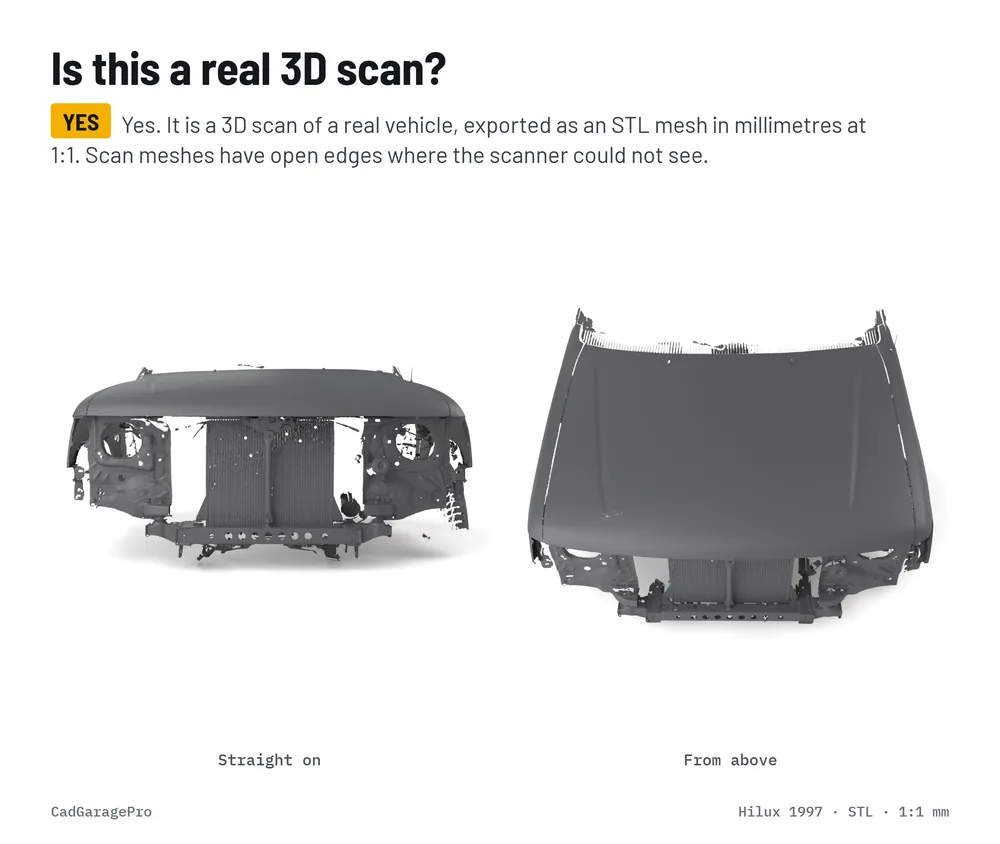

Is this a real 3D scan?
Yes. It is a 3D scan of a real vehicle, exported as an STL mesh in millimetres at 1:1. Scan meshes have open edges where the scanner could not see.
-

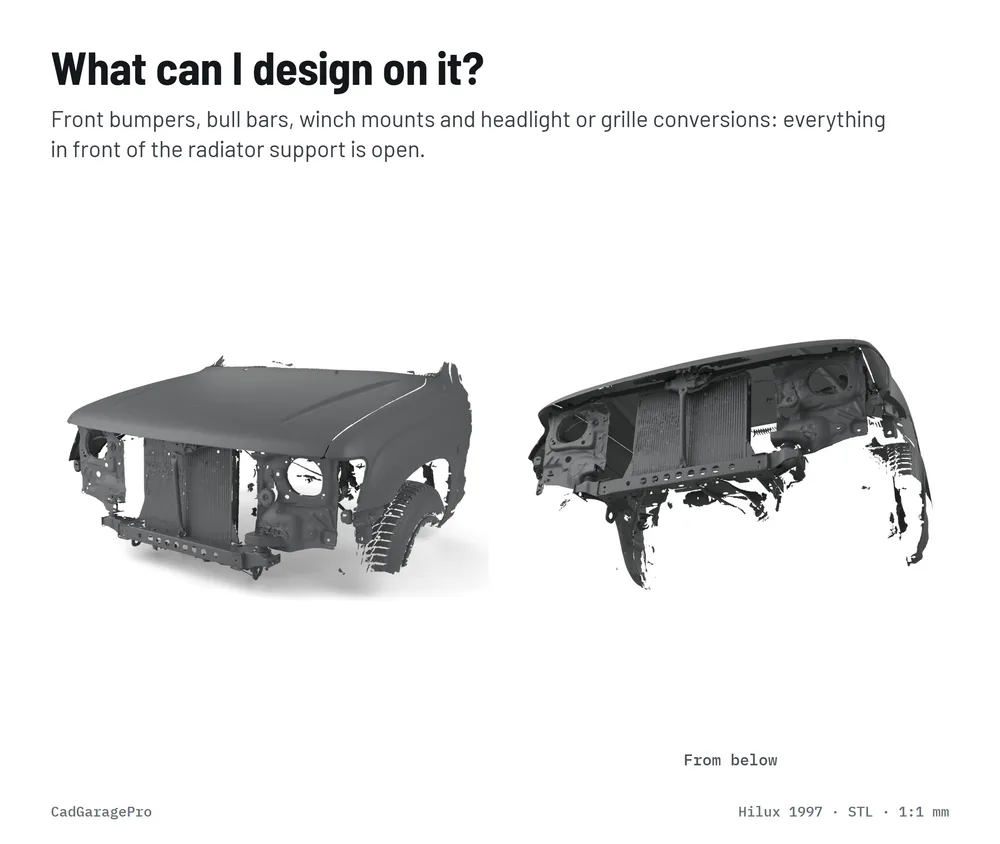

What can I design on it?
Front bumpers, bull bars, winch mounts and headlight or grille conversions: everything in front of the radiator support is open.
-

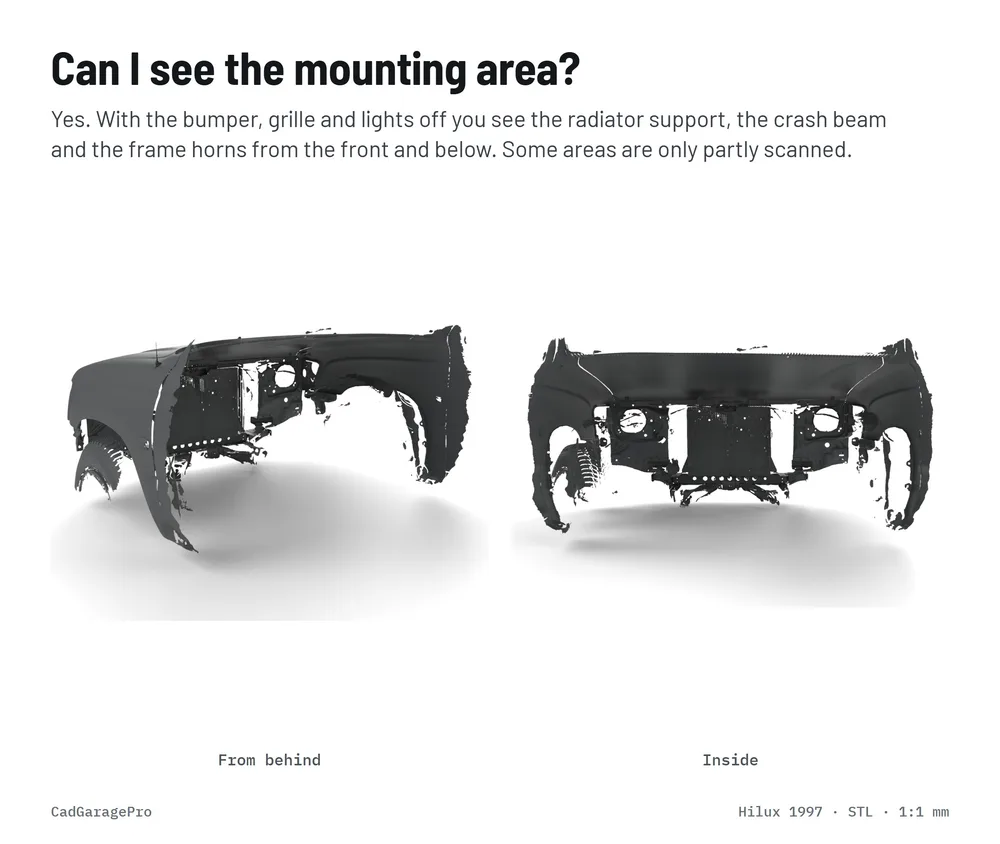

Can I see the mounting area?
Yes. With the bumper, grille and lights off you see the radiator support, the crash beam and the frame horns from the front and below. Some areas are only partly scanned.
-
Which Hilux is it?

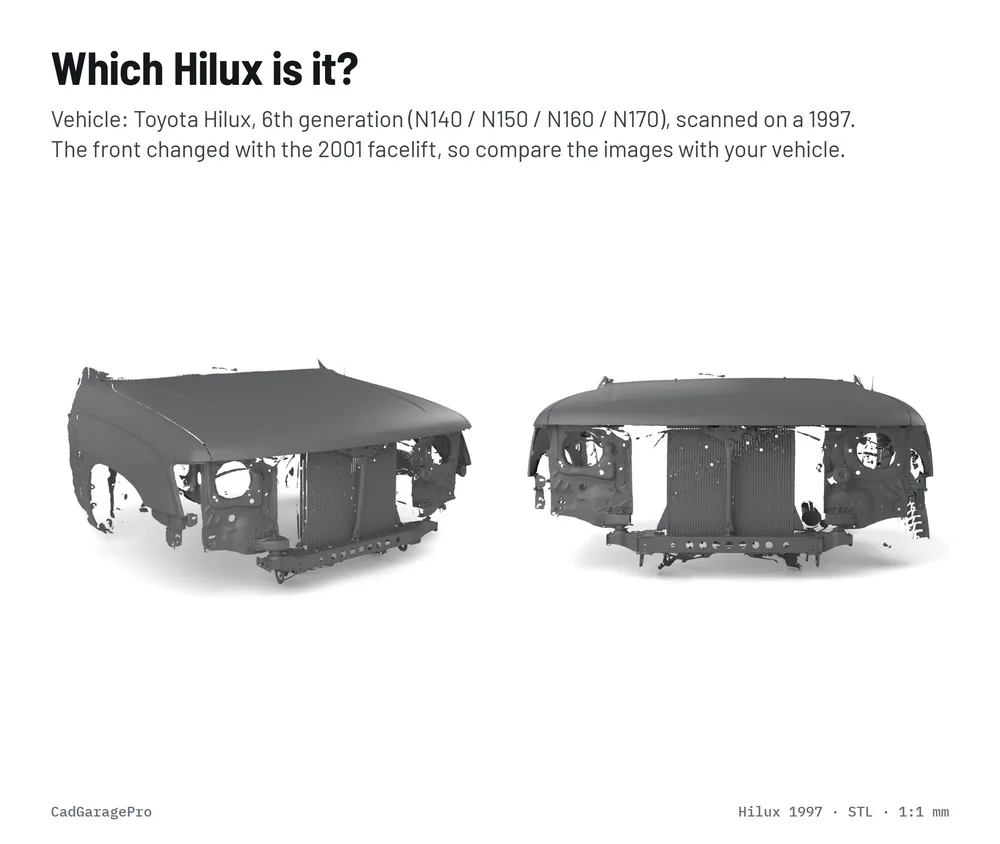

Vehicle: Toyota Hilux, 6th generation (N140 / N150 / N160 / N170), scanned on a 1997. The front changed with the 2001 facelift, so compare the images with your vehicle.
-
Check it fits before you buy

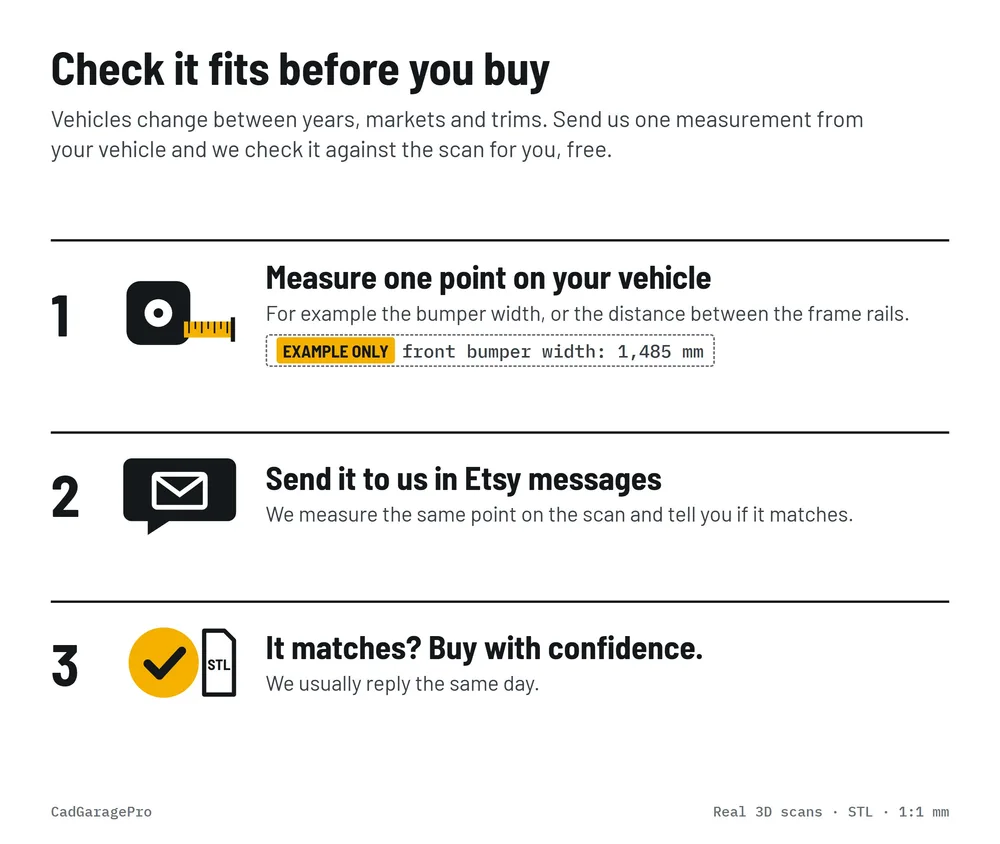

Vehicles change between years, markets and trims. Send us one measurement from your vehicle and we check it against the scan for you, free. How the free fit check works.
Questions buyers ask
Is this a real 3D scan or a model made from photos?
It is a 3D scan of a real Toyota Hilux, so the surfaces are at true scale and can be measured. How to tell a real scan from a model made from photos.
Which file formats are included?
What units is the file in?
Millimeters, at 1:1 scale. Units and formats of our files.
Which model years does it fit?
The Toyota Hilux 6th gen (N140-N170) for model years 1997-2001. Model years differ between markets for some vehicles; check the generation code if you are outside the market the vehicle was scanned in. Toyota Hilux Generations by Market: Vigo, Revo and Which One You Have.
How do I get the files?
On Etsy: the shop sends a download link in Etsy messages after purchase, usually the same day. How delivery works.
What may I do with the file?
You may use the file for your own personal and commercial design and fabrication work, including parts you make and sell. Please do not share, resell or upload the file, or modified copies of it, in whole or in part. The licence of every file.
