1997-2001 Toyota Hilux 6th Gen (N140-N170) 3D Scan STL for Front Bumper and Bull Bar Design
1 product for the Toyota Hilux 6th gen (N140-N170): front end 3D scan; the file on sale fits model years 1997-2001. It is on sale in our Etsy shop. Below the file: when this generation was sold in each market, its facelifts and how to tell it apart.
Guide: Toyota Hilux Generations by Market: Vigo, Revo and Which One You Have
Generations and years: Toyota Hilux generations by year
Every Toyota Hilux 6th gen (N140-N170) file at a glance
| Dwg no | File | L × W × H, mm | Triangles | Formats | Download | Price | Summary |
|---|---|---|---|---|---|---|---|

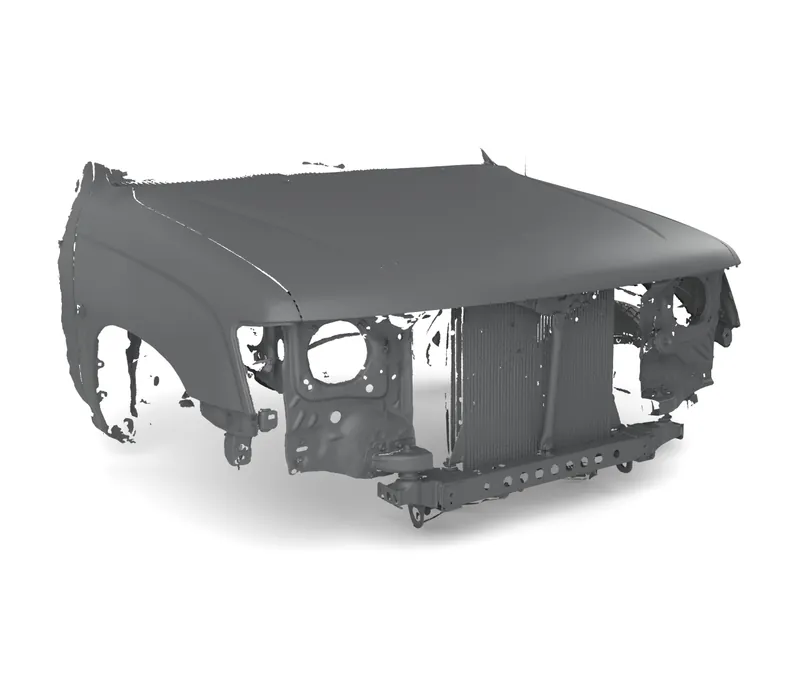

| CGP-HILUX97-FRONT | 1997-2001 Front End 3D Scan (STL) | 1,708 × 1,317 × 87667.2 × 51.9 × 34.5 in | 17,862,888 | STL | 893 MB | $40 on Etsy: Toyota Hilux 1997-2001 6th Gen Front End 3D Scan (STL) | 1,708 × 1,317 × 876 mm (67.2 × 51.9 × 34.5 in) · 17,862,888 triangles · STL · 893 MB |
Sizes are length × width × height of the file as measured, in millimeters at 1:1 scale, with the size in inches.
The file
Measured from our scans
Overall extent of the largest measured file on this page, in the front end 3D scan (X × Y × Z, file axes), as measured: 1,708 × 1,317 × 876 mm (67.2 × 51.9 × 34.5 in).
From this scan we can also measure, for example:
- Frame-rail outer width and the spacing of the rails
- Bumper mount points and bolt spacing on the frame ends
- The grille, headlight and bonnet edges a bull bar has to clear
We do not print every figure here. Ask us for the measurements you need and we take them from the scan for you, usually the same day; every one of them is in the file itself once you have it.
About the 6th generation Hilux (1997-2005)
Codes: N140, N150, N160, N170, N190. Also called: Hilux Surf is a different SUV.
How to tell it apart: Pre-dates the taller, rounder 2005 IMV Hilux; the 2001-2005 facelift has a more rounded nose and new grille than the 1997-2001 original.
| Market | Sold |
|---|---|
| Australia | Nov 1997 to Mar 2005 |
| United States | Not sold |
| Europe and the UK | Oct 1997 to Oct 2005 |
| South Africa | Not on record |
| Thailand | Not on record |
- 2001 facelift (Nov 2001): Restyled front with new grille; Wikipedia describes a 'more rounded fascia'. UK got a common-rail turbodiesel at the same time.
Dates are first and last sale or production as our sources give them; "Not on record" means no source we could open gives the date. The sources, and the other Toyota Hilux generations, are on the Toyota Hilux generations by year page. Not sure a file fits your truck? Ask us with its market and build date.
