Jeep Cherokee XJ Rear Bumper Area and Underbody 3D Scans
Rear bumper area and underbody 3D scans of the Jeep Cherokee XJ, captured from a real vehicle. 3,136,760 measured triangles, STL format, a 458 MB download. Sold on Etsy for $90; the shop sends a download link after purchase.
Notes
- File 1: Width 1,764 mm (69.5 in) across the body.
- View A and the other views are renders of the included file, not photos of a finished build. Not to scale.
- 2 files in the download; each file's measured extent is in the files table.
- Delivered as STL, 458 MB: the shop sends a download link after purchase.
Specifications measured from the scan file
| Vehicle | Jeep Cherokee XJ |
|---|---|
| What it is | Rear bumper area and underbody 3D scans |
| Formats | STL |
| Triangles (all files) | 3,136,760 |
| Overall size | per file, in the files table |
| Download size | 458 MB |
What the scan covers
In these files
- Rear end
- Underbody
Not in file 1
- Bumper cover itself
- Tail lamps above the bumper line
- Cabin
- Anything forward of the fuel tank

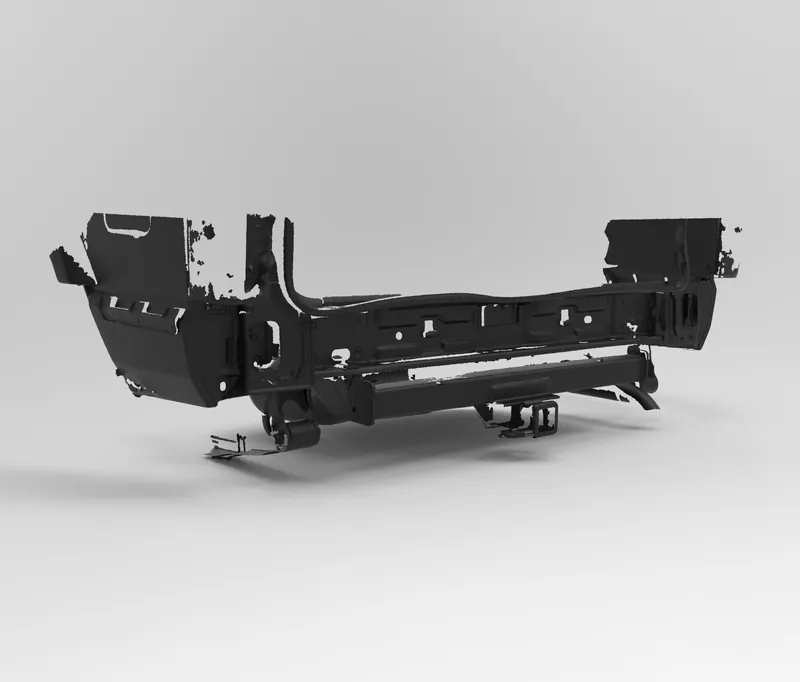

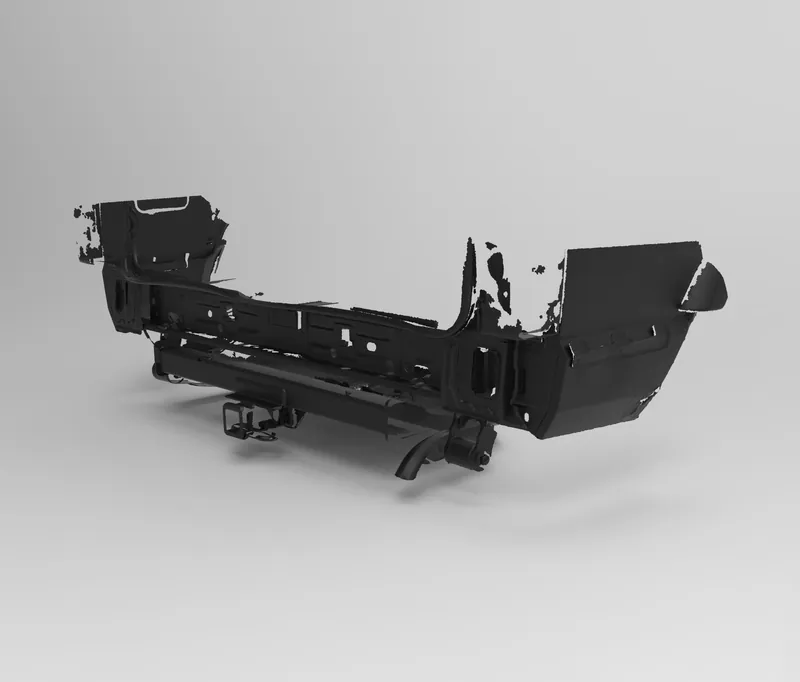

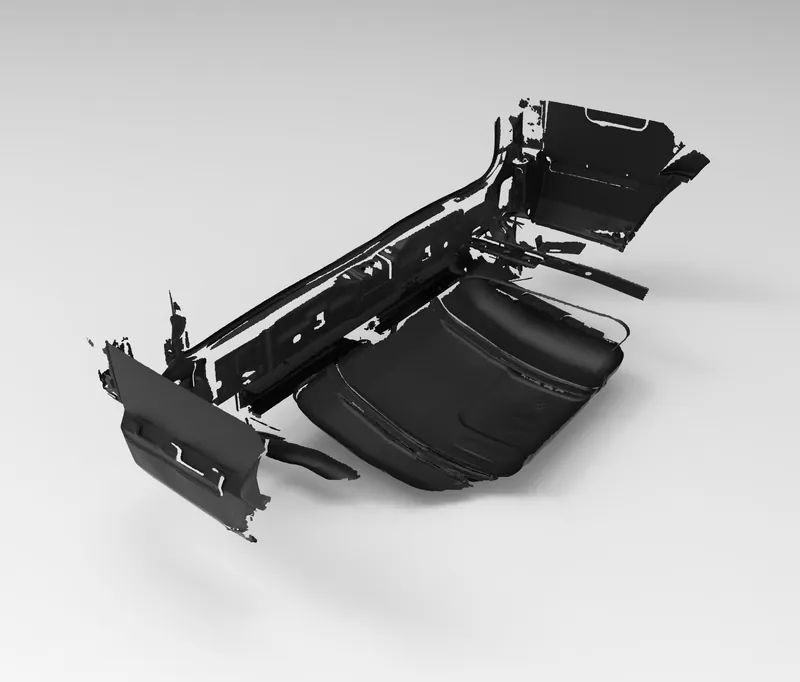

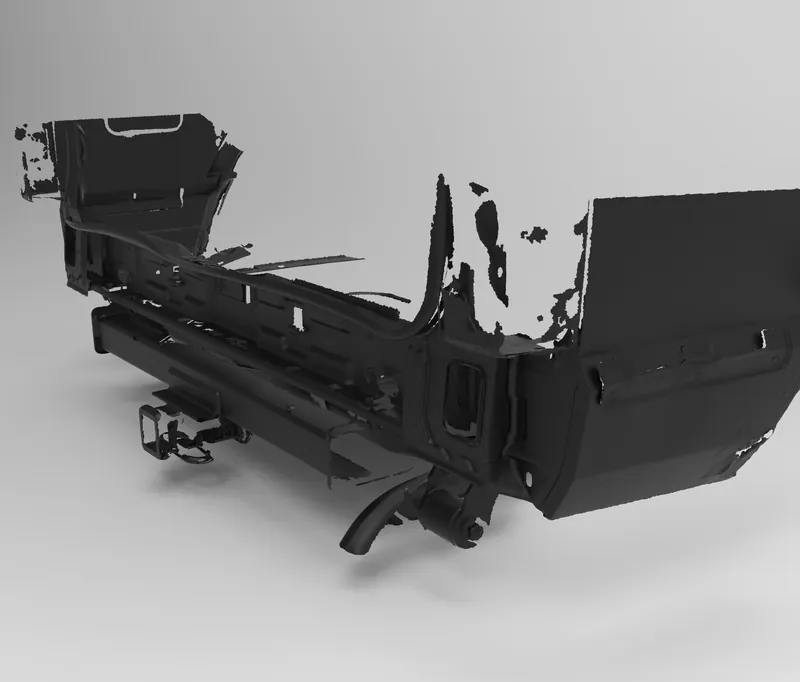

File 1: Rear bumper area of a Jeep Cherokee XJ (right-hand file): rear crossmember and bumper mounting face, tail panel, lower rear quarter panels and valance, fuel tank with its straps, hitch receiver bracket, rear leaf-spring rear eye area. NOT included: bumper cover itself, tail lamps above the bumper line, cabin, anything forward of the fuel tank.

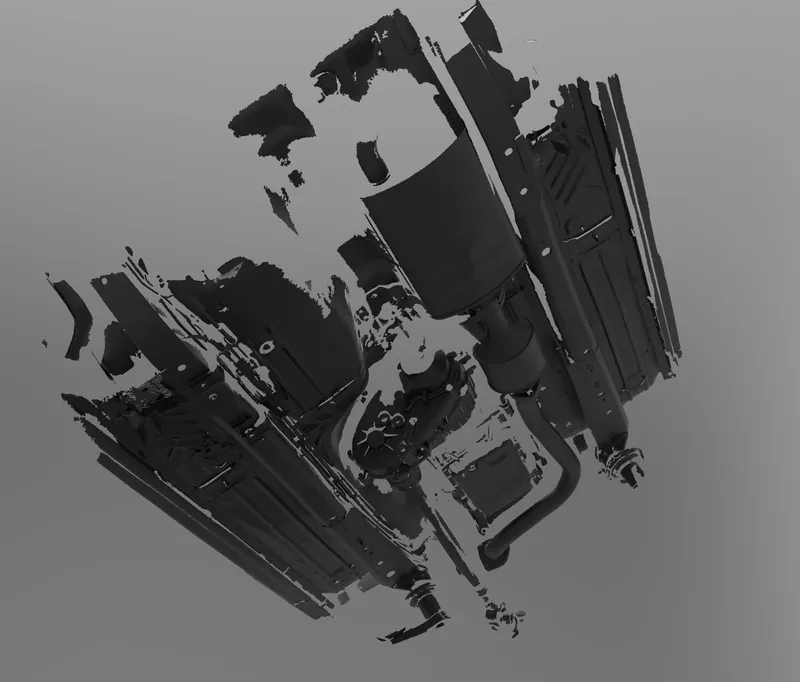

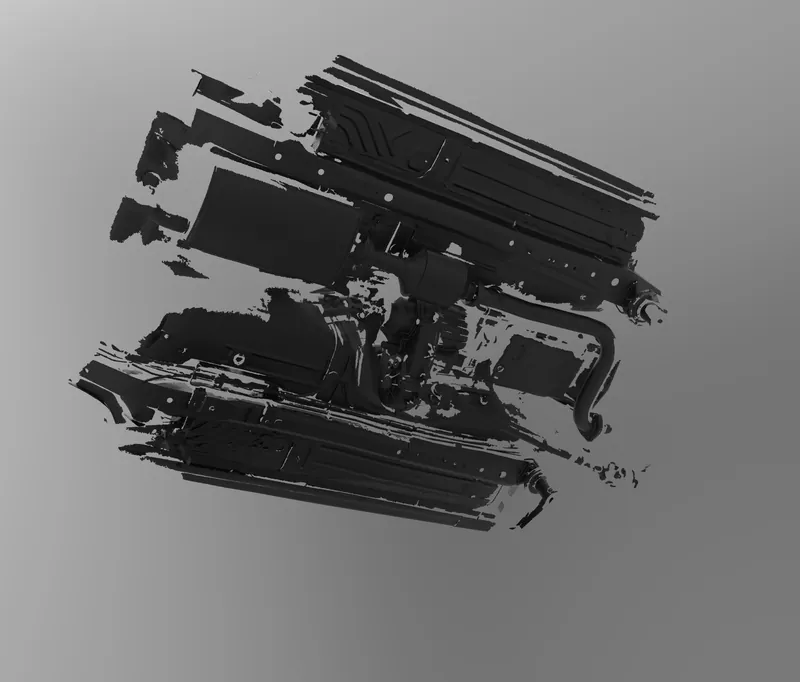

File 2: Underbody floor from the muffler at the rear to the transmission and transfer case: unibody frame rails, exhaust with muffler and catalytic converter, rear driveshaft, transfer case, transmission pan. Ends before the front axle: no front axle, no front control arm pickup points; the transmission crossmember zone is inside the covered length but the scan has gaps around the transfer case. Measured from the file on 2026-09-29 (binary STL, 1,798,501 triangles).
Files in the download
| File | Size | Measured extent, L × W × H, mm (in) | Triangles |
|---|---|---|---|
| File 1: Rear end, underbody (STL) | 368 MB | 1,764 × 557 × 71569.5 × 21.9 × 28.1 in | 1,338,259 |
| File 2: Underbody (STL) | 89.9 MB | 2,283 × 1,520 × 1,06689.9 × 59.8 × 41.9 in | 1,798,501 |
Extents are length × width × height of each file as measured, in millimeters at 1:1 scale, with inches below.
What it is for
- Rear bumpers and tow mounts
- Tailgate and bed accessories
- Fitment checks before you cut metal
Questions buyers ask
Is this a real 3D scan or a model made from photos?
It is a 3D scan of a real Jeep Cherokee, so the surfaces are at true scale and can be measured. The images on this page are renders of the included file, not photos of a finished build. How to tell a real scan from a model made from photos.
Which file formats are included?
STL. STL opens in every major CAD and mesh tool. Which format your workflow needs: STL, STEP or OBJ.
How do I get the files?
Buy it on Etsy. The files are larger than Etsy's 20 MB download limit, so the shop sends a download link after purchase; it is a straight browser download with no account needed.
Sizes and triangle counts are measured from the files (catalog of 2026-10-05). The images on this page are renders of the included file, not photos of a finished build. Questions: info@cadgaragepro.com.
