Ford Ranger Raptor PX3 2019+ Bed and Rear End 3D Scan
Bed and rear end 3D scan of the 2019+ Ford Ranger Raptor PX3, captured from a real vehicle. 2,387,211 measured triangles, STL format, a 119 MB download. Sold on Etsy for $45; the shop sends a download link after purchase.
Notes
- Dimensions in millimeters, measured from the file: its overall extent, length × width × height. The file is at 1:1 scale; units verified.

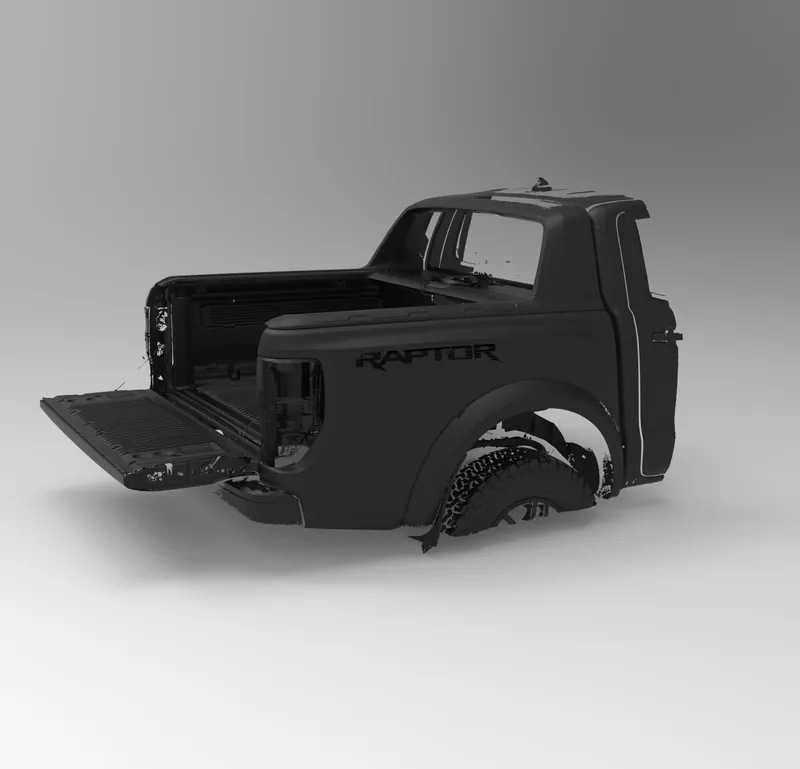

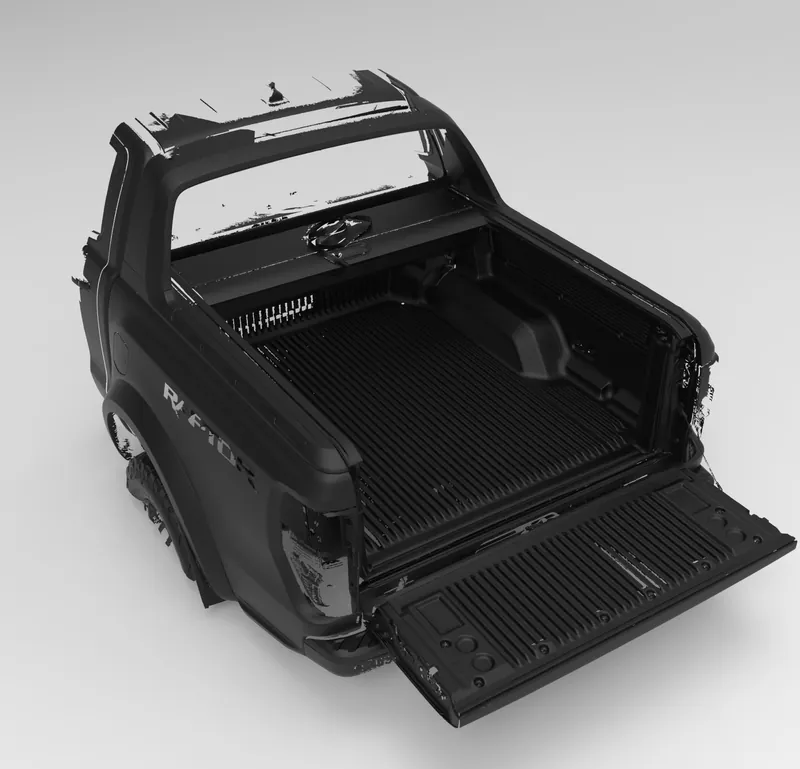

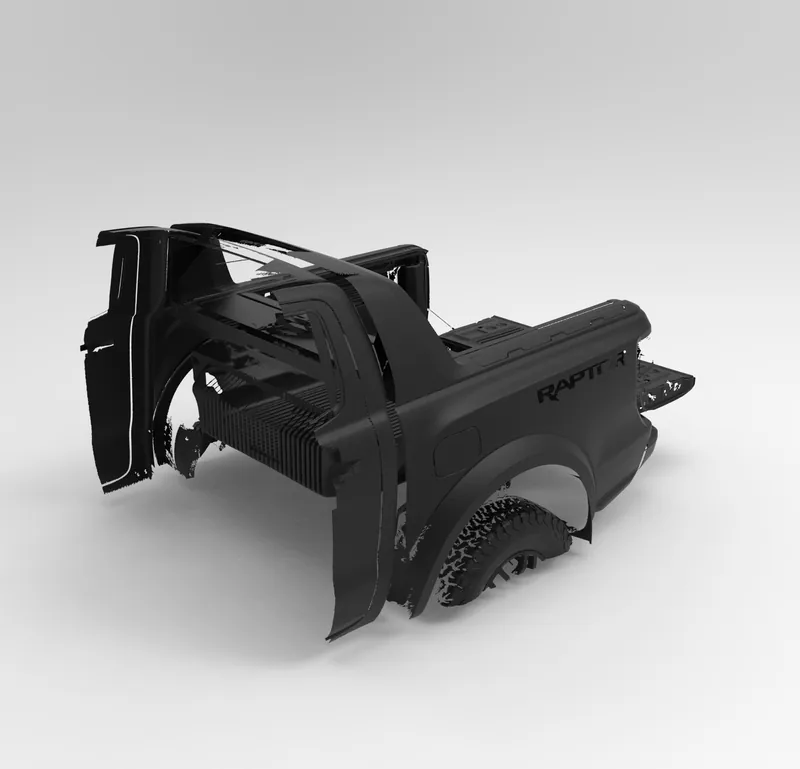

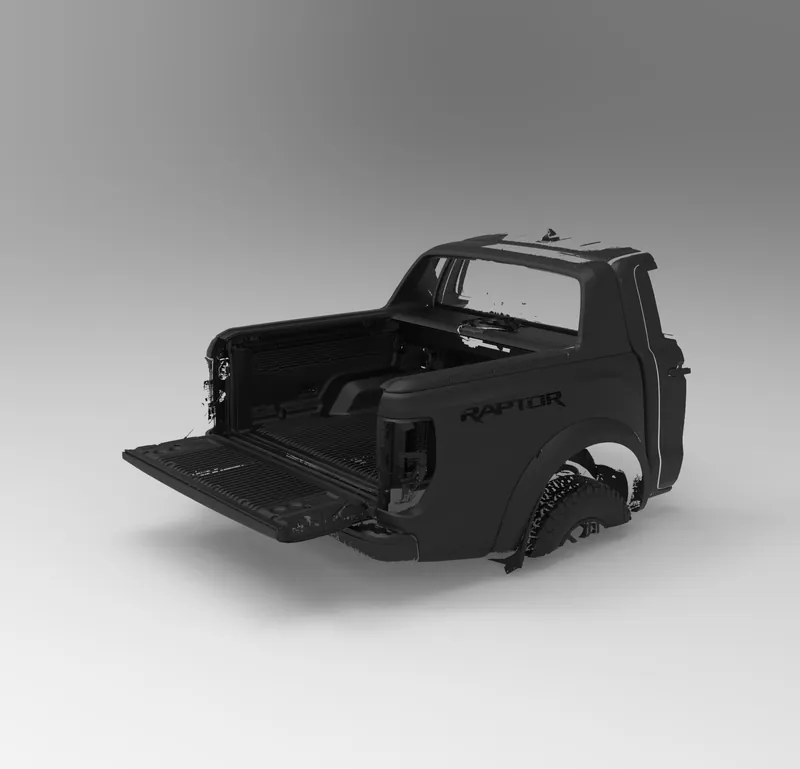

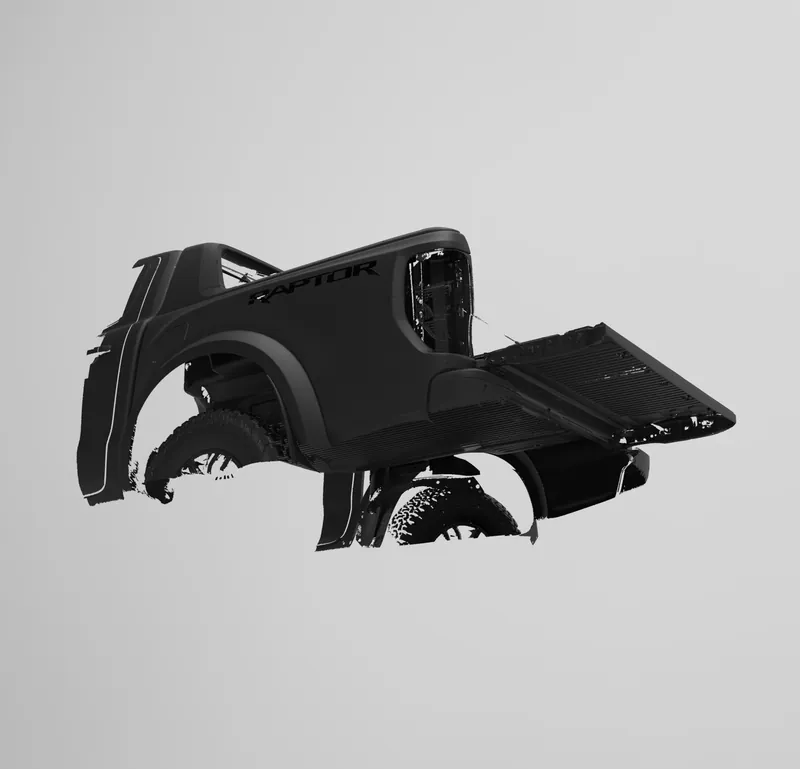

- View A and the other views are renders of the included file, not photos of a finished build. Not to scale.
- Delivered as STL, 119 MB: the shop sends a download link after purchase.
Specifications measured from the scan file
| Vehicle | Ford Ranger Raptor PX3 |
|---|---|
| Model years | 2019+ |
| What it is | Bed and rear end 3D scan |
| Formats | STL |
| Triangles | 2,387,211 |
| Overall size (L × W × H) | 2,532 × 2,031 × 1,478 mm 99.7 × 80.0 × 58.2 in |
| Download size | 119 MB |
What the scan covers
In this file
- Bed
- Tailgate
- Rear end
- Wheels
Not in this file
- Frame and underbody beneath the bed
- Cabin interior
- Anything forward of the rear doors
Bed of a 2019+ Ford Ranger Raptor double cab with the plastic bedliner in place, tailgate OPEN (folded down), rear bumper, rear wheel arches with fender flares and both rear wheels, and the rear part of the cab (back wall, rear window, rear doors partly, roof rear edge). NOT included: frame and underbody beneath the bed, cabin interior, anything forward of the rear doors.
Files in the download
| File | Size | Measured extent, L × W × H, mm (in) | Triangles |
|---|---|---|---|
| Bed, tailgate, rear end, wheels (STL) | 119 MB | 2,532 × 2,031 × 1,47899.7 × 80.0 × 58.2 in | 2,387,211 |
Extents are length × width × height of each file as measured, in millimeters at 1:1 scale, with inches below.
What it is for
- Rear bumpers and tow mounts
- Tailgate and bed accessories
- Fitment checks before you cut metal
Questions buyers ask
Is this a real 3D scan or a model made from photos?
It is a 3D scan of a real Ford Ranger Raptor, so the surfaces are at true scale and can be measured. The images on this page are renders of the included file, not photos of a finished build. How to tell a real scan from a model made from photos.
Which file formats are included?
STL. STL opens in every major CAD and mesh tool. Which format your workflow needs: STL, STEP or OBJ.
What units is the file in?
Millimeters, at 1:1 scale. The overall size above was measured from the file itself.
Which model years does it fit?
The Ford Ranger Raptor PX3 from model year 2019 on. Model years differ between markets for some vehicles; check the generation code if you are outside the market the vehicle was scanned in. Ford Ranger Generations by Market: Same Year, Different Truck.
How do I get the files?
Buy it on Etsy. The files are larger than Etsy's 20 MB download limit, so the shop sends a download link after purchase; it is a straight browser download with no account needed.
More for the Ford Ranger Raptor PX3
Sizes and triangle counts are measured from the files (catalog of 2026-10-05). The images on this page are renders of the included file, not photos of a finished build. Questions: info@cadgaragepro.com.
