Ford F-350 Super Duty 2017-2022 4th Gen Rear End 3D Scan (STL)
Rear end 3D scan of the 2017-2022 Ford F-350 Super Duty 4th gen, captured from a real vehicle. 1,427,535 measured triangles, STL format, a 71.4 MB download. Sold on Etsy for $45; the shop sends a download link in Etsy messages, usually the same day.
Notes
- View A and the other views are renders of the included file, not photos of a finished build. Not to scale.
- 2 files in the download; each file's measured extent is in the files table.
- Delivered as STL, 71.4 MB: the shop sends a download link in Etsy messages, usually the same day.
Specifications measured from the scan file
| Vehicle | Ford F-350 Super Duty 4th gen |
|---|---|
| Model years | 2017-2022 |
| What it is | Rear end 3D scan |
| Formats | STL |
| Triangles (all files) | 1,427,535 |
| Overall size | per file, in the files table |
| Download size | 71.4 MB |
What the scan covers

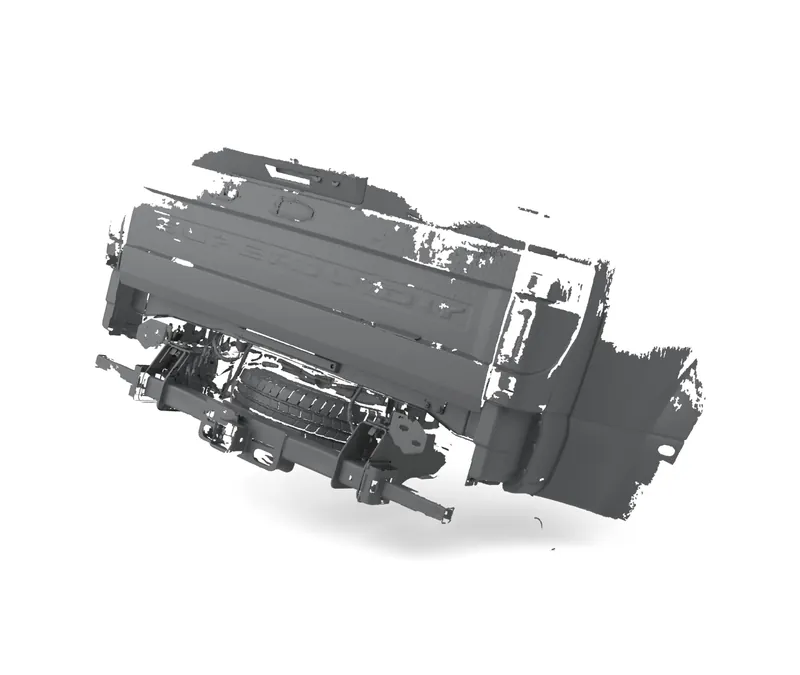

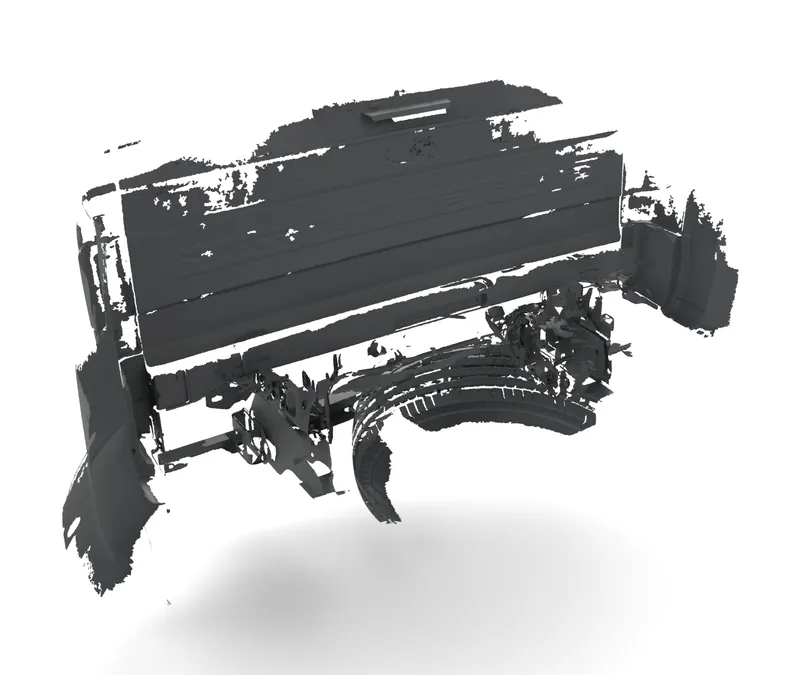

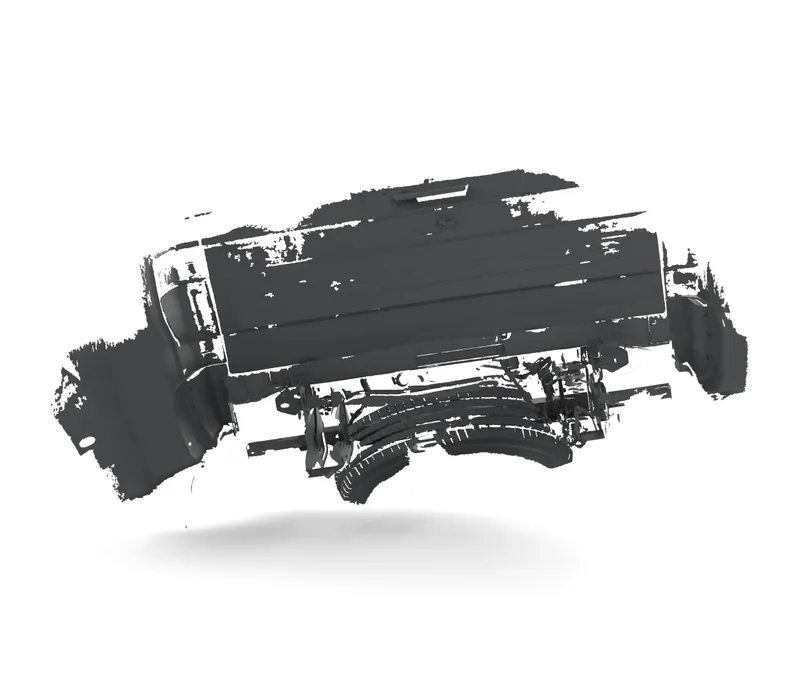

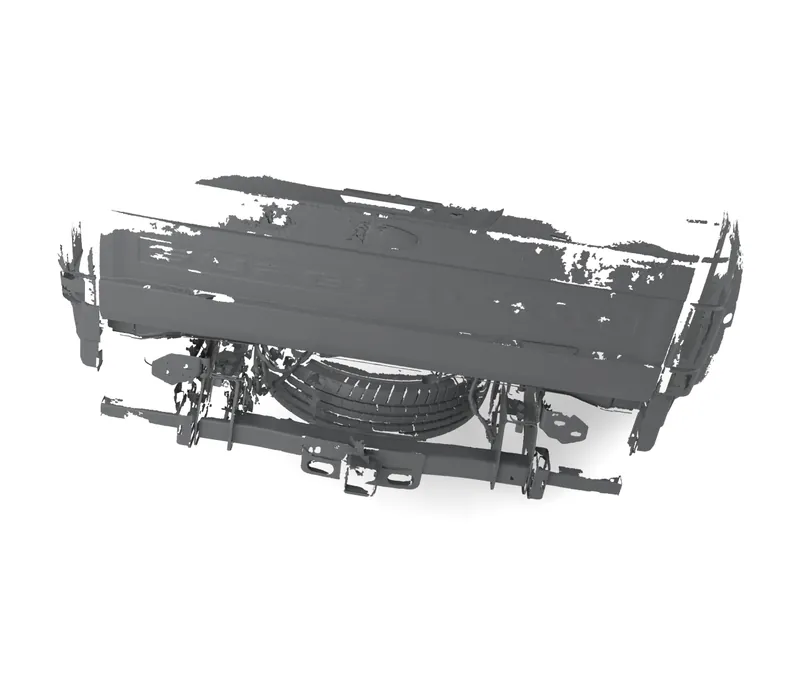

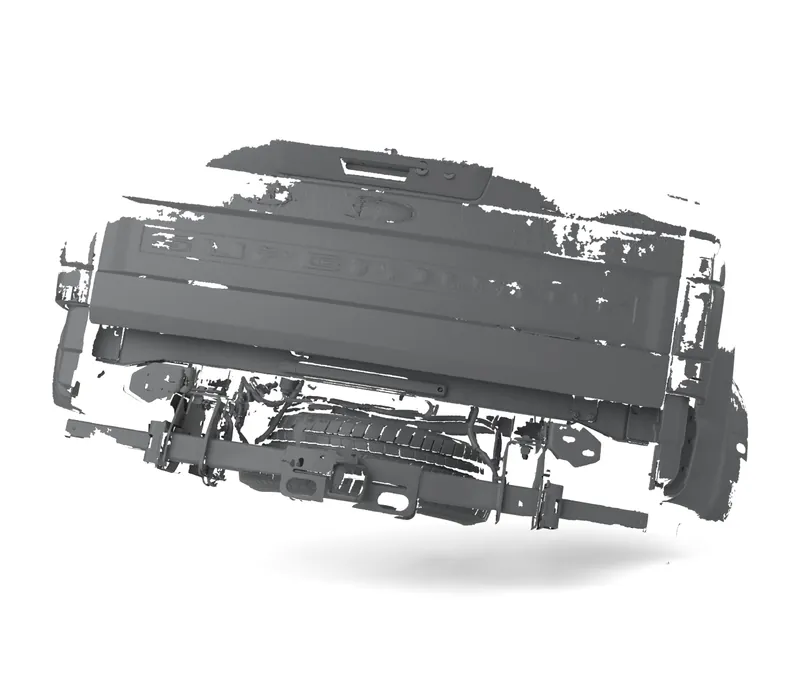

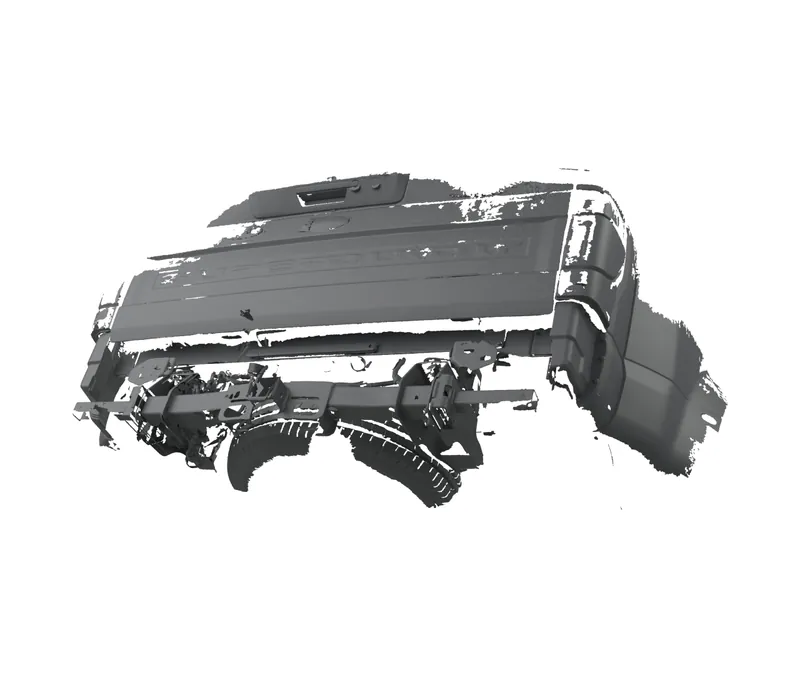

File 1: rear end with the bumper off: tailgate, frame ends, hitch, spare tyre
Files in the download
| File | Size | Measured extent, mm (in) | Triangles |
|---|---|---|---|
| File 1: Rear end 3D scan (STL) | 33.1 MB | not measured yet | 662,117 |
| File 2: Rear end 3D scan (STL) | 38.3 MB | not measured yet | 765,418 |
Measured from our scans
From these scans we can measure, for example:
- Frame-rail outer width and the spacing of the rails
- Bumper mount points and bolt spacing on the frame ends
- Tow-bar and rear frame mount spacing
- The rear body and tail light edges a rear bumper has to clear
We do not print every figure here. Ask us for the measurements you need and we take them from the scans for you, usually the same day; every one of them is in the files themselves once you have them.
What it is for
- Rear bumpers and tow mounts
- Tailgate and bed accessories
- Fitment checks before you cut metal
Guide: Designing a DIY Bumper from a 3D Scan: Scan to Cut List
Every file for this job: Pickup 3D scans and models for tray and canopy design
Answered with pictures
-

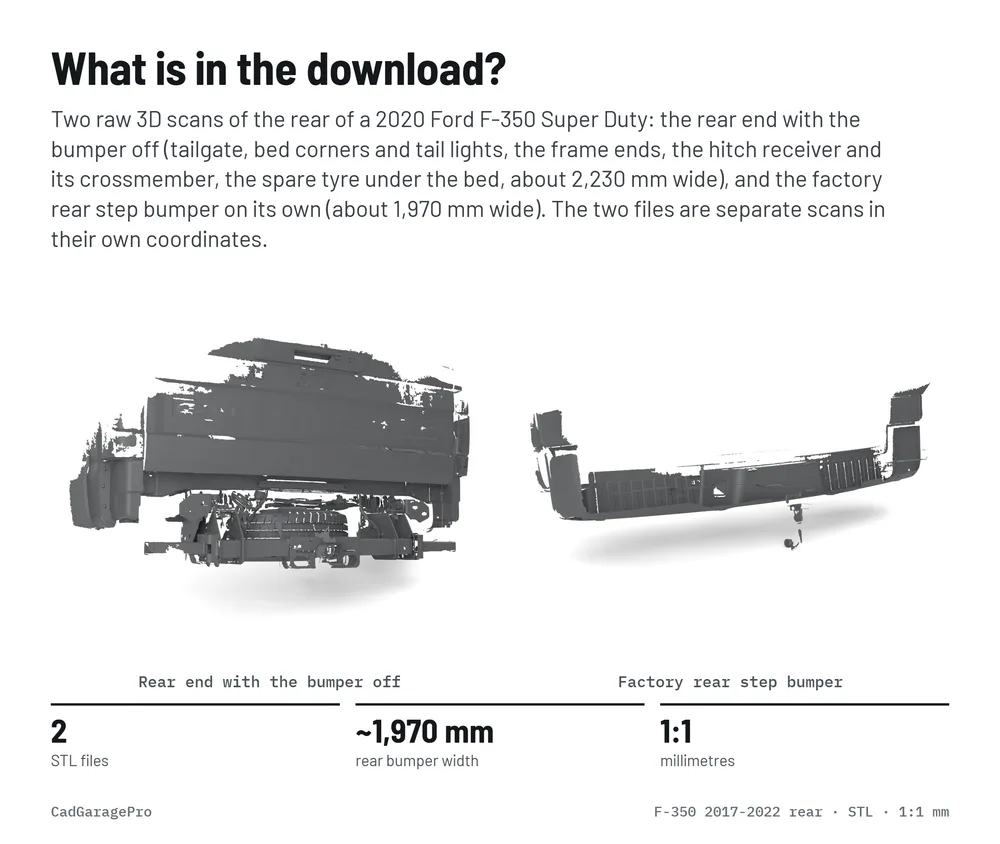

What is in the download?
Two raw 3D scans of the rear of a 2020 Ford F-350 Super Duty: the rear end with the bumper off (tailgate, bed corners and tail lights, the frame ends, the hitch receiver and its crossmember, the spare tyre under the bed, about 2,230 mm wide), and the factory rear step bumper on its own (about 1,970 mm wide). The two files are separate scans in their own coordinates.
-

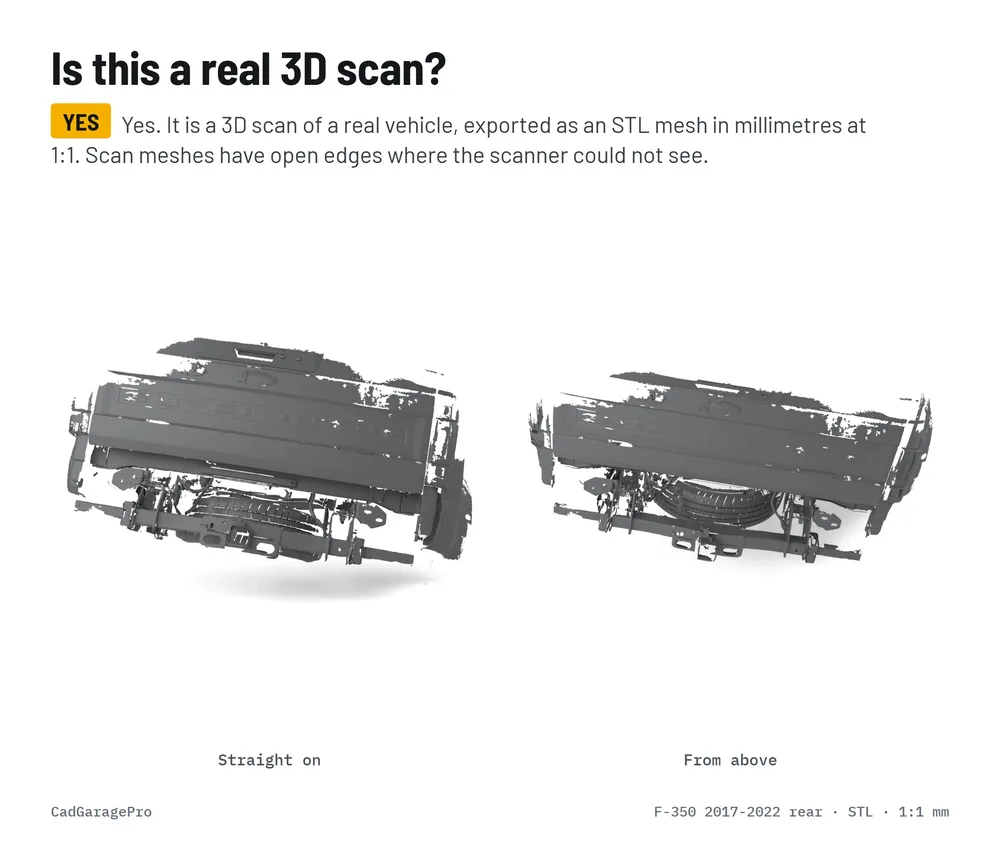

Is this a real 3D scan?
Yes. It is a 3D scan of a real vehicle, exported as an STL mesh in millimetres at 1:1. Scan meshes have open edges where the scanner could not see.
-

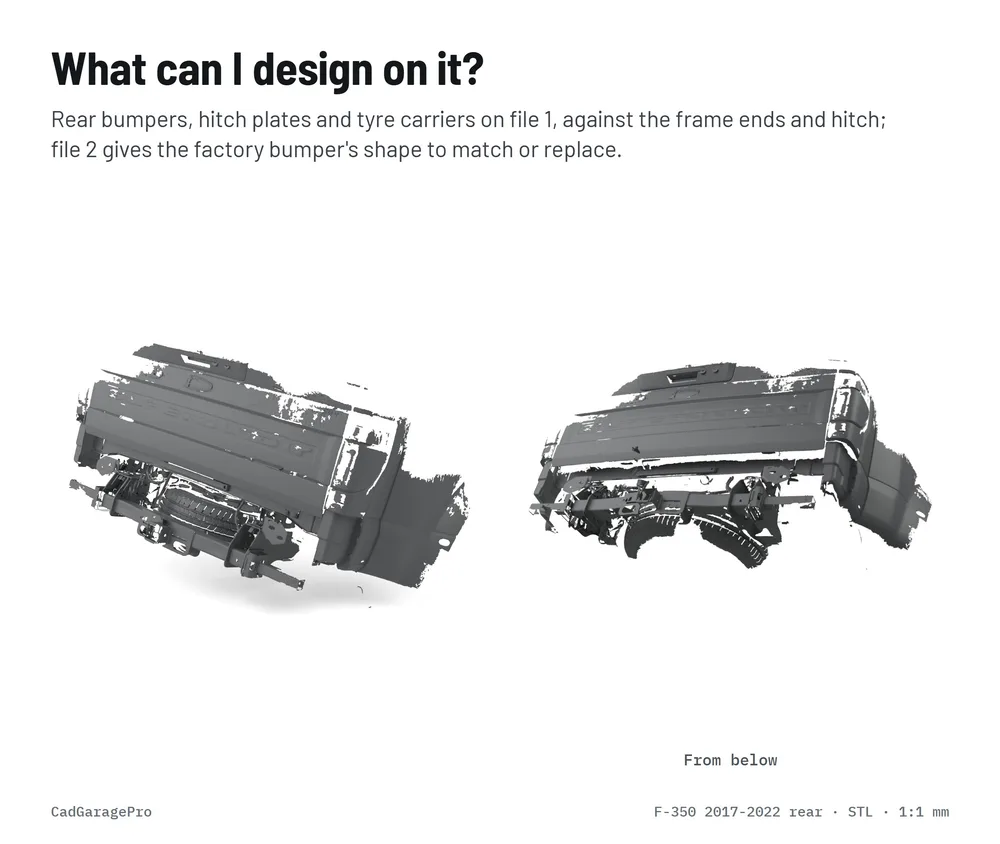

What can I design on it?
Rear bumpers, hitch plates and tyre carriers on file 1, against the frame ends and hitch; file 2 gives the factory bumper's shape to match or replace.
-

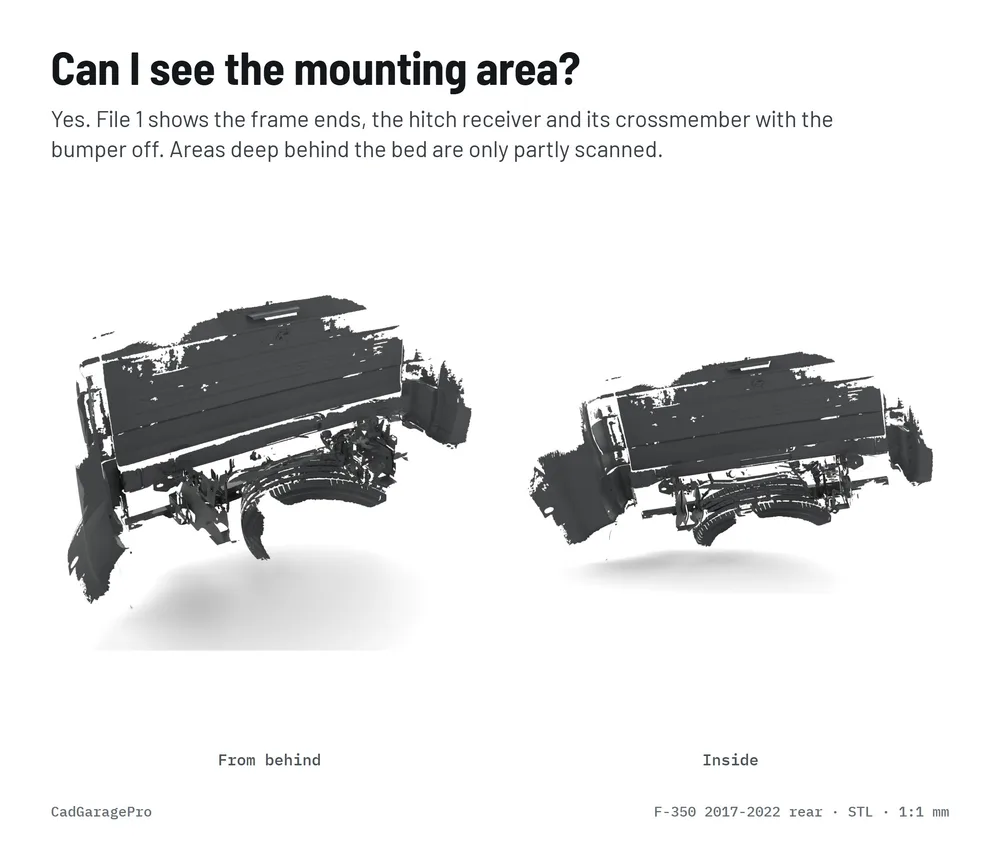

Can I see the mounting area?
Yes. File 1 shows the frame ends, the hitch receiver and its crossmember with the bumper off. Areas deep behind the bed are only partly scanned.
-

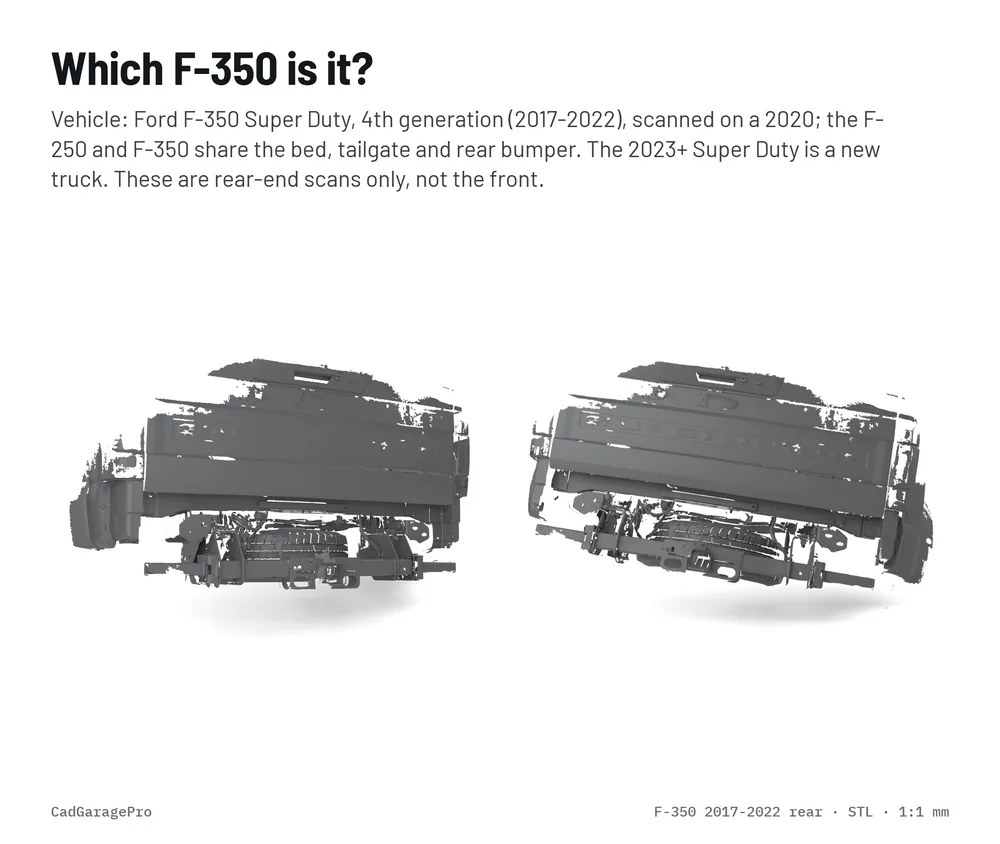

Which F-350 is it?
Vehicle: Ford F-350 Super Duty, 4th generation (2017-2022), scanned on a 2020; the F-250 and F-350 share the bed, tailgate and rear bumper. The 2023+ Super Duty is a new truck. These are rear-end scans only, not the front.
-
Check it fits before you buy
Questions buyers ask
Is this a real 3D scan or a model made from photos?
It is a 3D scan of a real Ford F-350 Super Duty, so the surfaces are at true scale and can be measured. How to tell a real scan from a model made from photos.
Which file formats are included?
Which model years does it fit?
The Ford F-350 Super Duty 4th gen for model years 2017-2022. Model years differ between markets for some vehicles; check the generation code if you are outside the market the vehicle was scanned in.
How do I get the files?
On Etsy: the shop sends a download link in Etsy messages after purchase, usually the same day. How delivery works.
What may I do with the files?
You may use the files for your own personal and commercial design and fabrication work, including parts you make and sell. Please do not share, resell or upload the files, or modified copies of them, in whole or in part. The licence of every file.
