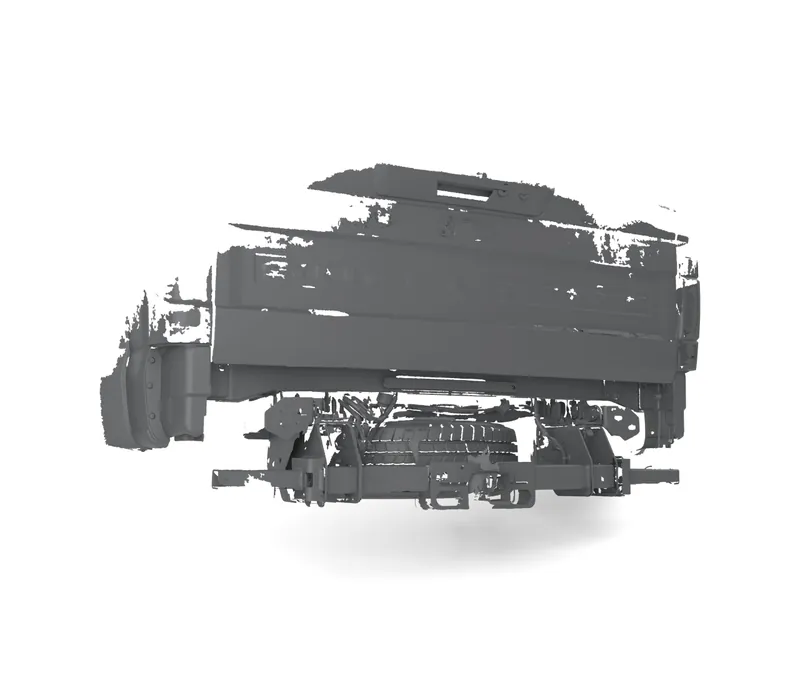

2017-2022 Ford F-350 Super Duty 4th Gen 3D Scan STL for Rear Bumper and Tow Mount Design
1 product for the Ford F-350 Super Duty 4th gen: rear end 3D scan; the file on sale fits model years 2017-2022. It is on sale in our Etsy shop. Below the file: when this generation was sold in each market, its facelifts and how to tell it apart.
By job: Pickup 3D scans and models for tray and canopy design
Generations and years: Ford F-250 Super Duty generations by year
Every Ford F-350 Super Duty 4th gen file at a glance
| Dwg no | File | L × W × H, mm | Triangles | Formats | Download | Price | Summary |
|---|---|---|---|---|---|---|---|
| CGP-F350-20-REAR-2 | 2017-2022 Rear End 3D Scan (STL) | 2 files, sizes per file | 1,427,535 | STL | 71.4 MB | $45 on Etsy: Ford F-350 Super Duty 2017-2022 4th Gen Rear End 3D Scan (STL) | 2 files, sizes per file · 1,427,535 triangles · STL · 71.4 MB |
Sizes are length × width × height of the file as measured, in millimeters at 1:1 scale, with the size in inches.
The file
Measured from our scans
From these scans we can measure, for example:
- Frame-rail outer width and the spacing of the rails
- Bumper mount points and bolt spacing on the frame ends
- Tow-bar and rear frame mount spacing
- The rear body and tail light edges a rear bumper has to clear
We do not print every figure here. Ask us for the measurements you need and we take them from the scans for you, usually the same day; every one of them is in the files themselves once you have them.
About the 4th generation Super Duty (aluminum body)
How to tell it apart: Wide plastic shield grille that runs straight into the headlights with no separate stepped fenders, 13-inch blue oval and SUPER DUTY stamped into the aluminum hood.
| Market | Sold |
|---|---|
| Australia | Not sold |
| United States | 2017 model year to 2022 model year |
| Europe and the UK | Not on record |
| South Africa | Not on record |
| Middle East | Not on record |
- 2020 model year refresh (Revealed 5 February 2019): Revised grille and tailgate, new wheels; new 7.3L gas V8, updated 6.7L diesel, 10-speed automatic.
Dates are first and last sale or production as our sources give them; "Not on record" means no source we could open gives the date. The sources, and the other Ford F-250 Super Duty generations, are on the Ford F-250 Super Duty generations by year page. Not sure a file fits your truck? Ask us with its market and build date.
