Toyota Tundra 2014-2021 2nd Gen Part 3D Scan (STL)
Part 3D scan of the 2014-2021 Toyota Tundra 2nd gen (XK50), captured from a real vehicle. 9,940,664 measured triangles, STL format, a 497 MB download. Sold on Etsy for $55; the shop sends a download link in Etsy messages, usually the same day.
Notes

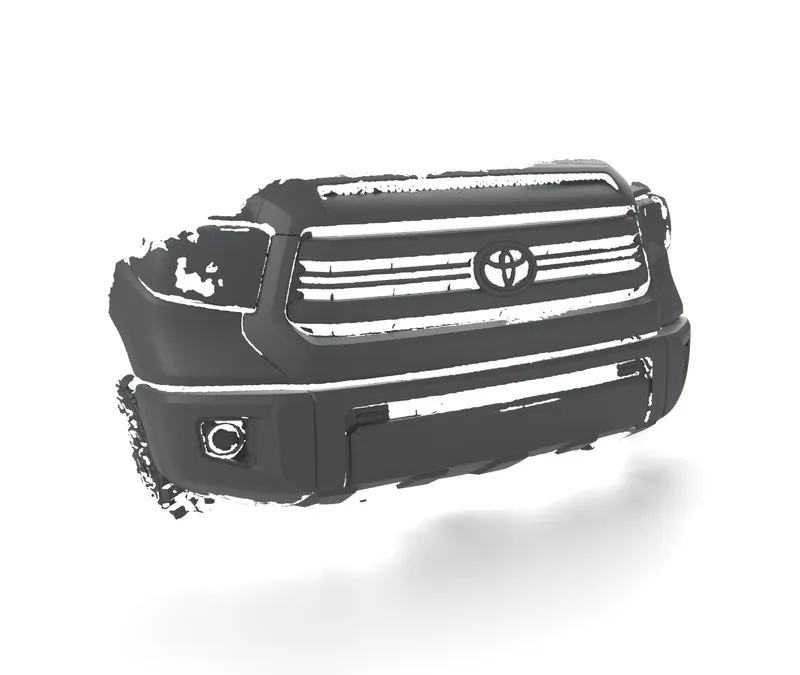

- View A and the other views are renders of the included file, not photos of a finished build. Not to scale.
- 4 files in the download; each file's measured extent is in the files table.
- Delivered as STL, 497 MB: the shop sends a download link in Etsy messages, usually the same day.
Specifications measured from the scan file
| Vehicle | Toyota Tundra 2nd gen (XK50) |
|---|---|
| Model years | 2014-2021 |
| What it is | Part 3D scan |
| Formats | STL |
| Triangles (all files) | 9,940,664 |
| Overall size | per file, in the files table |
| Download size | 497 MB |
What the scan covers

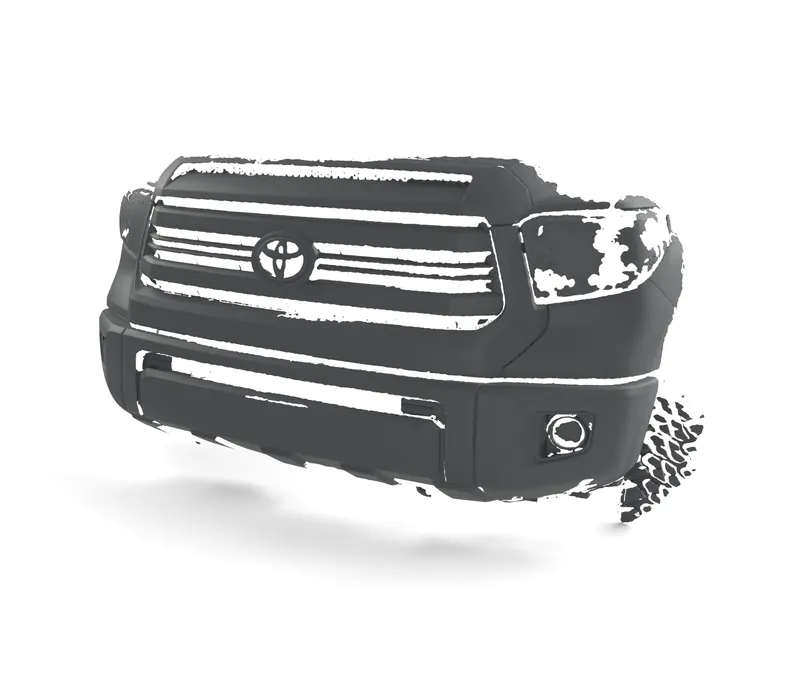

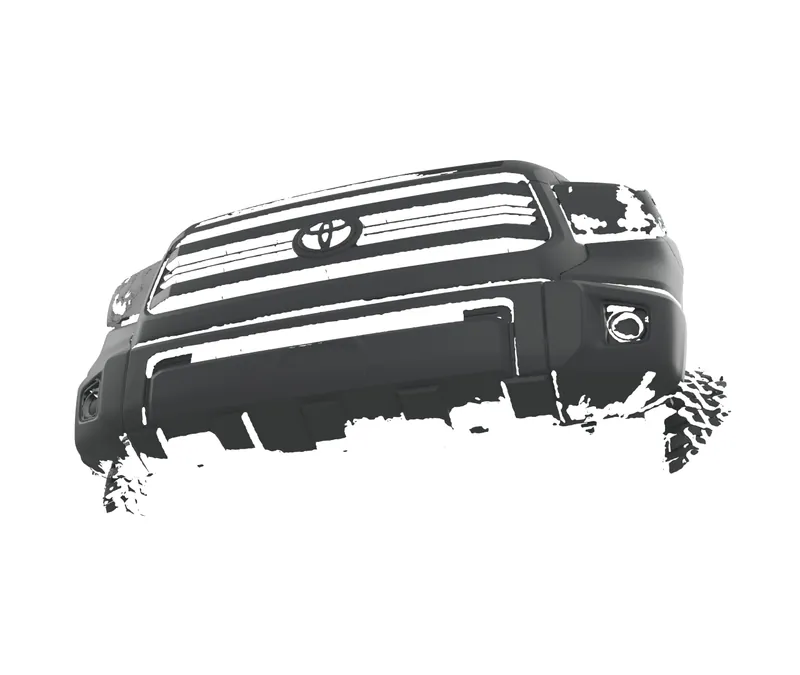

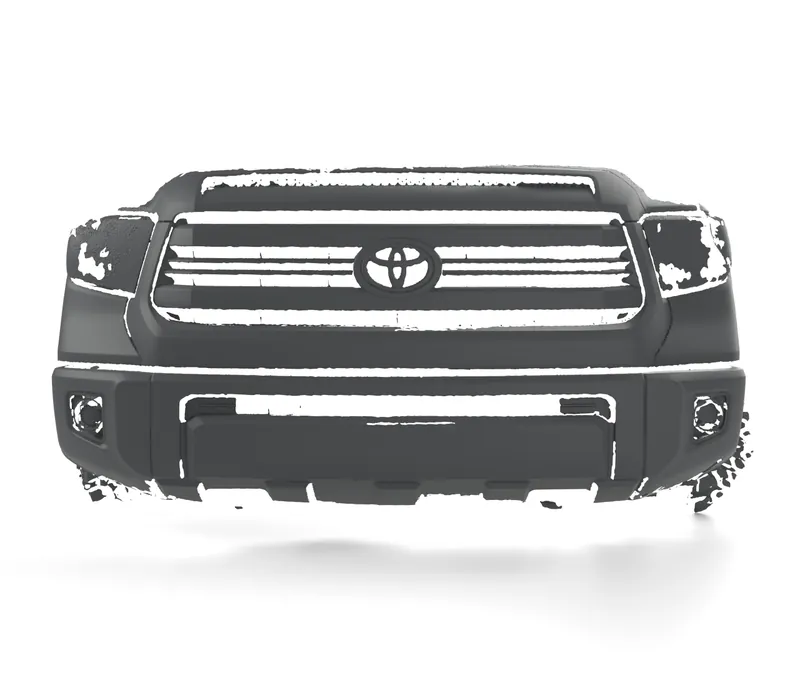

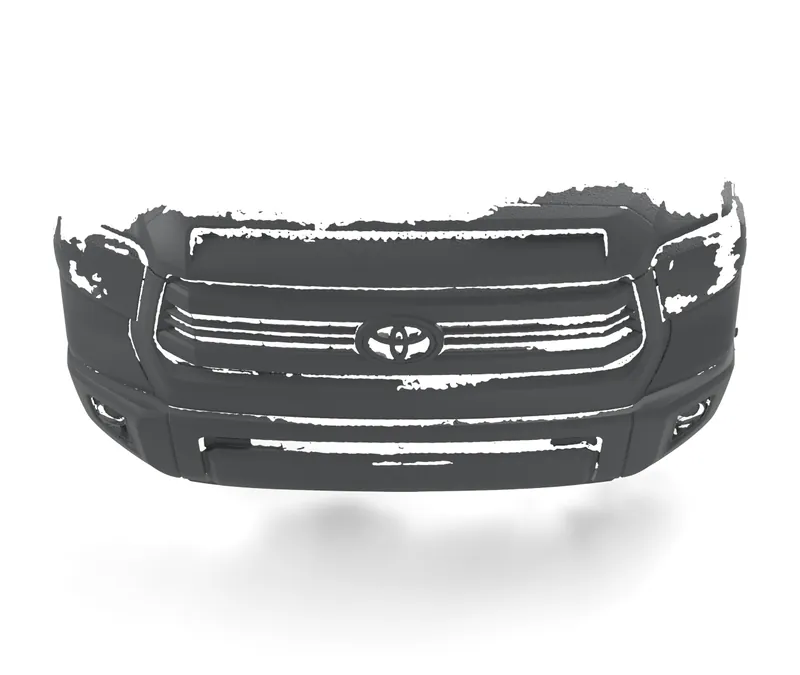

File 1: front bumper with the grille and fog lights
File 4: rear with the bumper off: hitch crossmember, spare tyre, bed corners
Files in the download
| File | Size | Measured extent, mm (in) | Triangles |
|---|---|---|---|
| File 1: Part 3D scan (STL) | 51.2 MB | not measured yet | 1,023,160 |
| File 2: Part 3D scan (STL) | 157 MB | not measured yet | 3,131,802 |
| File 3: Part 3D scan (STL) | 184 MB | not measured yet | 3,670,389 |
| File 4: Part 3D scan (STL) | 106 MB | not measured yet | 2,115,313 |
Measured from our scans
From these scans we can measure, for example:
- Bumper mount points and bolt spacing on the frame ends
We do not print every figure here. Ask us for the measurements you need and we take them from the scans for you, usually the same day; every one of them is in the files themselves once you have them.
What it is for
- Mounts and brackets for this part
- Fitment checks before you cut metal
Answered with pictures
-

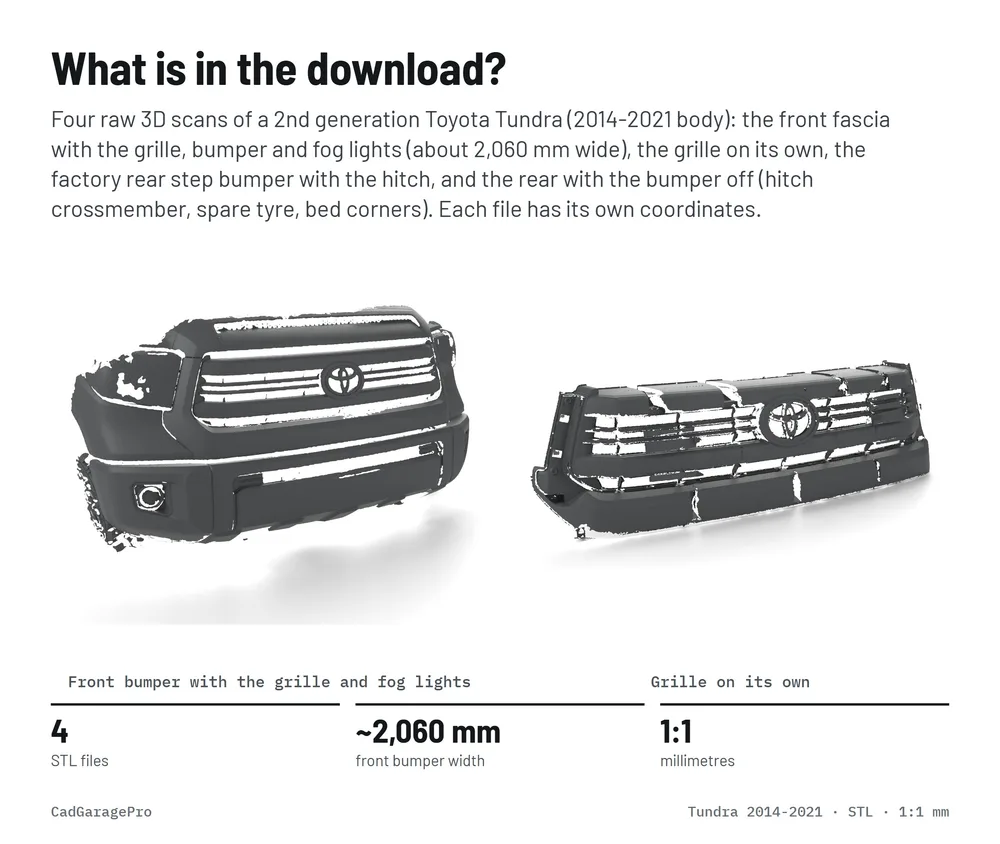

What is in the download?

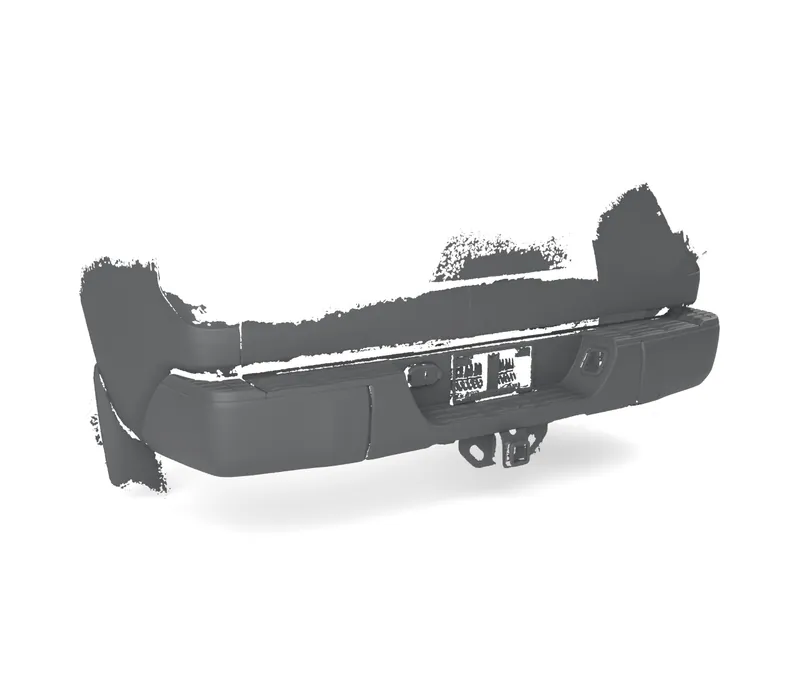

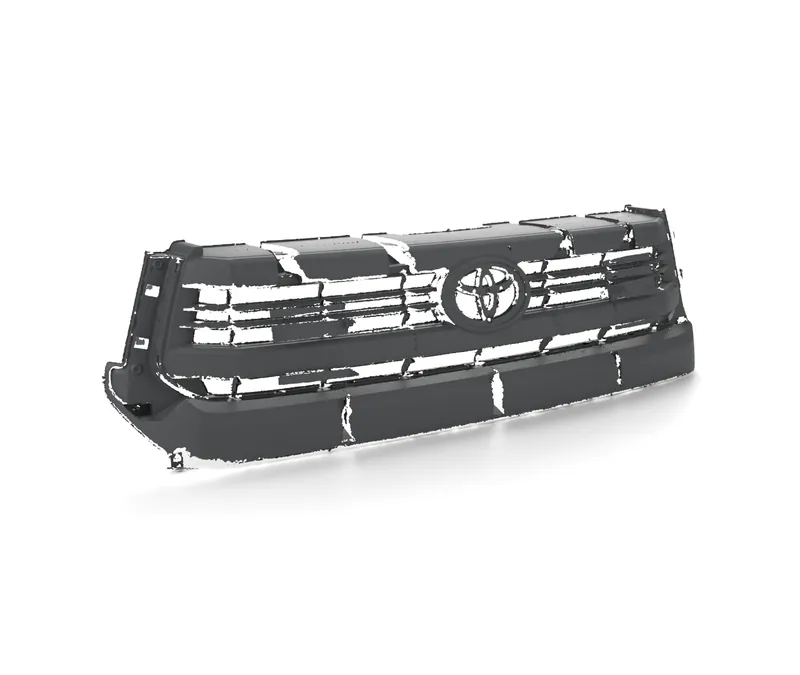

Four raw 3D scans of a 2nd generation Toyota Tundra (2014-2021 body): the front fascia with the grille, bumper and fog lights (about 2,060 mm wide), the grille on its own, the factory rear step bumper with the hitch, and the rear with the bumper off (hitch crossmember, spare tyre, bed corners). Each file has its own coordinates.
-

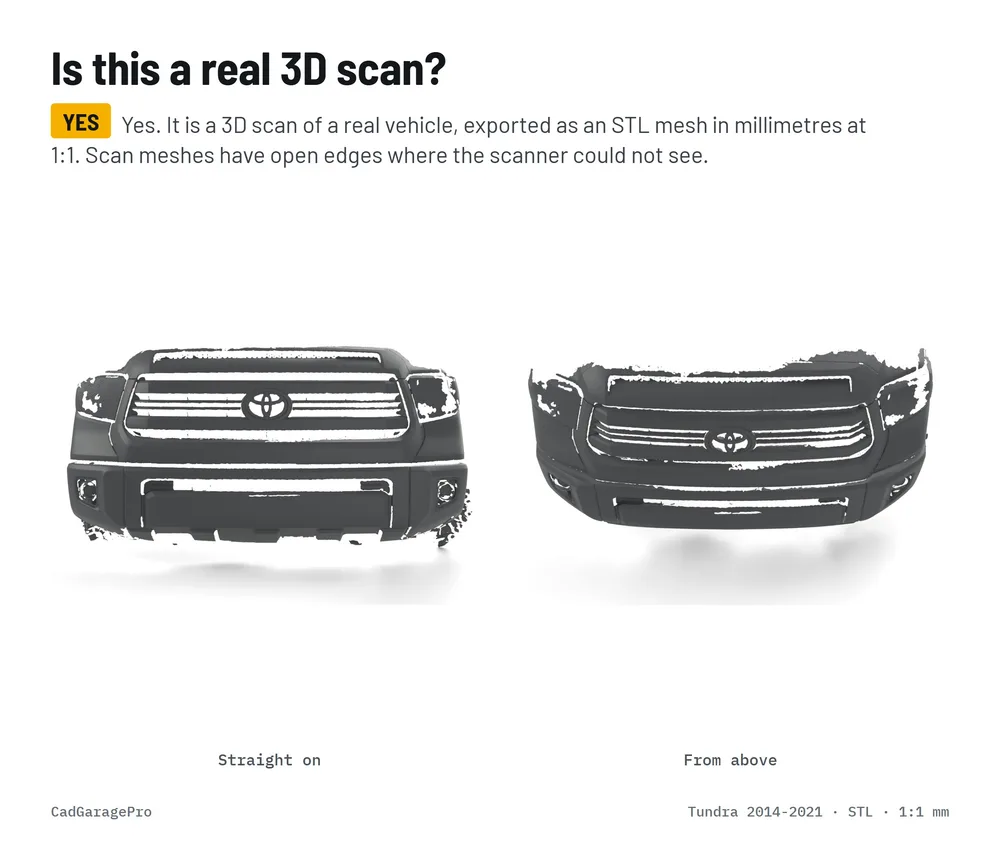

Is this a real 3D scan?
Yes. It is a 3D scan of a real vehicle, exported as an STL mesh in millimetres at 1:1. Scan meshes have open edges where the scanner could not see.
-

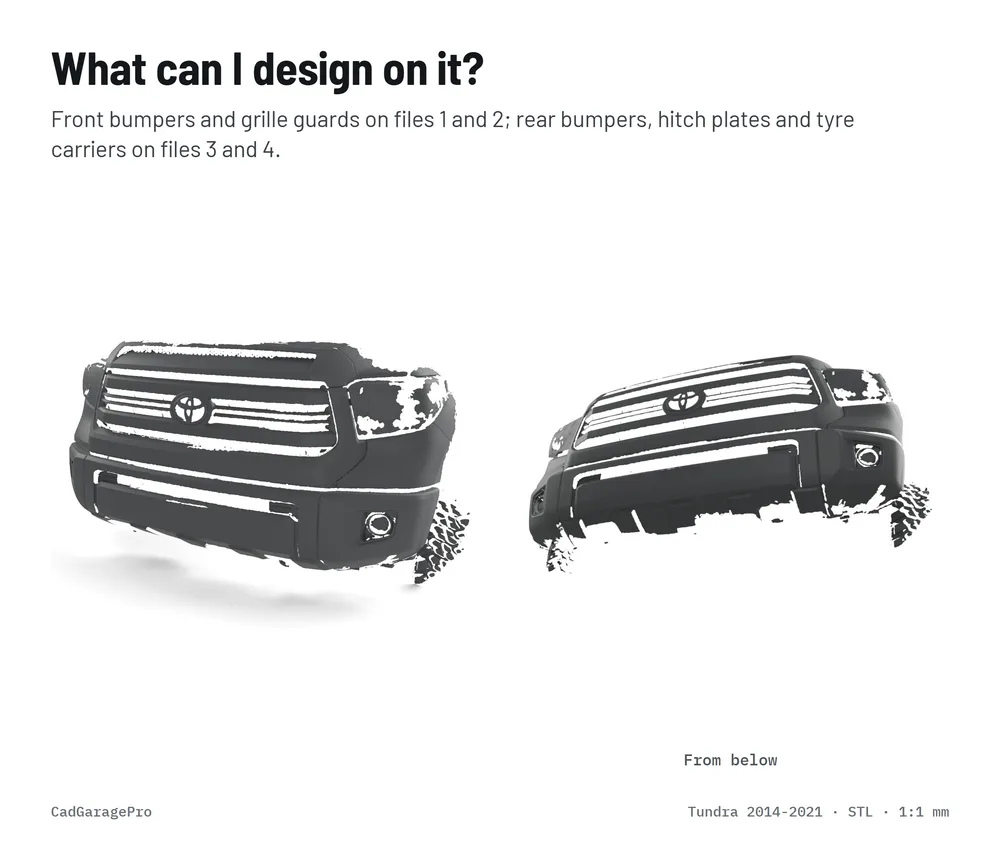

What can I design on it?
Front bumpers and grille guards on files 1 and 2; rear bumpers, hitch plates and tyre carriers on files 3 and 4.
-

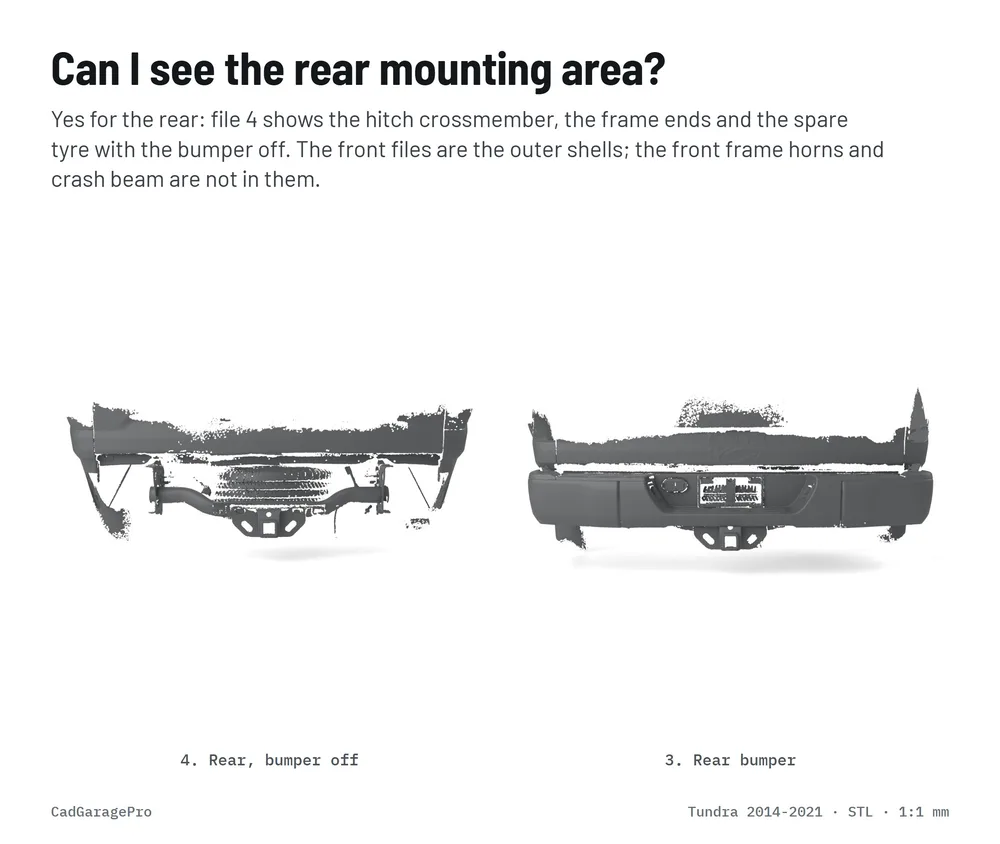

Can I see the rear mounting area?

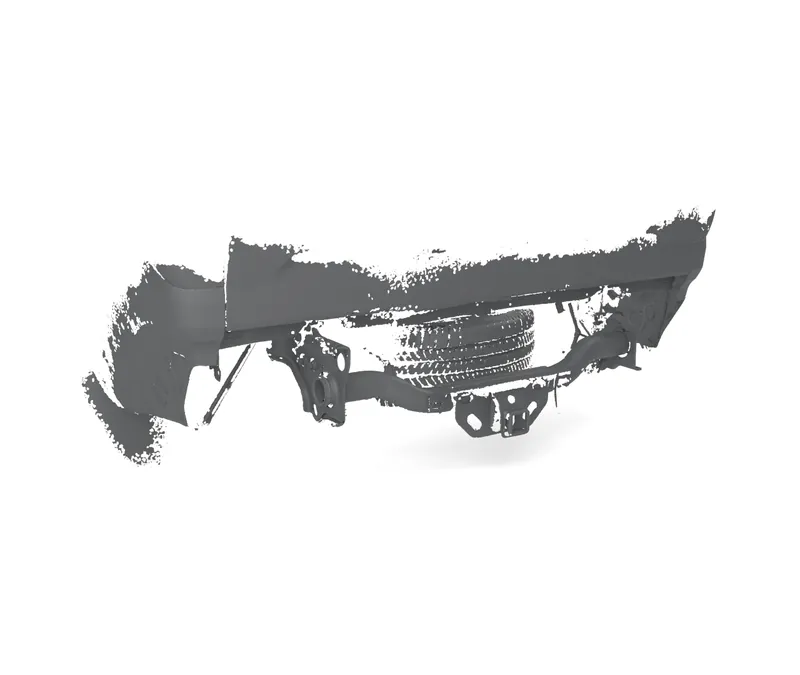

Yes for the rear: file 4 shows the hitch crossmember, the frame ends and the spare tyre with the bumper off. The front files are the outer shells; the front frame horns and crash beam are not in them.
-

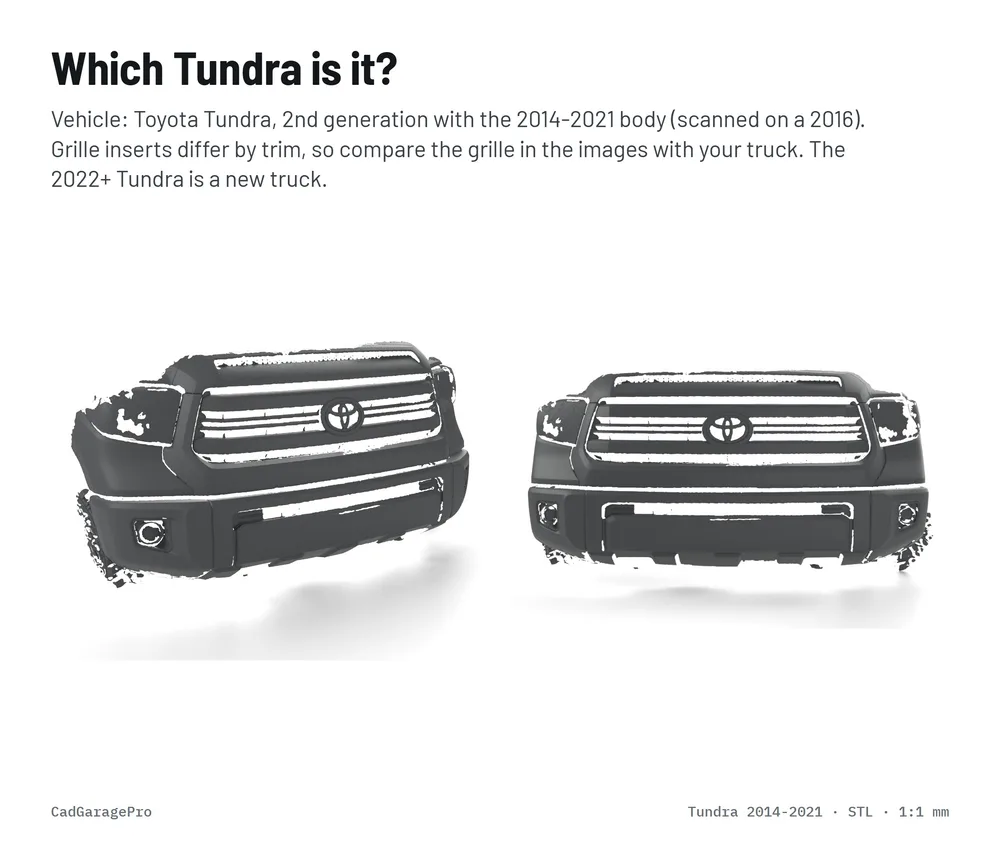

Which Tundra is it?
Vehicle: Toyota Tundra, 2nd generation with the 2014-2021 body (scanned on a 2016). Grille inserts differ by trim, so compare the grille in the images with your truck. The 2022+ Tundra is a new truck.
-

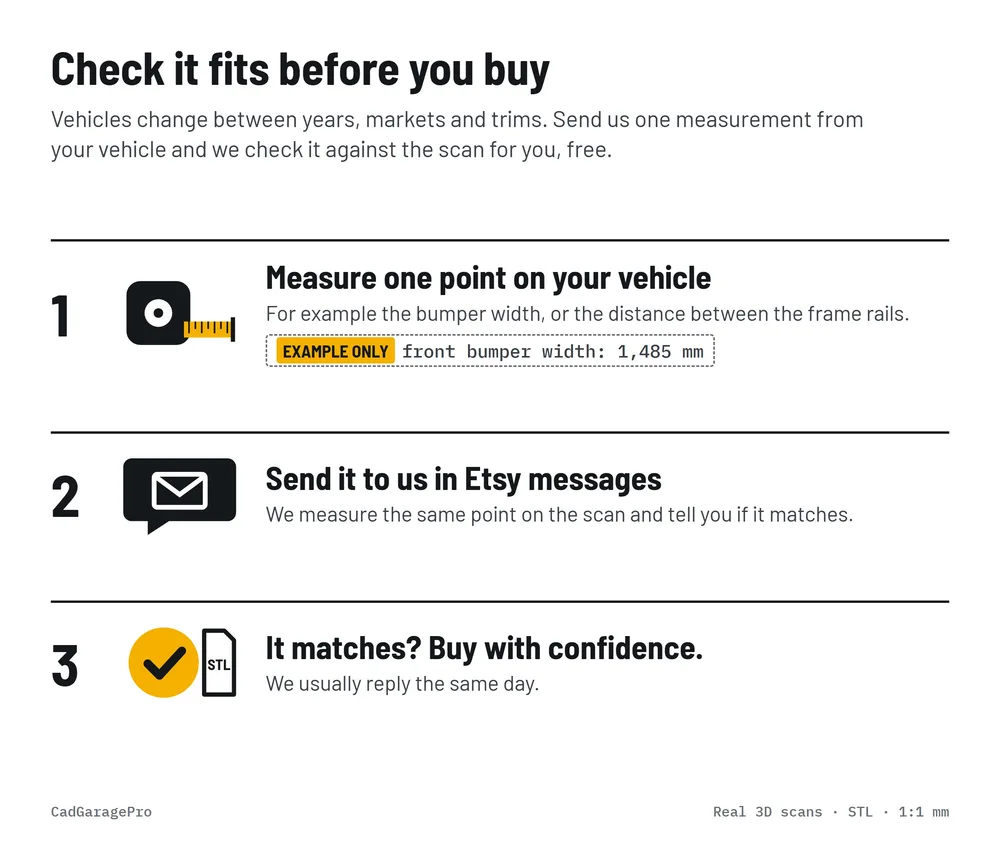

Check it fits before you buy
Questions buyers ask
Is this a real 3D scan or a model made from photos?
It is a 3D scan of a real Toyota Tundra, so the surfaces are at true scale and can be measured. How to tell a real scan from a model made from photos.
Which file formats are included?
Which model years does it fit?
The Toyota Tundra 2nd gen (XK50) for model years 2014-2021. Model years differ between markets for some vehicles; check the generation code if you are outside the market the vehicle was scanned in.
How do I get the files?
On Etsy: the shop sends a download link in Etsy messages after purchase, usually the same day. How delivery works.
What may I do with the files?
You may use the files for your own personal and commercial design and fabrication work, including parts you make and sell. Please do not share, resell or upload the files, or modified copies of them, in whole or in part. The licence of every file.
