Nissan Navara 2015-2020 D23 Front End 3D Model (STL)
Front end 3D model of the 2015-2020 Nissan Navara D23 (NP300) (Double Cab). 8,046,418 measured triangles, STL format, a 402 MB download. Sold on Etsy for $55; the shop sends a download link in Etsy messages, usually the same day.
Notes
- Dimensions in millimeters, measured from the file: its overall extent, along the file's own X, Y and Z axes. The file is at 1:1 scale.
- View A and the other views are renders of the included file, not photos of a finished build. Not to scale.
- Delivered as STL, 402 MB: the shop sends a download link in Etsy messages, usually the same day.
Specifications
| Vehicle | Nissan Navara D23 (NP300) |
|---|---|
| Fits | Double Cab |
| Model years | 2015-2020 |
| What it is | Front end 3D model |
| Formats | STL |
| Files in the download | 1 file: STL (402 MB) |
| Triangles | 8,046,418 |
| Overall size (X × Y × Z, file axes) | 1,601 × 1,851 × 1,482 mm 63.0 × 72.9 × 58.3 in |
| Download size | 402 MB |
What the file covers
In this file
- Front end
- Engine bay
- Wheels
- Underbody

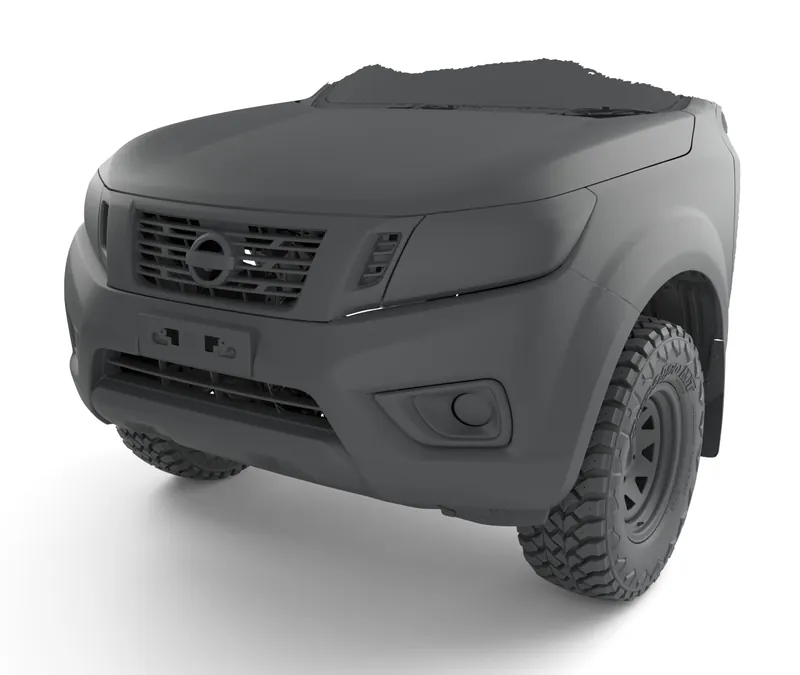

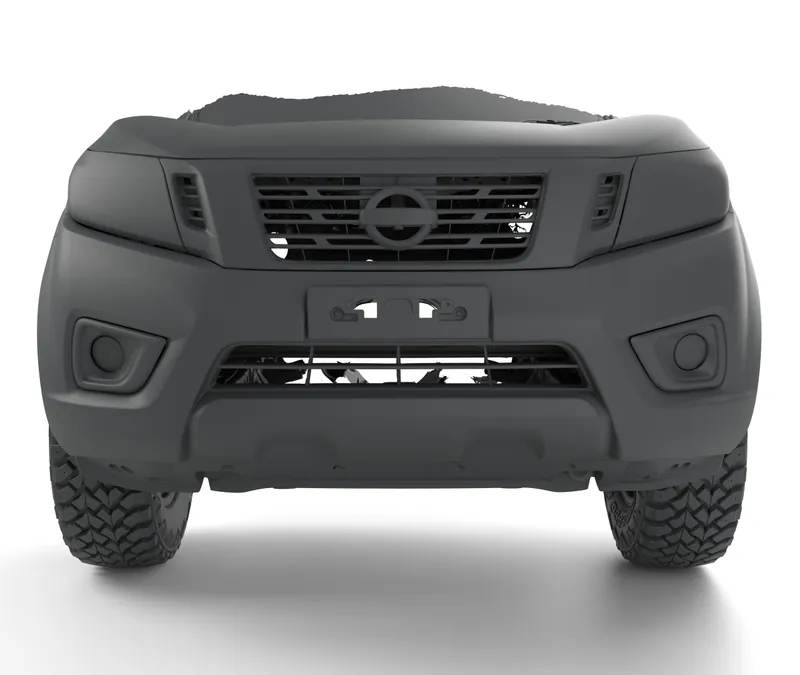

Front end of a 2019 Nissan Navara D23 double cab 4WD with the pre-facelift front: bumper, grille, headlights, bonnet, guards, engine bay, front suspension and wheels, up to the firewall. About 967 separate bodies; the front bumper is 1,841 mm (72.5 in) wide.
Files in the download
| File | Size | Measured extent, X × Y × Z, file axes, mm (in) | Triangles |
|---|---|---|---|
| Front end, engine bay, wheels, underbody (STL) | 402 MB | 1,601 × 1,851 × 1,48263.0 × 72.9 × 58.3 in | 8,046,418 |
Extents are each file's measured size along the axes named, in millimeters at 1:1 scale, with inches below.
What it is for
- Front bumpers and bull bars
- Winch mounts and skid plates
- Fitment checks before you cut metal
Answered with pictures
-

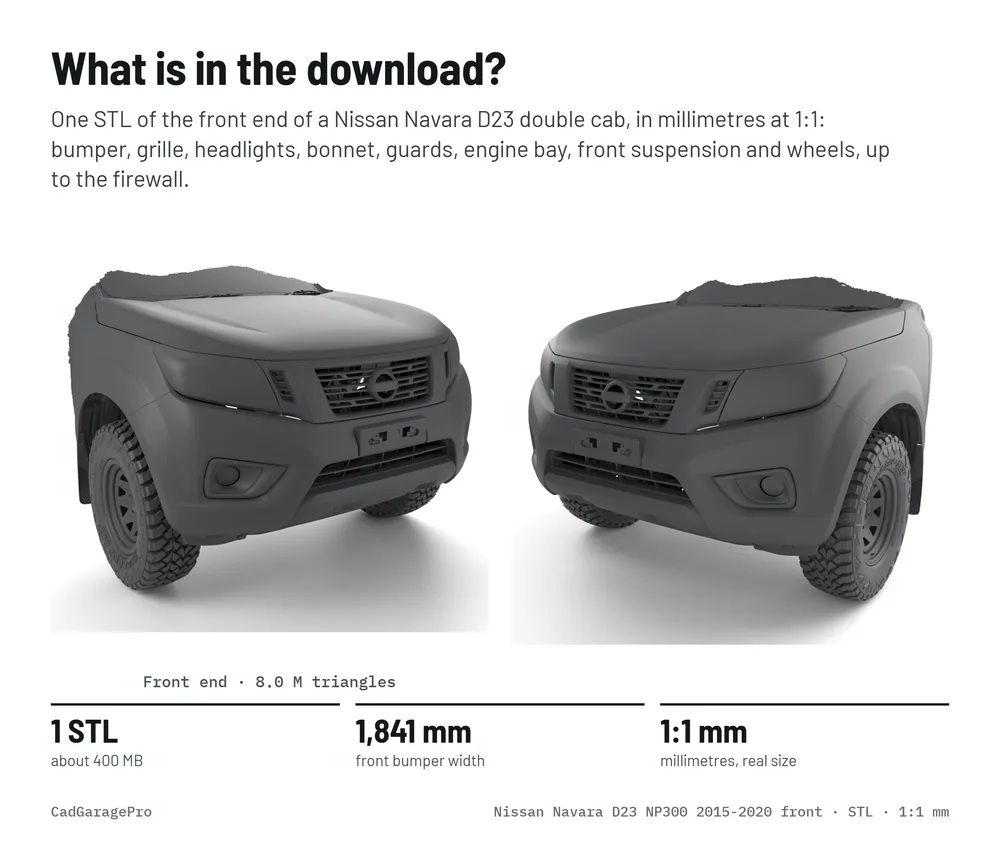

What is in the download?
One STL of the front end of a Nissan Navara D23 double cab, in millimetres at 1:1: bumper, grille, headlights, bonnet, guards, engine bay, front suspension and wheels, up to the firewall.
-

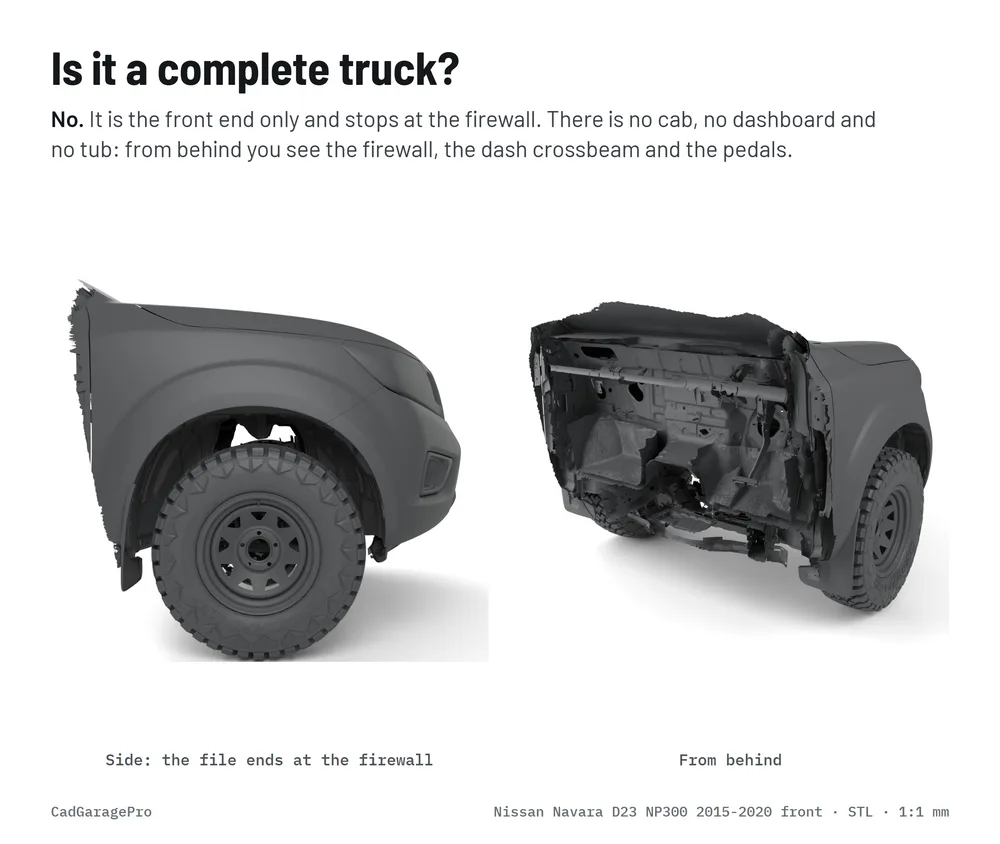

Is it a complete truck?

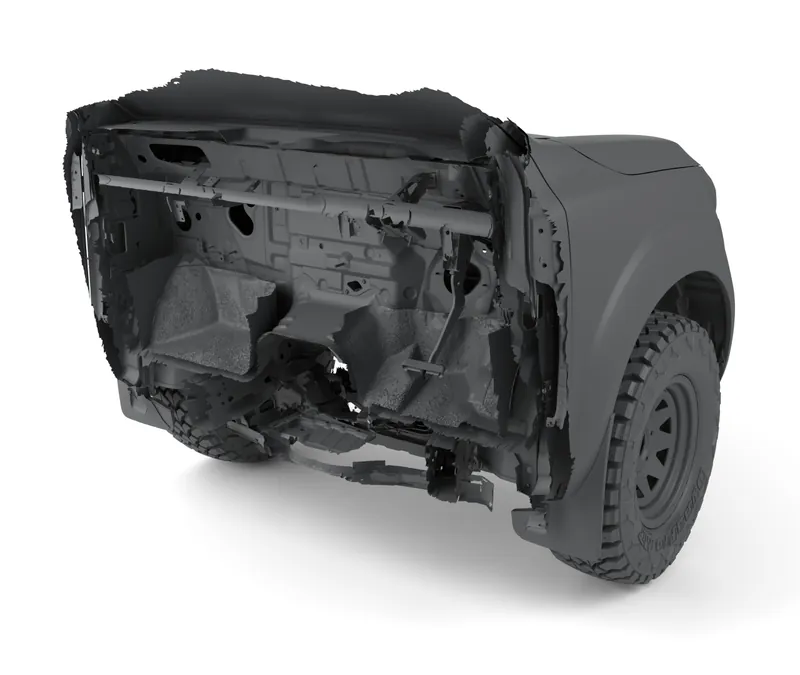

No. It is the front end only and stops at the firewall. There is no cab, no dashboard and no tub: from behind you see the firewall, the dash crossbeam and the pedals.
-

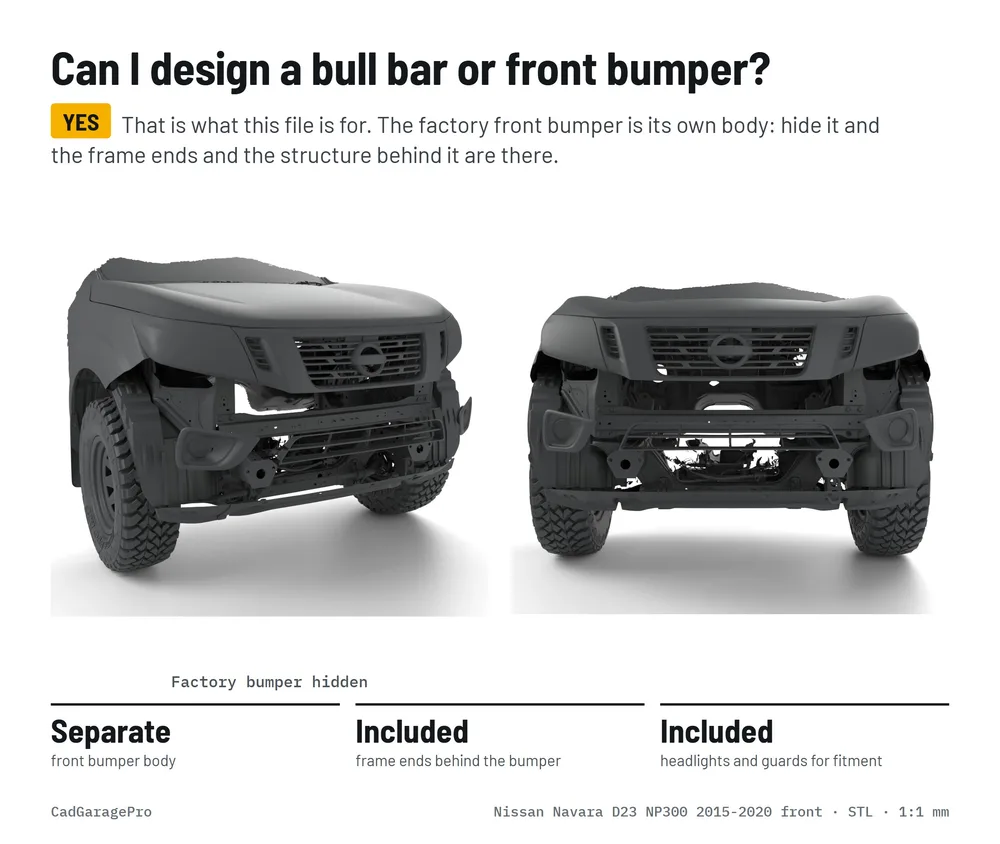

Can I design a bull bar or front bumper?

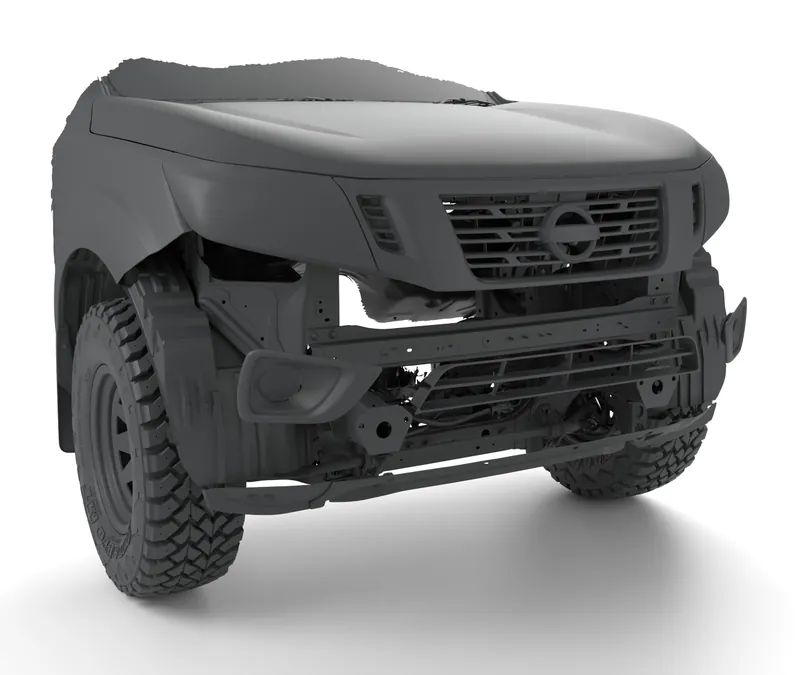

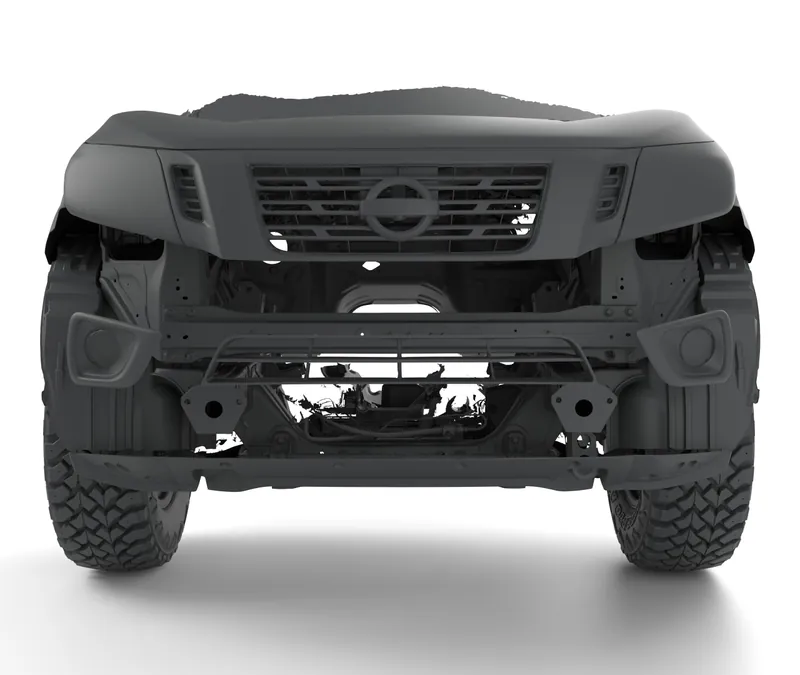

Yes. That is what this file is for. The factory front bumper is its own body: hide it and the frame ends and the structure behind it are there.
-

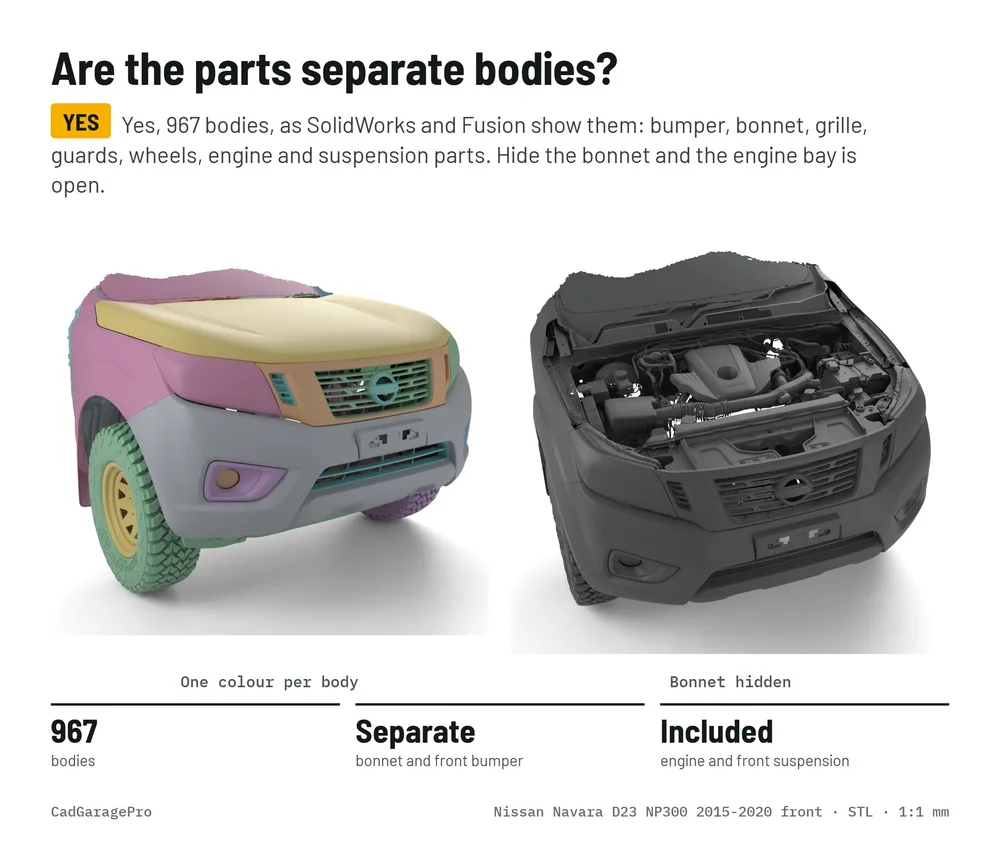

Are the parts separate bodies?

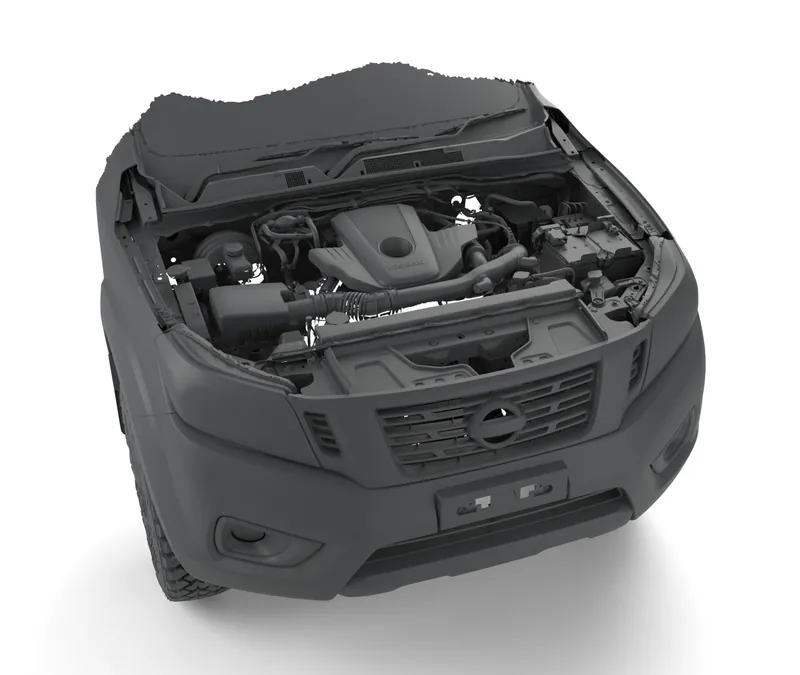

Yes, 967 bodies, as SolidWorks and Fusion show them: bumper, bonnet, grille, guards, wheels, engine and suspension parts. Hide the bonnet and the engine bay is open.
-

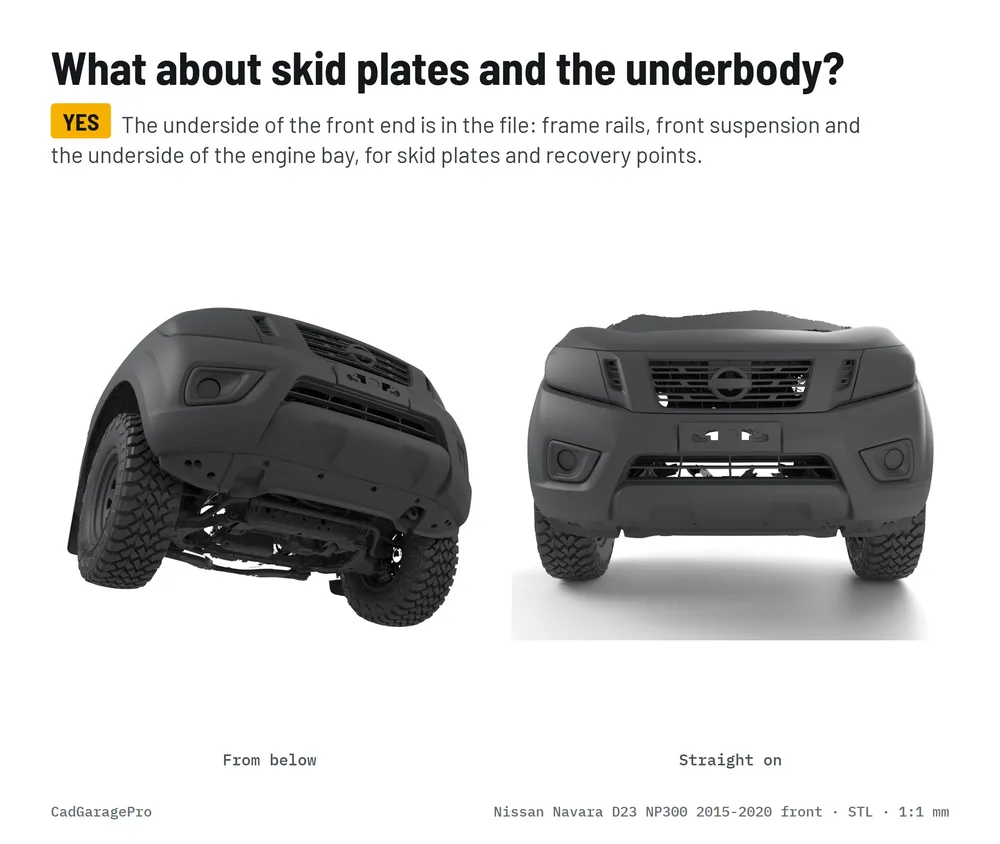

What about skid plates and the underbody?

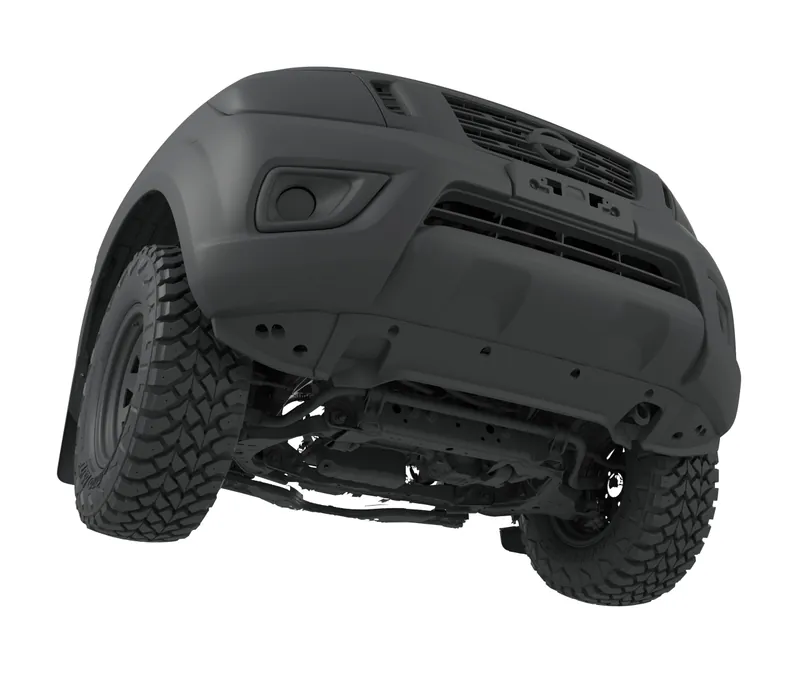

Yes. The underside of the front end is in the file: frame rails, front suspension and the underside of the engine bay, for skid plates and recovery points.
-

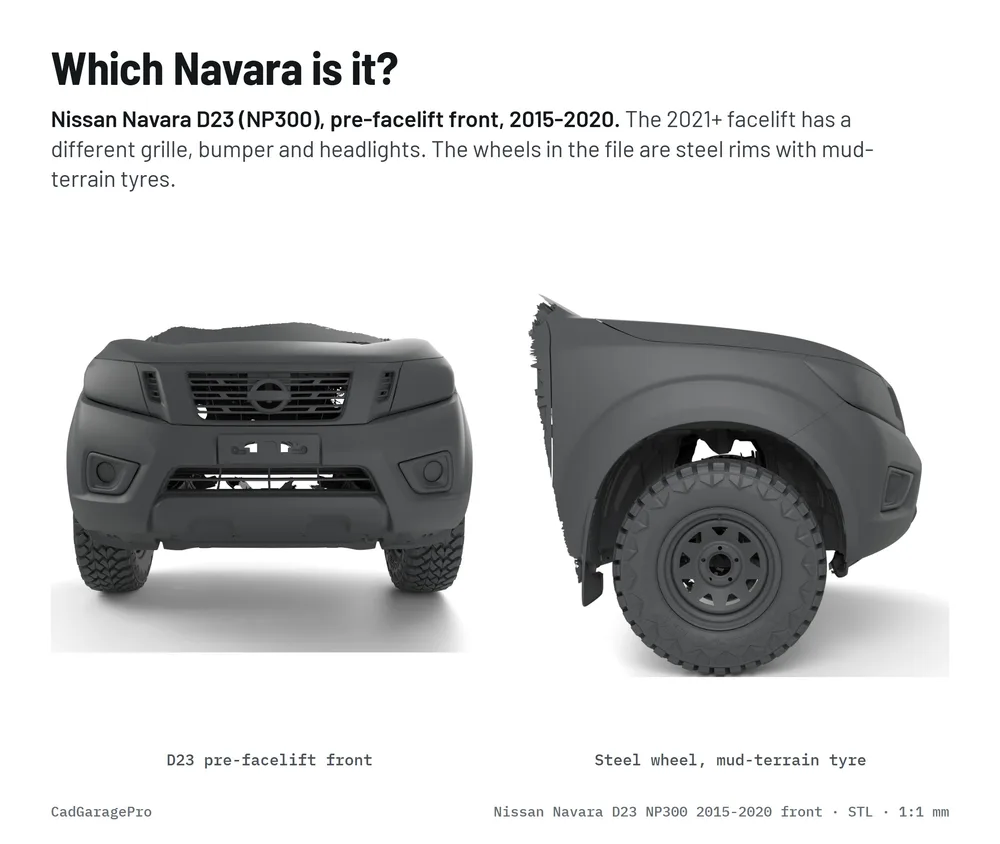

Which Navara is it?

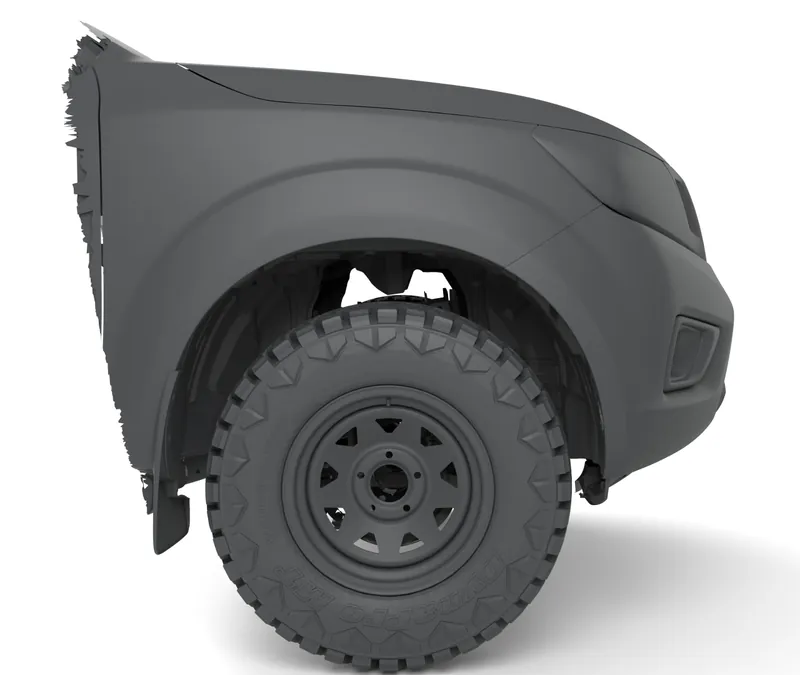

Nissan Navara D23 (NP300), pre-facelift front, 2015-2020. The 2021+ facelift has a different grille, bumper and headlights. The wheels in the file are steel rims with mud-terrain tyres.
-

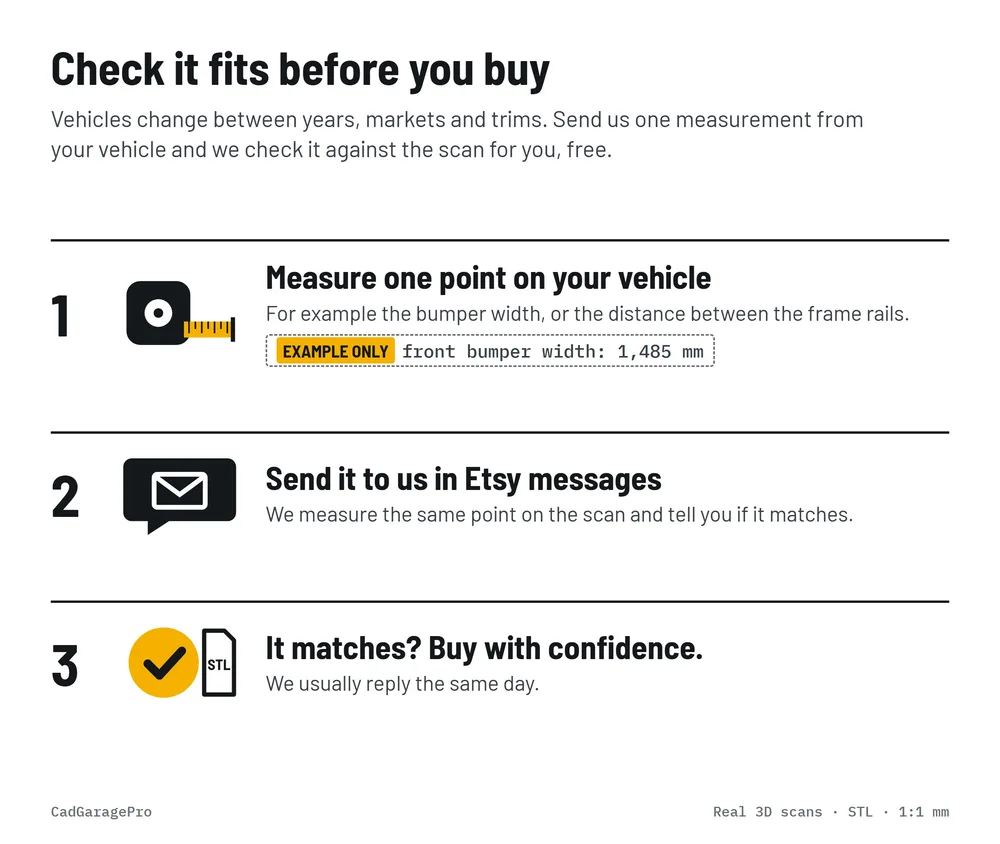

Check it fits before you buy
Vehicles change between years, markets and trims. Send us one measurement from your vehicle and we check it against the file for you, free. Measure one point on your vehicle. For example the bumper width, or the distance between the frame rails. Send it to us in Etsy messages. We measure the same point on the file and tell you if it matches. It matches? Buy with confidence. We usually reply the same day.
Questions buyers ask
Which file formats are included?
STL. STL opens in every major CAD and mesh tool. Which format your workflow needs: STL, STEP or OBJ.
What units is the file in?
Millimeters, at 1:1 scale. The overall size above was measured from the file itself.
Which model years does it fit?
The Nissan Navara D23 (NP300) for model years 2015-2020. Model years differ between markets for some vehicles; check the generation code if you are outside the market these files were made for.
How do I get the files?
Buy it on Etsy. The files are larger than Etsy's 20 MB download limit, so the shop sends a download link in Etsy messages after purchase, usually the same day; it is a straight browser download with no account needed.
What may I do with the file?
You may use the file for your own personal and commercial design and fabrication work, including parts you make and sell. Please do not share, resell or upload the file, or modified copies of it, in whole or in part.
Other full-vehicle scans
Ford Ranger T6 PX MkII
2015-2018 Full Vehicle 3D Scan (STL)

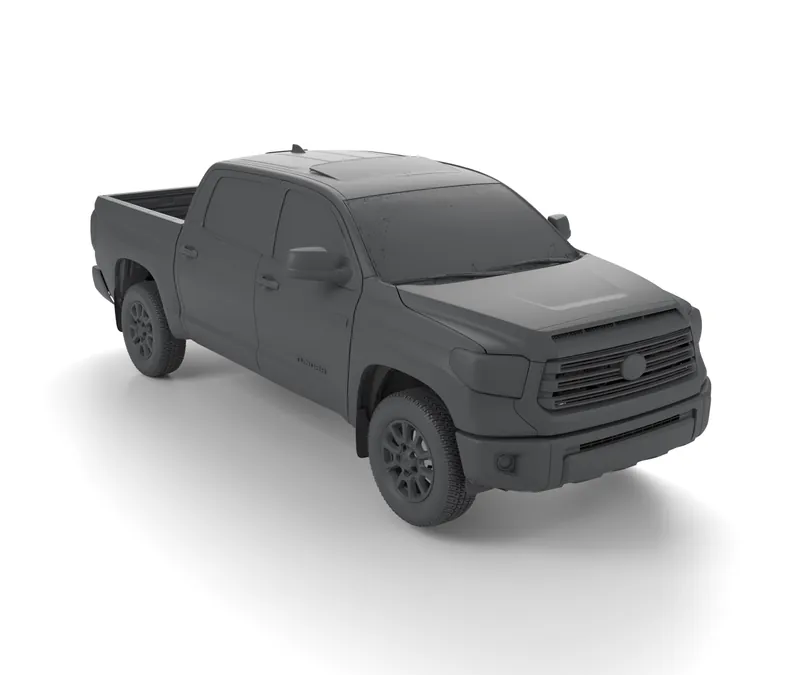

Toyota Tundra 2nd gen (XK50)
2021 Full Vehicle 3D Scan (STL)
Jeep Gladiator JT
2020+ Full Vehicle 3D Scan (STL)

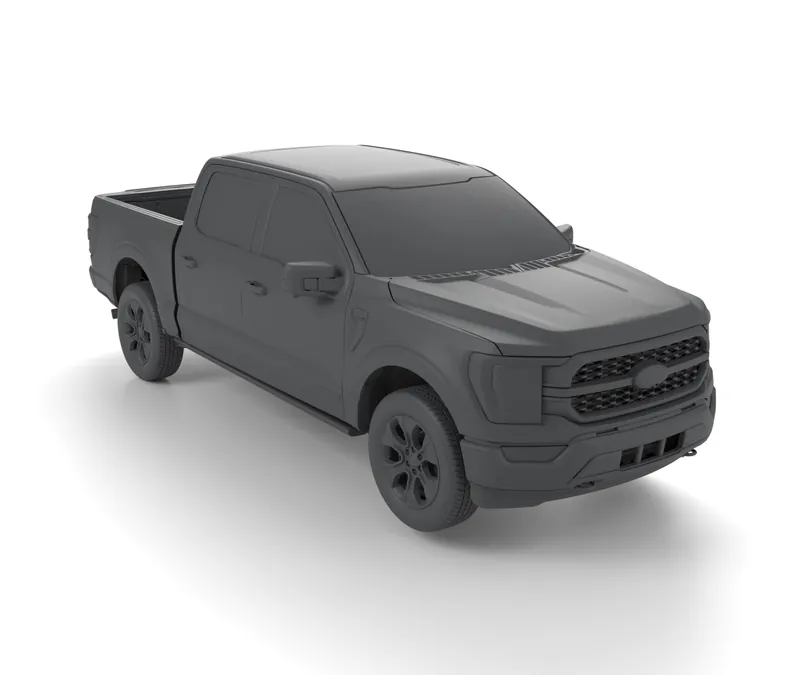

Ford F-150 14th gen
