UAZ Patriot 3163 Front End 3D Scan (STL)
Front end 3D scan of the UAZ Patriot 3163, captured from a real vehicle. 1,265,092 measured triangles, STL format, a 63.3 MB download. Sold on Etsy for $30; the shop sends a download link in Etsy messages, usually the same day.
Notes
- View A and the other views are renders of the included file, not photos of a finished build. Not to scale.
- Delivered as STL, 63.3 MB: the shop sends a download link in Etsy messages, usually the same day.
Specifications measured from the scan file
| Vehicle | UAZ Patriot 3163 |
|---|---|
| What it is | Front end 3D scan |
| Formats | STL |
| Triangles | 1,265,092 |
| Overall size | not measured yet |
| Download size | 63.3 MB |
What the scan covers
front bumper cover, wheel arch liners and beam brackets
Files in the download
| File | Size | Measured extent, mm (in) | Triangles |
|---|---|---|---|
| Front end 3D scan (STL) | 63.3 MB | not measured yet | 1,265,092 |
Measured from our scans
From this scan we can measure, for example:
- The grille, headlight and bonnet edges a bull bar has to clear
We do not print every figure here. Ask us for the measurements you need and we take them from the scan for you, usually the same day; every one of them is in the file itself once you have it.
What it is for
- Front bumpers and bull bars
- Winch mounts and skid plates
- Fitment checks before you cut metal
Guide: Designing a DIY Bumper from a 3D Scan: Scan to Cut List
Answered with pictures
-
What is in the download?

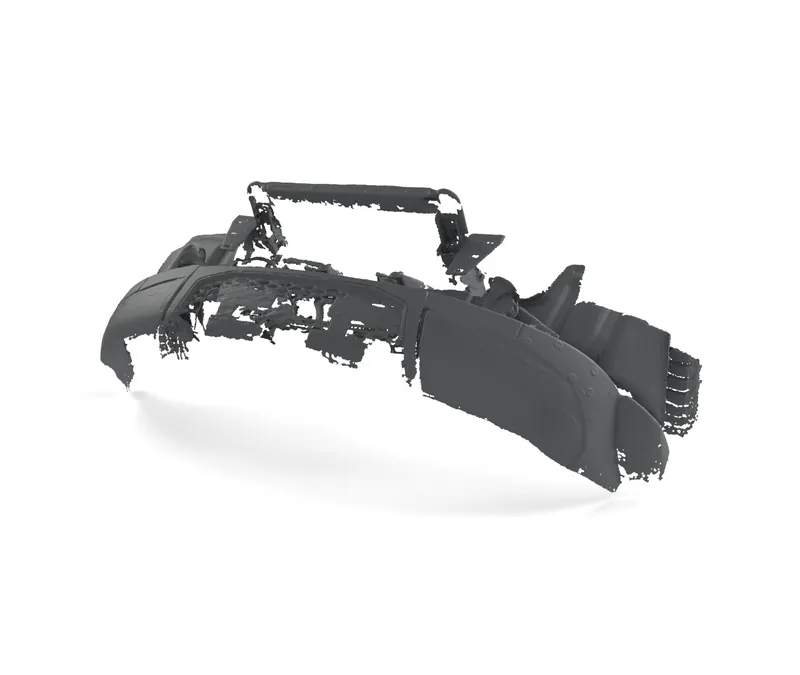

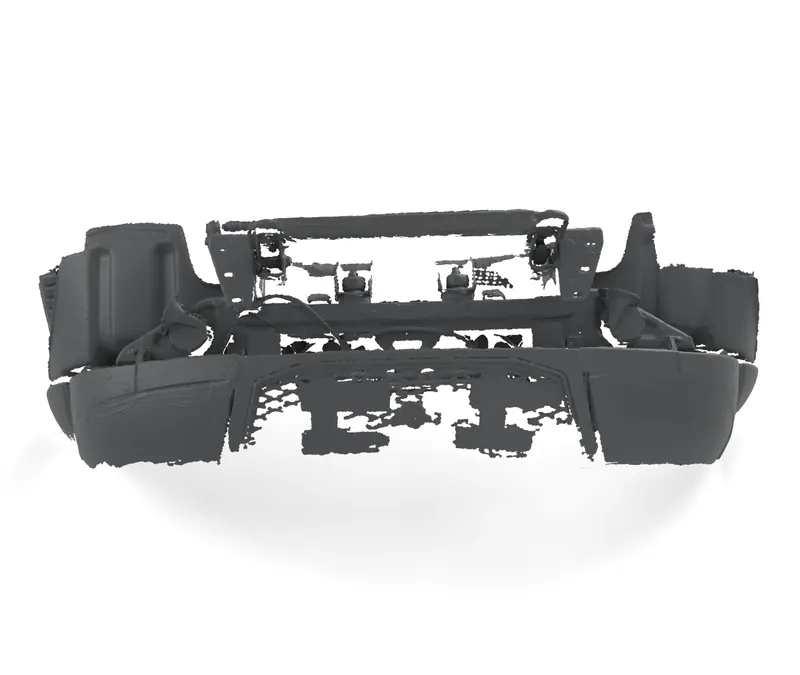

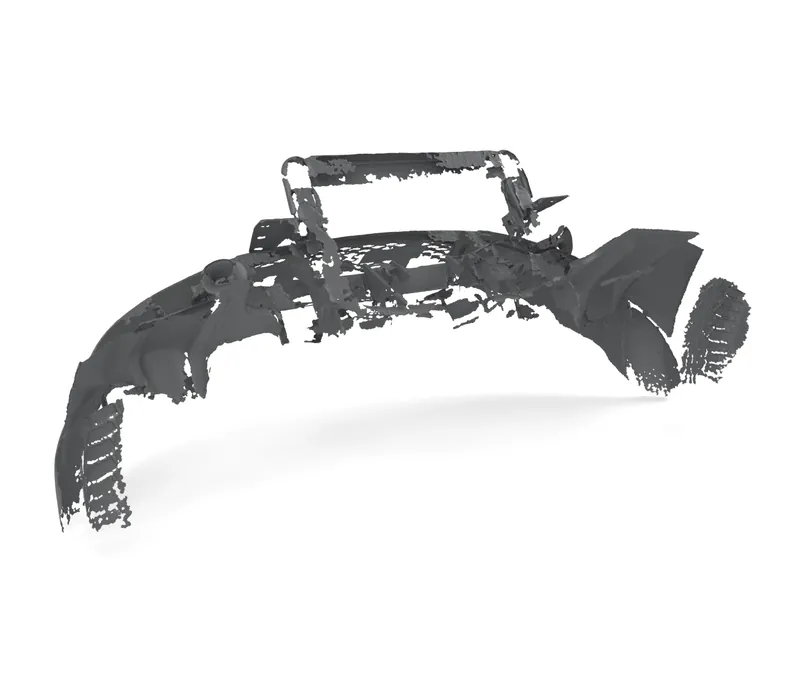

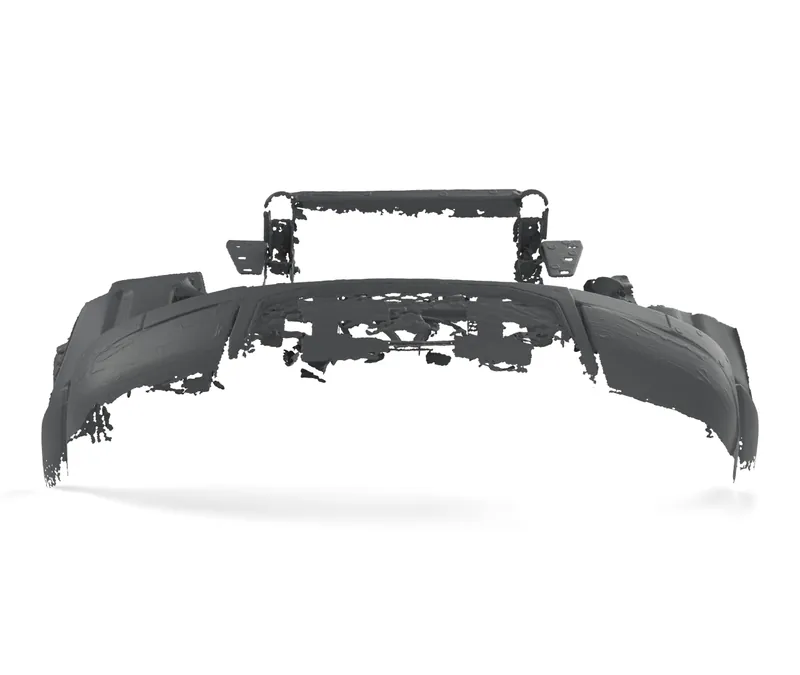

One raw 3D scan of the front of a UAZ Patriot: the plastic front bumper cover, the front wheel arch liners, the brackets of the beam behind the bumper and the front of the tyres. It is a partial scan (no bonnet, grille or lights), about 1,910 mm wide.
-

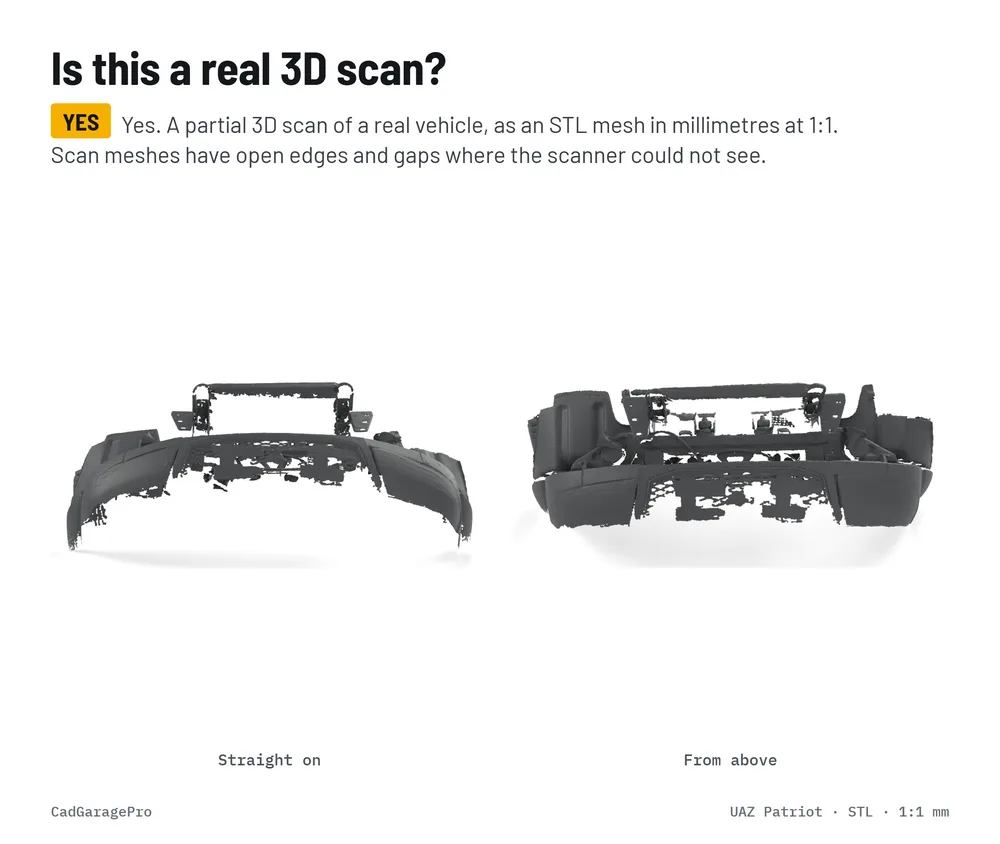

Is this a real 3D scan?
Yes. A partial 3D scan of a real vehicle, as an STL mesh in millimetres at 1:1. Scan meshes have open edges and gaps where the scanner could not see.
-
What can I design on it?

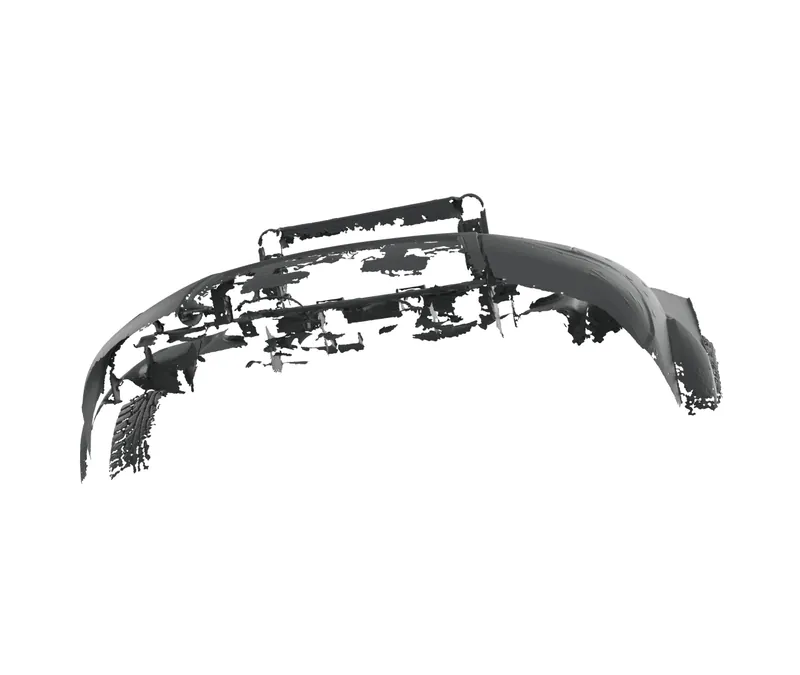

Bumper replacements, bull bars and winch mounts: the scan gives the factory bumper's shape and width, the wheel arch openings and the beam brackets behind it.
-

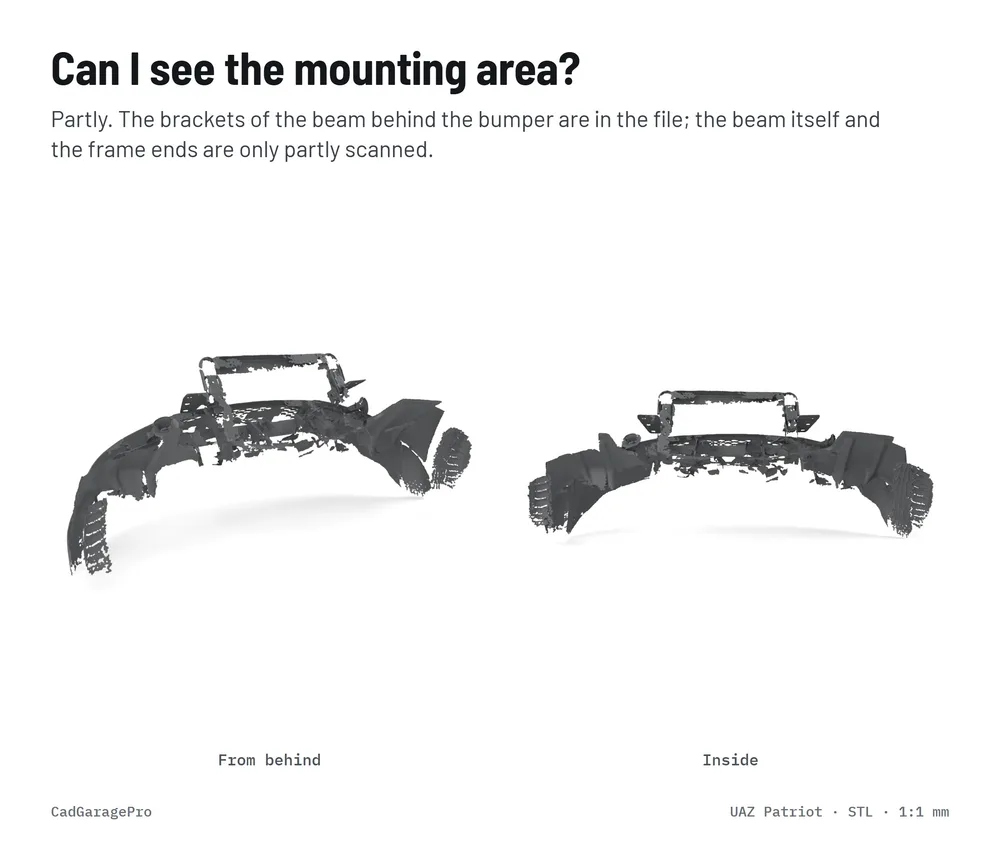

Can I see the mounting area?
Partly. The brackets of the beam behind the bumper are in the file; the beam itself and the frame ends are only partly scanned.
-

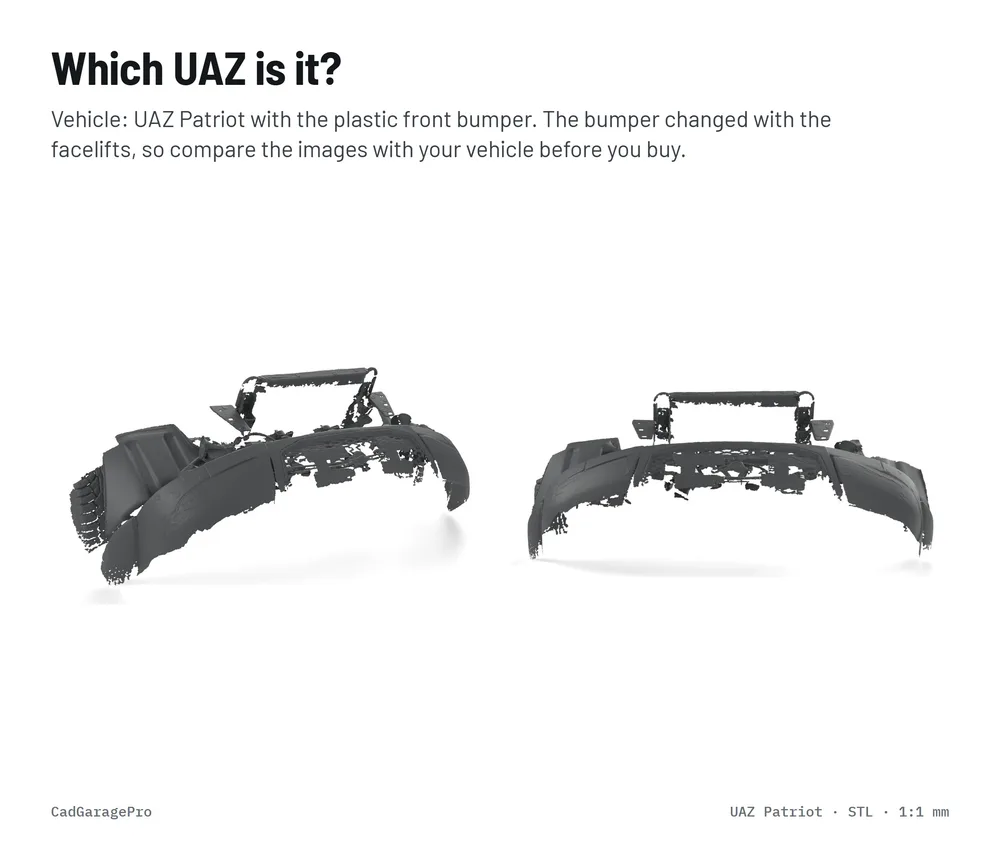

Which UAZ is it?
Vehicle: UAZ Patriot with the plastic front bumper. The bumper changed with the facelifts, so compare the images with your vehicle before you buy.
-

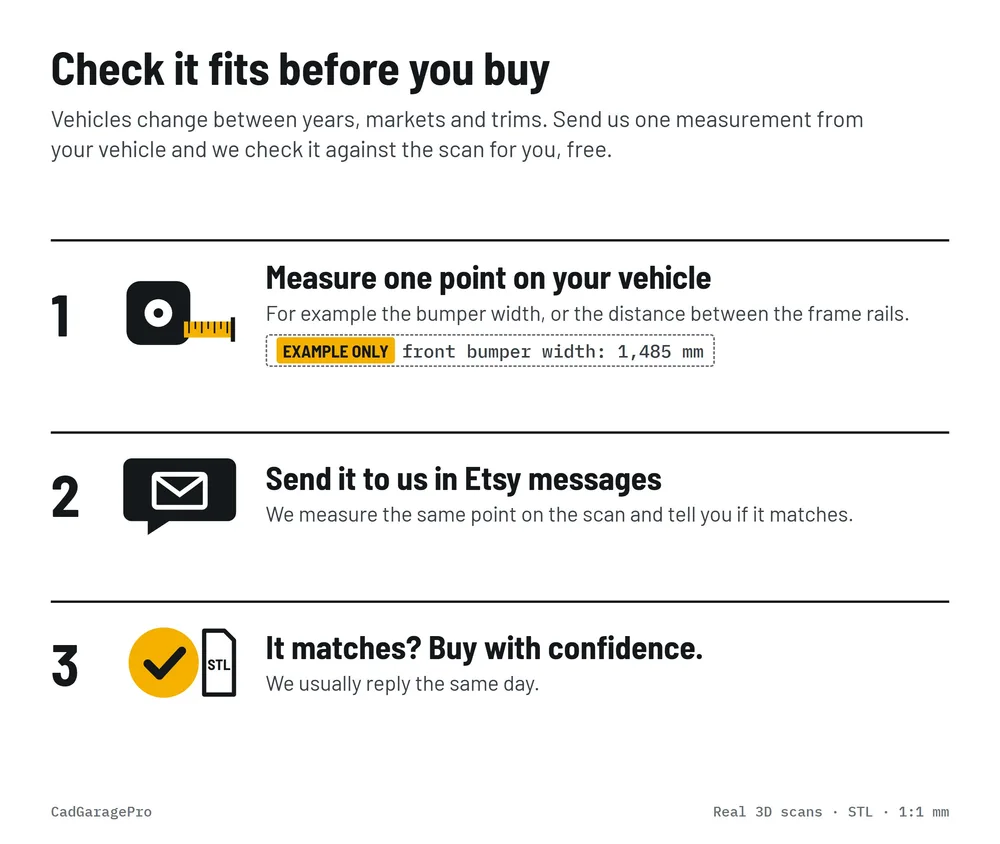

Check it fits before you buy
Questions buyers ask
Is this a real 3D scan or a model made from photos?
It is a 3D scan of a real UAZ Patriot, so the surfaces are at true scale and can be measured. How to tell a real scan from a model made from photos.
Which file formats are included?
How do I get the files?
On Etsy: the shop sends a download link in Etsy messages after purchase, usually the same day. How delivery works.
What may I do with the file?
You may use the file for your own personal and commercial design and fabrication work, including parts you make and sell. Please do not share, resell or upload the file, or modified copies of it, in whole or in part. The licence of every file.
