Toyota Fortuner 2011-2015 1st Gen Full Vehicle 3D Model (STL)
Full vehicle 3D model of the 2011-2015 Toyota Fortuner 1st gen (AN50/AN60). 31,325,506 measured triangles, STL format, a 1,566 MB download. Sold on Etsy for $80; the shop sends a download link in Etsy messages, usually the same day.
Notes
- Dimensions in millimeters, measured from the file: its overall extent, length × width × height. The file is at 1:1 scale.
- Width 2,115 mm (83.2 in) includes the mirrors.

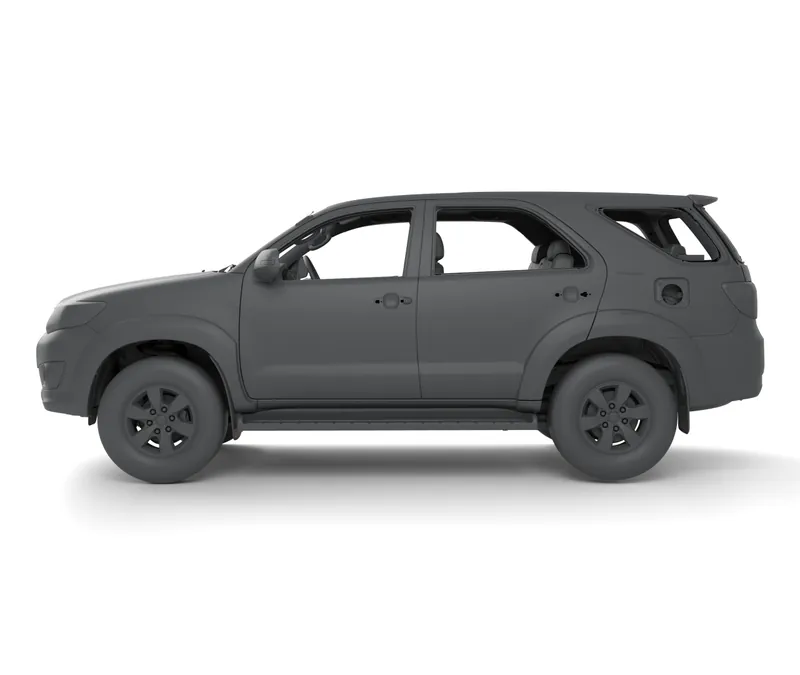

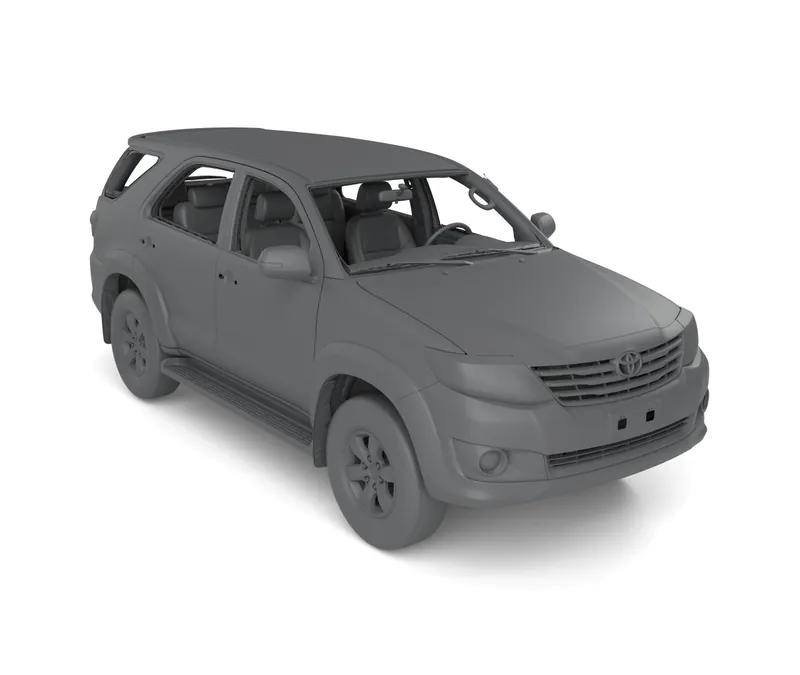

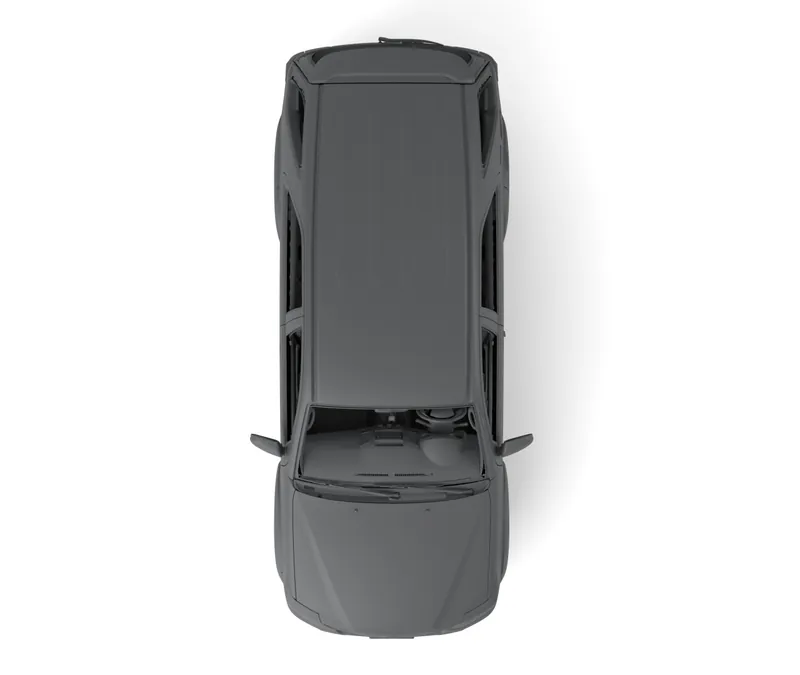

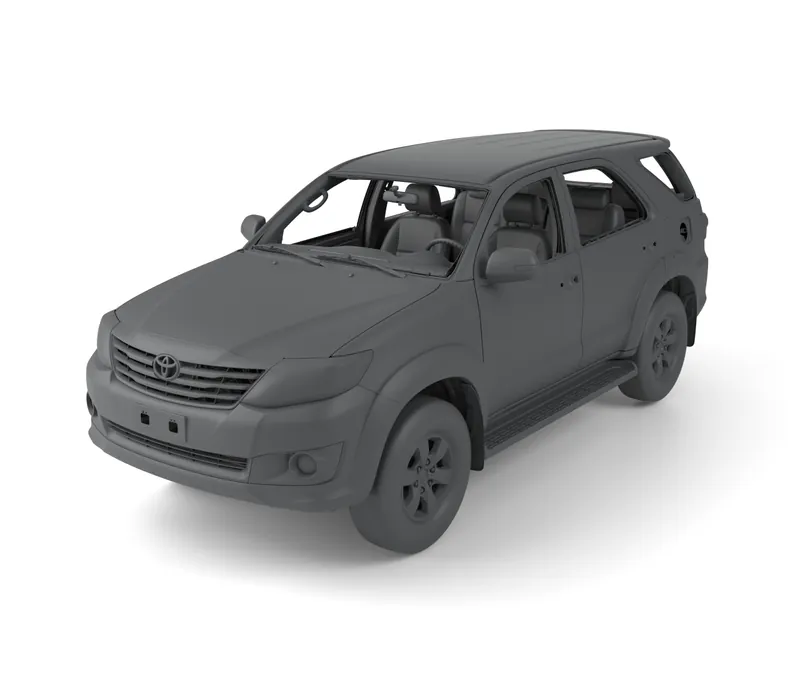

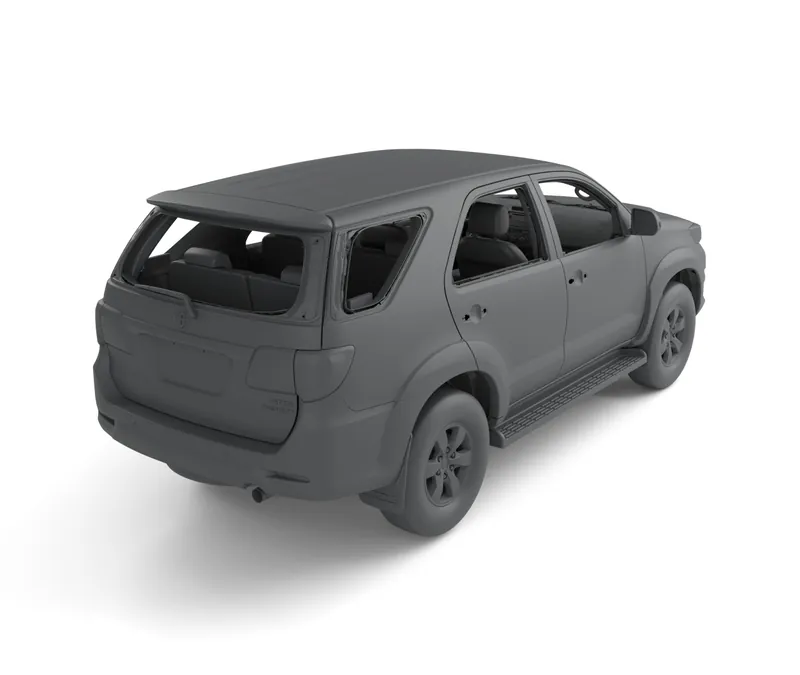

- View A and the other views are renders of the included file, not photos of a finished build. Not to scale.
- Delivered as STL, 1,566 MB: the shop sends a download link in Etsy messages, usually the same day.
Specifications
| Vehicle | Toyota Fortuner 1st gen (AN50/AN60) |
|---|---|
| Model years | 2011-2015 |
| What it is | Full vehicle 3D model |
| Formats | STL |
| Files in the download | 1 file: STL (1,566 MB) |
| Triangles | 31,325,506 |
| Overall size (L × W × H) | 4,704 × 2,115 × 1,816 mm 185.2 × 83.2 × 71.5 in |
| Download size | 1,566 MB |
What the file covers
In this file
- Exterior
- Cabin interior
- Underbody
- Wheels
- Doors
- Mirrors
Complete Toyota Fortuner 4x4, 1st generation with the 2011-2015 front: exterior with wheels, cabin interior (dashboard, steering wheel, front and rear seats, door trims) and the underbody with the frame. There is no window glass, so the cabin is open to view. About 6,900 separate bodies.
Files in the download
| File | Size | Measured extent, L × W × H, mm (in) | Triangles |
|---|---|---|---|
| Exterior, cabin interior, underbody, wheels (STL) | 1,566 MB | 4,704 × 2,115 × 1,816185.2 × 83.2 × 71.5 in | 31,325,506 |
Extents are length × width × height of each file as measured, in millimeters at 1:1 scale, with inches below.
Measured from our files
Overall size of the file, as measured: 4,704 × 2,115 × 1,816 mm (185.2 × 83.2 × 71.5 in).
From this file we can also measure, for example:
- Frame-rail width and underbody clearances seen from below, for sliders and skid plates
- Roof width and length, and the rail or gutter line, for a roof rack
- Wheel arch openings and tyre clearance
- Dash, console and seat-base sizes inside the cabin
We do not print every figure here. Ask us for the measurements you need and we take them from the file for you, usually the same day; every one of them is in the file itself once you have it.
Also sold as
The same body is sold under these names in other markets: Toyota Hilux SW4 (South America).
What it is for
- Bumpers, with the frame and suspension in the file
- Rock sliders, skid plates and underbody armour
- Consoles, panels and mounts inside the cabin
- Fitment checks before you cut metal
Every file for this job: Truck and 4x4 3D scans and models for roof rack design
Answered with pictures
-

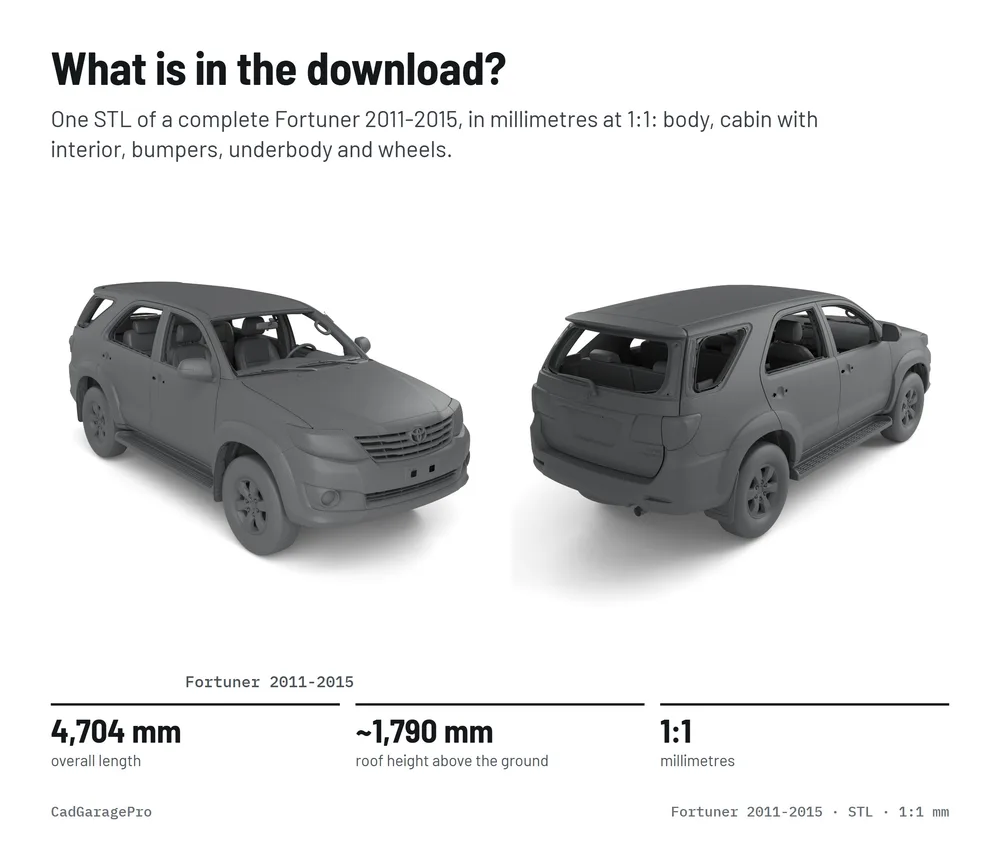

What is in the download?
One STL of a complete Fortuner 2011-2015, in millimetres at 1:1: body, cabin with interior, bumpers, underbody and wheels.
-

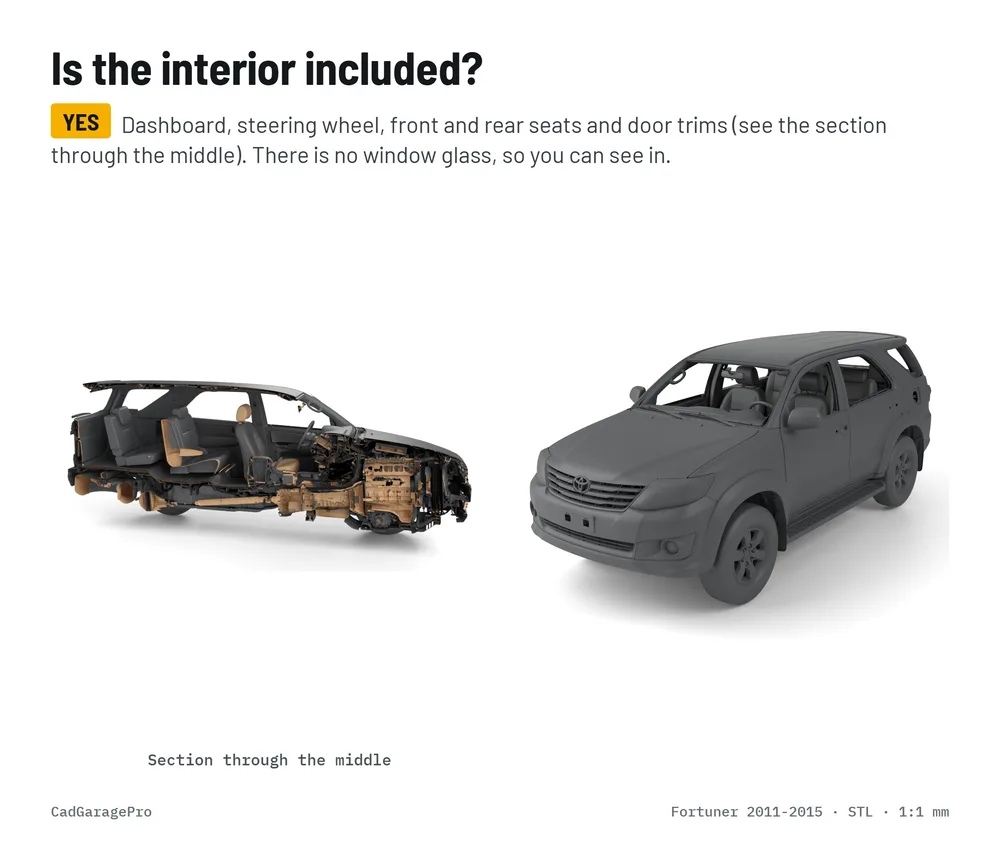

Is the interior included?

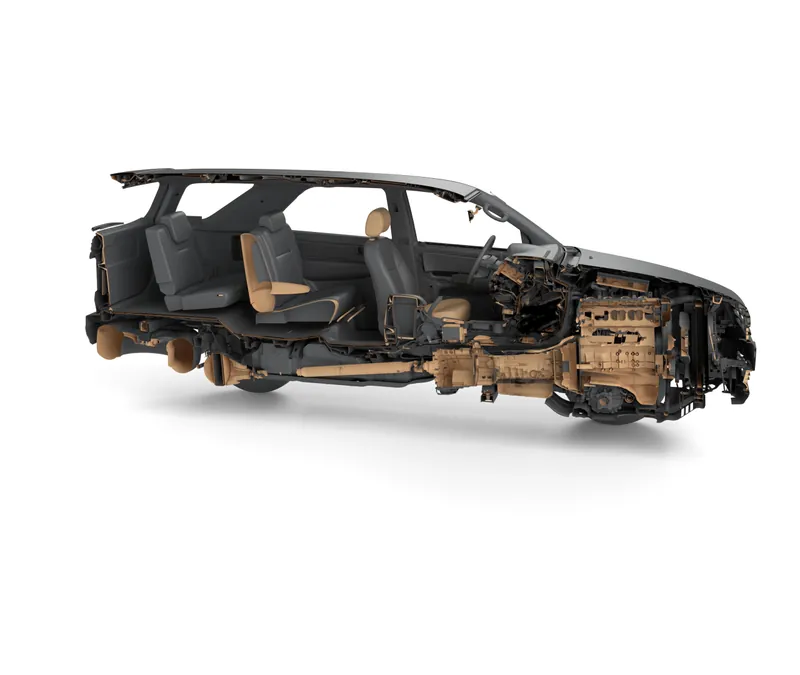

Yes. Dashboard, steering wheel, front and rear seats and door trims (see the section through the middle). There is no window glass, so you can see in.
-

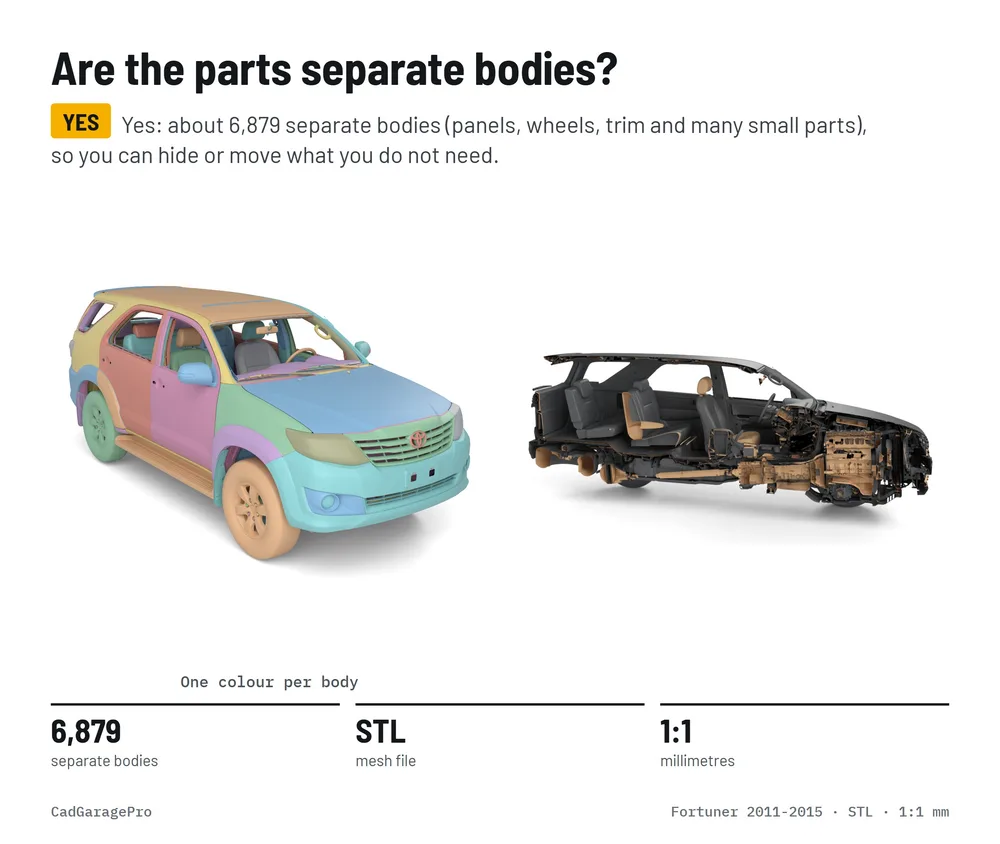

Are the parts separate bodies?
Yes: about 6,879 separate bodies (panels, wheels, trim and many small parts), so you can hide or move what you do not need.
-

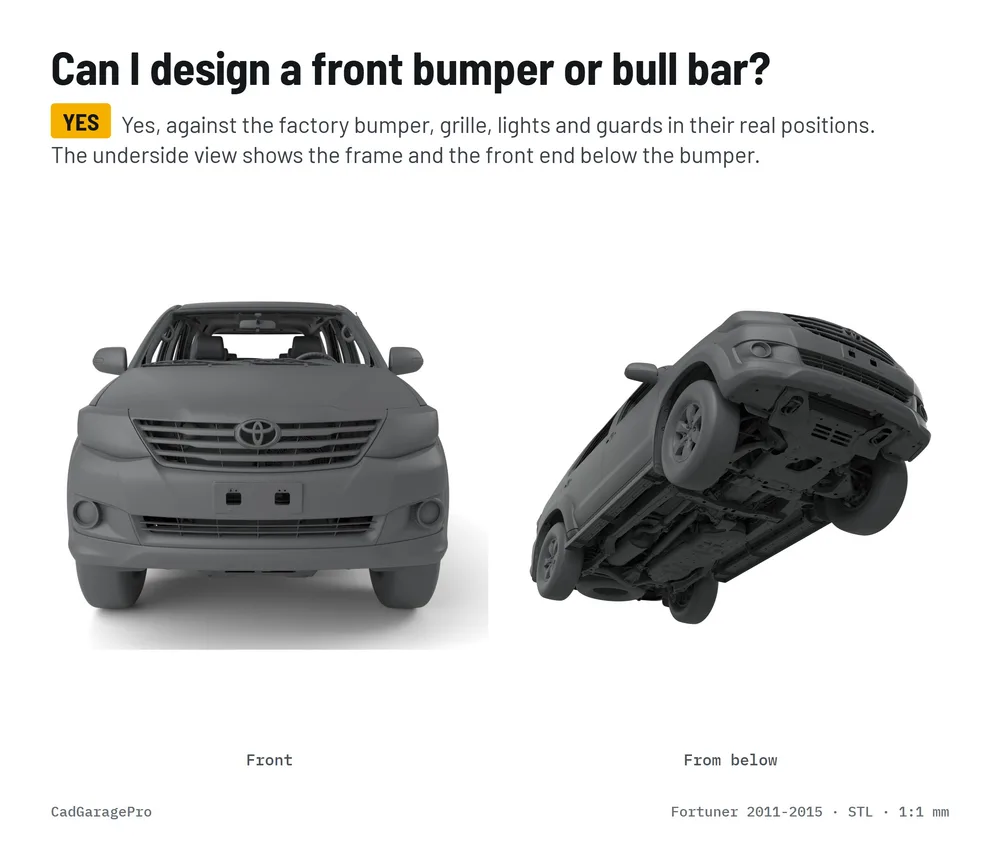

Can I design a front bumper or bull bar?

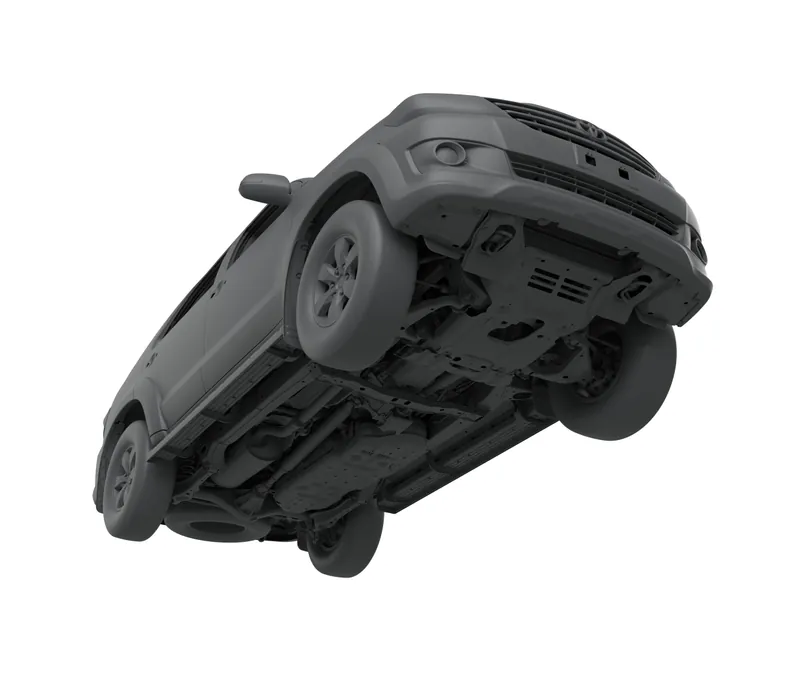

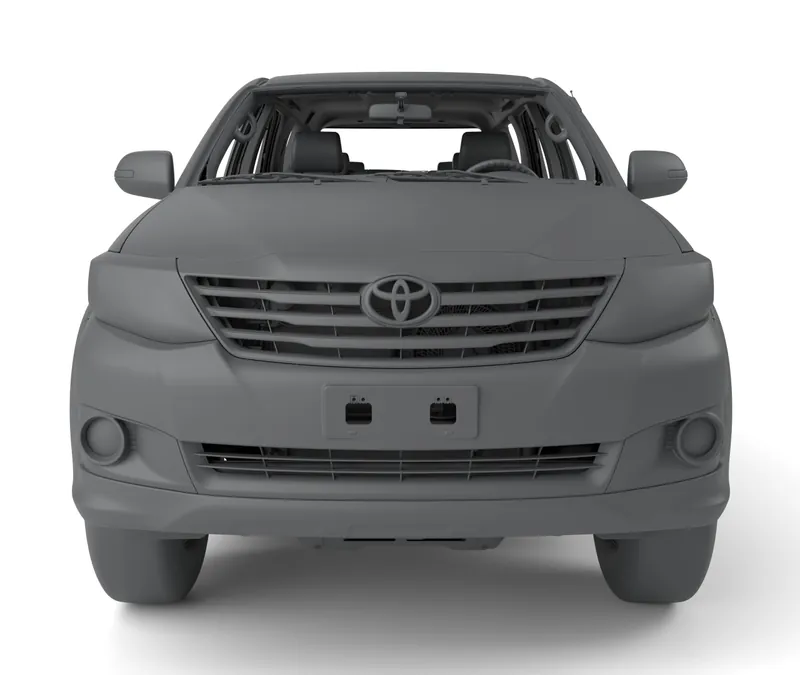

Yes, against the factory bumper, grille, lights and guards in their real positions. The underside view shows the frame and the front end below the bumper.
-

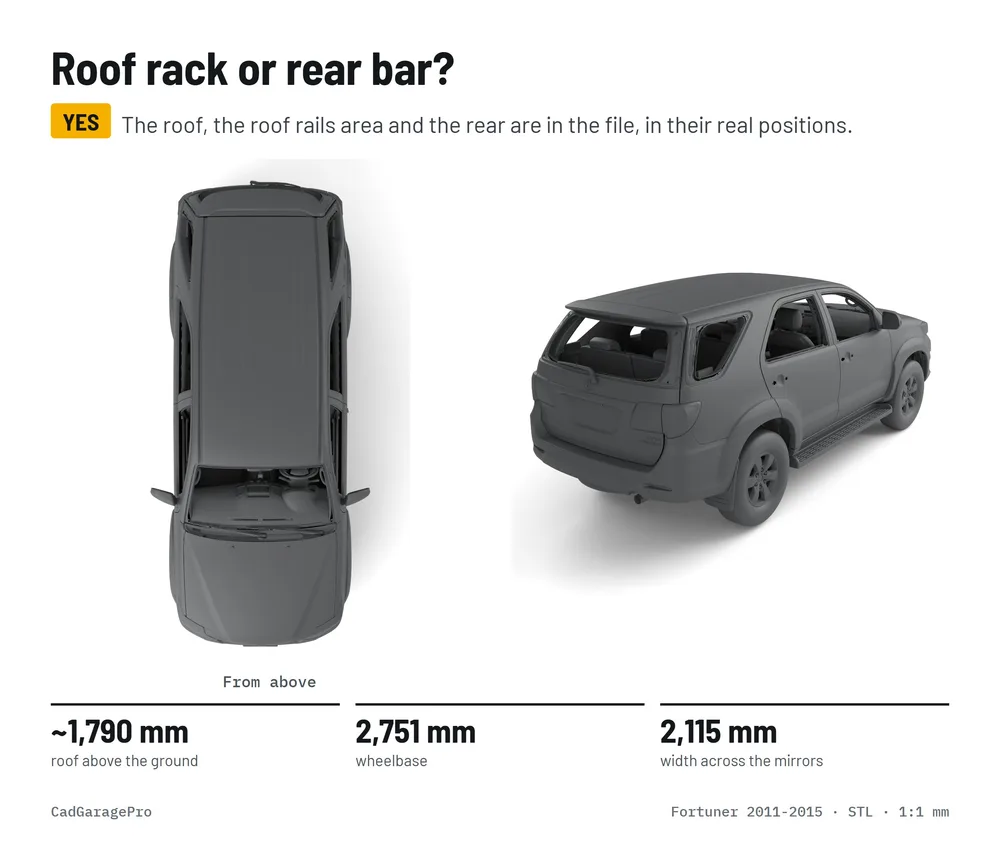

Roof rack or rear bar?
Yes. The roof, the roof rails area and the rear are in the file, in their real positions.
-

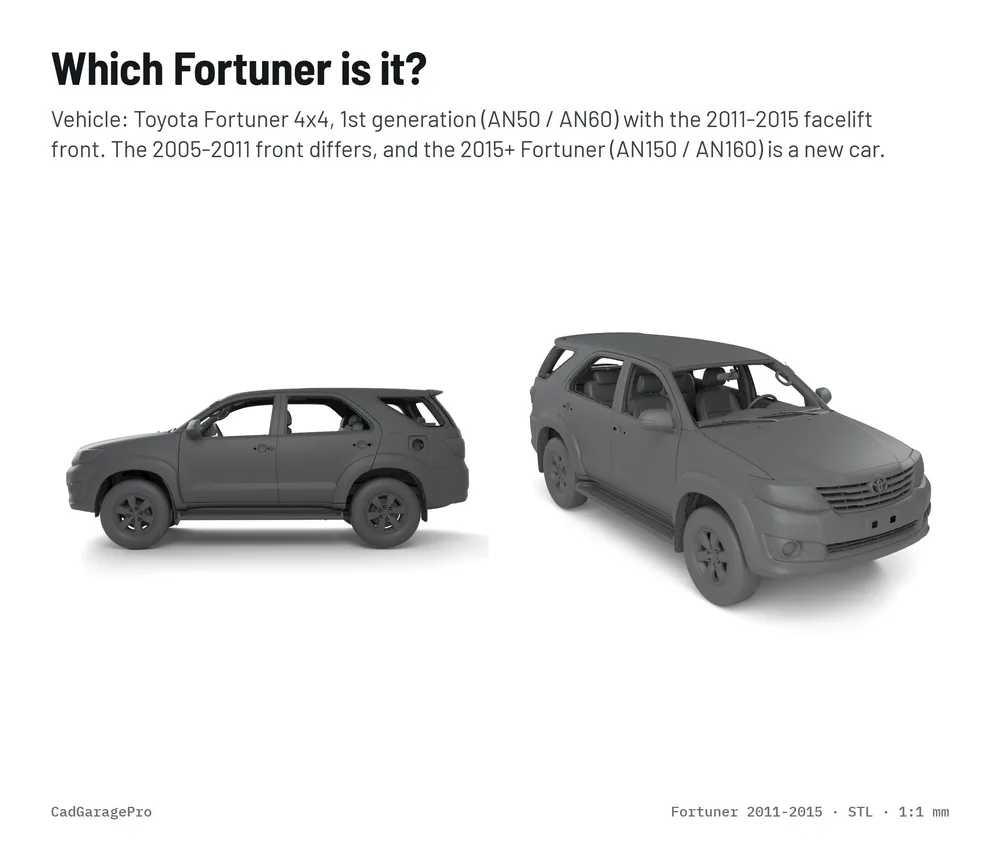

Which Fortuner is it?
Vehicle: Toyota Fortuner 4x4, 1st generation (AN50 / AN60) with the 2011-2015 facelift front. The 2005-2011 front differs, and the 2015+ Fortuner (AN150 / AN160) is a new car.
-

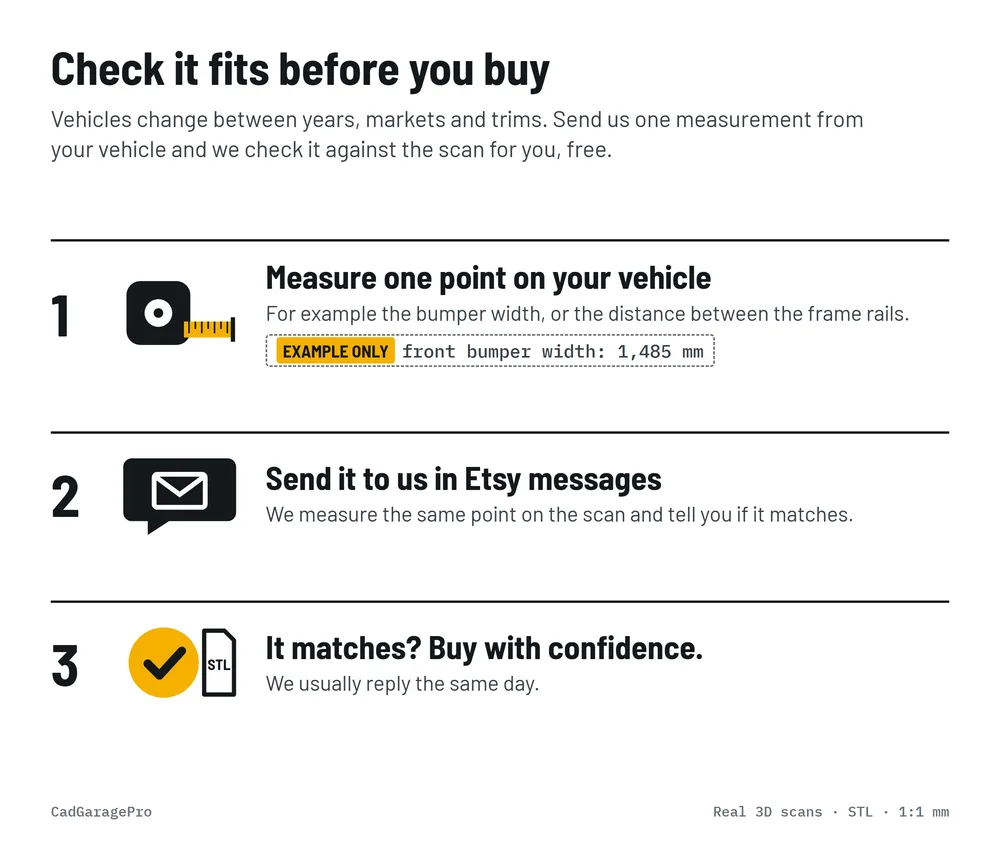

Check it fits before you buy
Vehicles change between years, markets and trims. Send us one measurement from your vehicle and we check it against the file for you, free. How the free fit check works.
Questions buyers ask
Which file formats are included?
What units is the file in?
Millimeters, at 1:1 scale. Units and formats of our files.
Which model years does it fit?
The Toyota Fortuner 1st gen (AN50/AN60) for model years 2011-2015. Model years differ between markets for some vehicles; check the generation code if you are outside the market these files were made for.
How do I get the files?
On Etsy: the shop sends a download link in Etsy messages after purchase, usually the same day. How delivery works.
What may I do with the file?
You may use the file for your own personal and commercial design and fabrication work, including parts you make and sell. Please do not share, resell or upload the file, or modified copies of it, in whole or in part. The licence of every file.
Other full-vehicle scans

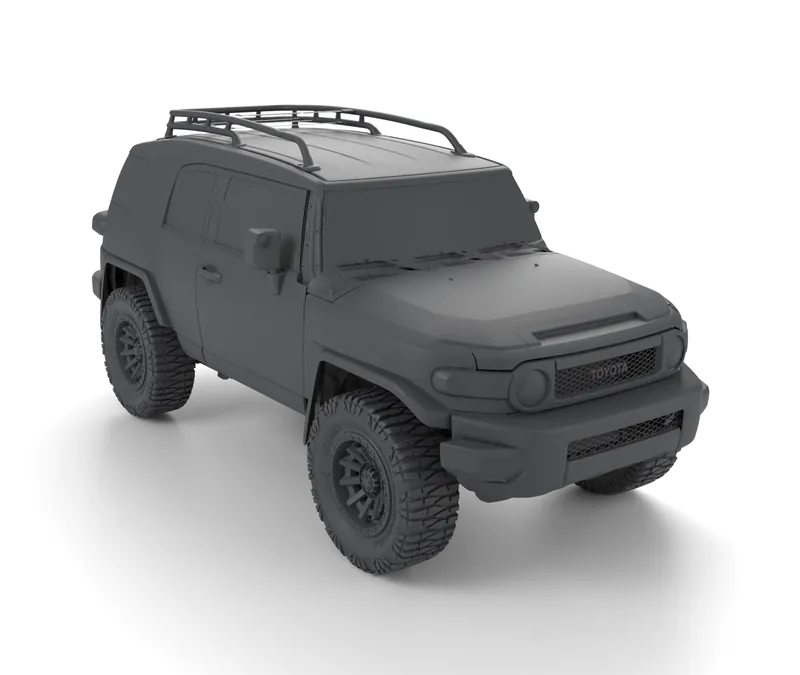

Toyota FJ Cruiser
2006-2016 Full Vehicle 3D Scan (STL)

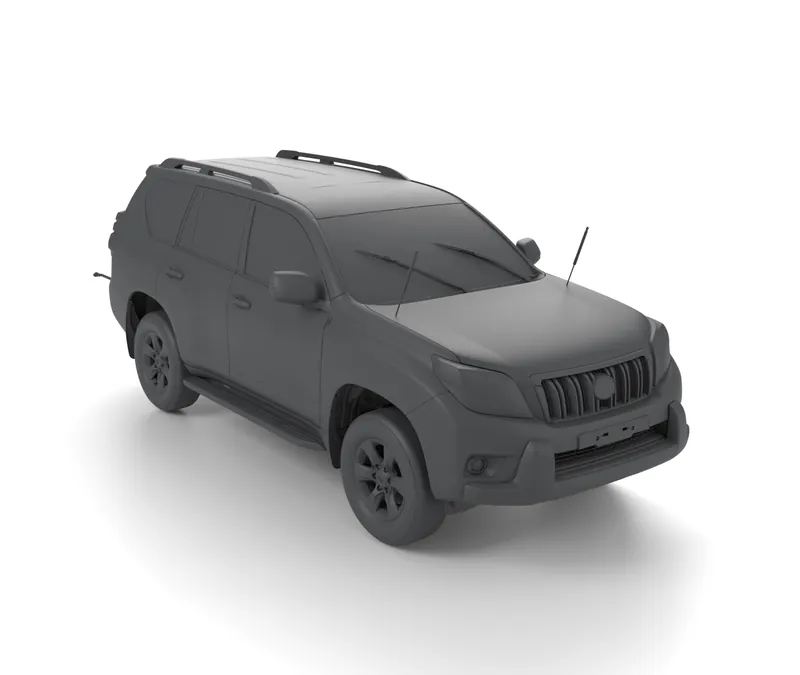

Toyota Land Cruiser Prado 150 (J150)
2009-2013 Full Vehicle 3D Scan (STL)
Toyota Land Cruiser 200 (J200)
2012-2015 Full Vehicle 3D Scan (STL)

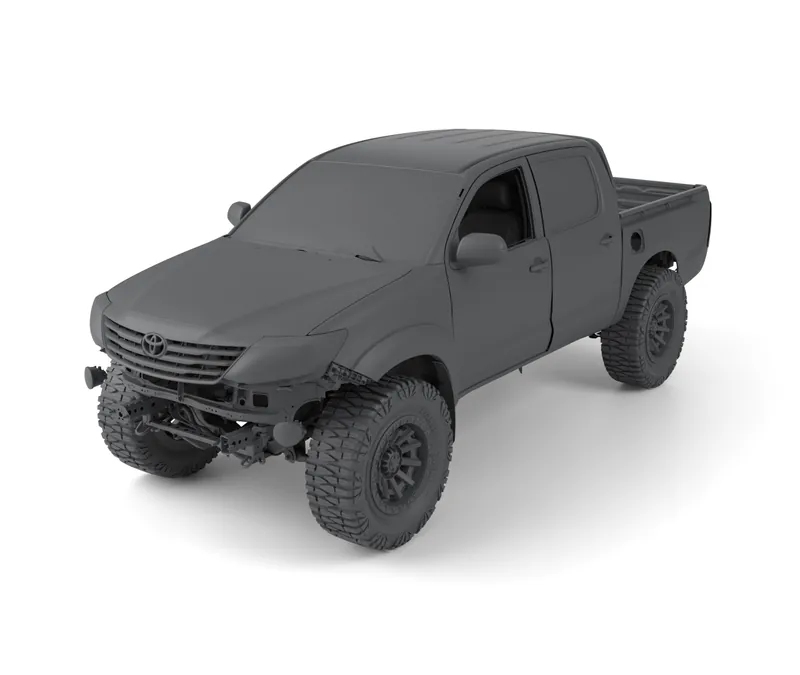

Toyota Hilux N70 facelift (Vigo Champ)
